4-Port Secure Pro KM Switch with KB/Mouse USB emulation and CAC port
SKMN-4S-P
Save $73.00
SKMN-4S-P: Ultra-Secure KM Switching
The SKMN-4S-P is a 4-port Secure USB KM switch with a dedicated CAC port. It allows users to control keyboard-mouse functions of connected systems using a single USB keyboard-mouse combo.The SKMN-4S-P allows users to control KM (Keyboard and Mouse) operation on up to four computers. It features mechanical, electrical and optical signal isolation to prevent hacking and data leakage in environments where security is paramount.
With the SKMN-4S-P, all data relays are controlled by inverted signals, shielding connections from outside intrusion by forcing them each to work one at a time. Each port uses its own isolated data channel and each unit features non-reprogrammable ROM to better protect the switch's functions. Better yet, the SKMN-4S-P offers the highest security when accessing classified and public networks over the internet through these isolated connections. By isolating connections between networks, the SKMN-4S-P ensures no data is leaked between secure ports and the outside world.
The SKMN-4S-P has clearly marked front-panel buttons for controlling the device, so securely switching between sources is always simple. For high-grade secure switching made easy, look no further than the SKMN-4S-P.

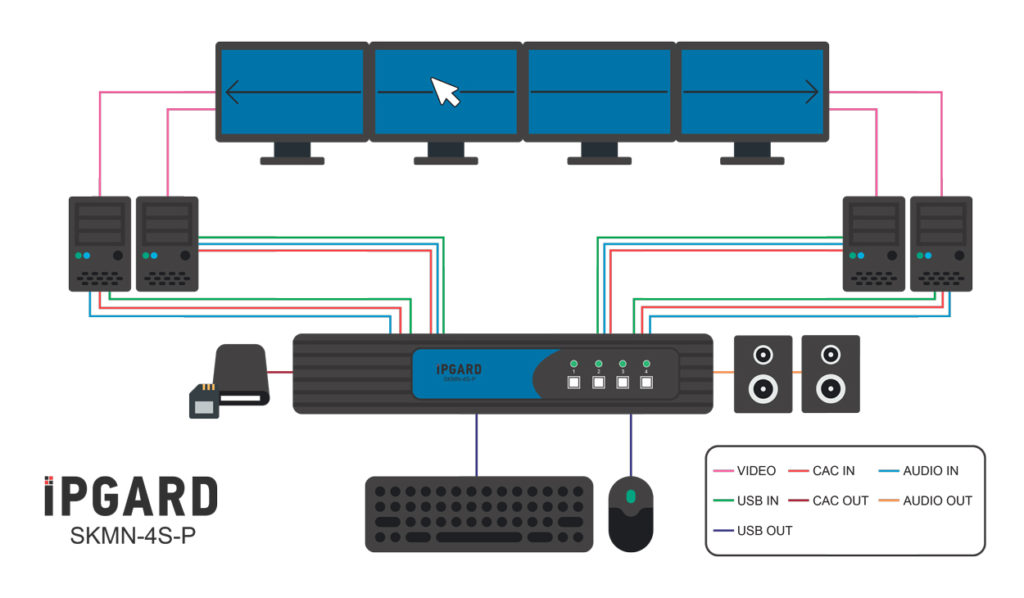

SKMN-4S-P Application Diagram
Key Features
- Seamless Mouse Cursor & Keyboard Switching
- Supports Windows, Mac and Linux OS
- Supports Balanced speakers output and switching
- Advanced configurable CAC port
- Front panel tactile buttons with LED indicator
- Secure Keyboard & Mouse Emulation
- External power supply - Level VI efficiency
Security Features
- Non-reprogrammable ROM
- Active Anti-tamper switches
- Long-life internal Anti-tampering battery
- External tamper-evident seals
- Keyboard, Mouse and Video emulation
- Absolute isolation - No data leakage between ports
- Certified by NIAP, the latest Common
- Criteria (Protection Profile for Peripheral Sharing Switch Version 3.0)
> View the NIAP certification and validation documents here.
Why Secure KM?
Traditional non-secure KM switches offer centralized control of multiple computers, but offer no absolute isolation between them. This exposes systems to the possibility of malicious damage and disruption, and acquisition of sensitive data from one computer to another.
IPGard's Secure KM Switch is designed for use in secure defense and intelligence applications where sensitive data must be protected. The Switch is NIAP PP 3.0 certified and equipped with the highest security features that meet today's Information Assurance safe control standards. The switch prevents data leakage between computers that can run at different security levels, and eliminate any potential cyber threat.
Keyboard & Mouse Emulation
The Secure KM emulates (simulates) the presence of a keyboard and mouse for every attached computer through a USB cable. Both selected and non-selected computers maintain a constant connection with the unit's keyboard-mouse emulation controllers, allowing for ultra-fast switching and restricting discovery of newly connected peripherals during switching operations. Emulation of keyboard and mouse also prevents direct connection between the peripherals and the connected computers, shielding systems from potential vulnerabilities.
Seamless Cursor & Keyboard Switching
IPGard Secure KM Switches offer top-grade data protection when accessing keyboard-mouse functions across multiple connected computer systems. IPGard's NIAP Protection Profile Ver. 3.0 (PP3.0) standard compliance ensures all IPGard KM switches utilize the newest, most advanced safeguards in relation to keyboard, mouse, and audio security.
Each IPGard Secure KM Switch uses Seamless Cursor & Keyboard Switching (SCS), which lets users transition between highly isolated computer systems simply by moving a mouse cursor across individual display borders. Each connected system's display remains visible during SCS, but the Secure KM Switch keeps each system isolated and protected.
Defense, intelligence and finance specialists who regularly work with sensitive data will benefit considerably from IPGard's Secure KM Switches' SCS functions, saving them both the time and effort of switching between systems.
CAC Support
Many secure KM switches support CAC devices, such as smart-card and biometric readers, bolstering security when using the device. However, IPGard takes CAC security even further, allowing users to assign specific peripheral devices to the SKMN-4S-P's CAC port. Once a peripheral device has been registered by an authenticated admin, users can then switch the connection between that device and the PC's along with KM switching.
SKMN-4S-P Package Includes
- 1 x 4-Port KM CAC Secure KM Switch w/ Audio, PP 3.0
- 1 x PS12V2A power supply
- Cables not included:
- Per target system: 1 x USB Type-A to Type-B cable, 1 x 3.5mm Stereo audio cable

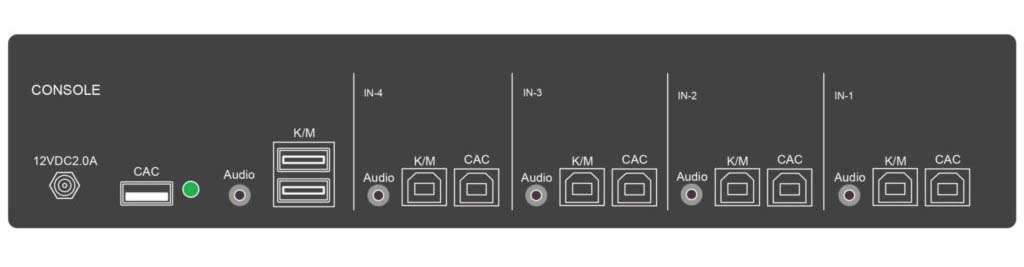

SKMN-4S-P Back
SmartAVI SKMN-4S-P Specifications
Learn More: SmartAVI SKMN-4S-P Brochure (PDF)
SmartAVI SKMN-4S-P Manual (PDF)
| USB | |
|---|---|
| Input Interface | (8) USB Type B |
| Output Interface | (2) USB 1.1 Type A for KM devices |
| Emulation | Keyboard and Mouse |
| CAC | Configurable CAC port |
| AUDIO | |
| Audio Input | (4) 3.5mm stereo audio |
| Audio Output | (1) 3.5mm stereo audio |
| CONTROL | |
| Front Panel | Front panel SELECT buttons |
| OTHER | |
| Power | External 100-240 VAC/ 12VDC2A @ 24W |
| Dimensions | 12.57" W x 1.76" H x 6.69" D |
| Weight | 4.2 lbs |
| Approvals | NIAP PP 3.0, UL, CE, ROHS Compliant |
| Operating Temp. | +32 to +104°F (0 to +40°C) |
| Storage Temp. | -4 to 140°F (-20 to +60°C) |
| Humidity | Up to 80% |
UPC 68691122248
EAN 068691122248
