Lantronix SecureLinx Spider 1 Port PS/2 & USB KVM Over IP Switch
SLS200PS20-01
The Lantronix SecureLinx Spider SLS200PS20-01 is a 1 port PS/2 & USB Remote KVM Over IP switch which provides secure KVM over IP (keyboard, video, mouse) management of servers over an IP network. Unlike traditional KVM switches on the market, the Lantronix Spider offers a flexible, scalable and affordable CAT5-based remote access KVM solution in a cable friendly, compact "zero-footprint" package.
The latest addition to the SecureLinx family of IT/data center management products, this KVM over IP switch eliminates server-to-switch CAT5 cable distance limitations, and gives system administrators non-intrusive and cost-effective 24/7 access to servers across a wide variety of IT/network environments: from mission critical servers in high-density data centers, to servers distributed over corporate campuses, multi-floor buildings, remote/branch office sites. Management access, from BIOS to applications, from any web browser anywhere, at any time.
This IP KVM switch can be easily daisy-chained together using Lantronix SwitchPort+ integrated Ethernet switch technology. This provides a cost-effective solution in environments where numerous cable drops and distance limitations can be a challenge when adding servers. Spider delivers secure, non-blocked, BIOS level management access to servers, and no client software or external power supply is required.
Lantronix SecureLinx Spider Features:
- 128-bit SSL keyboard, mouse and video data
- IP Source Address Filtering
- Remote Authentication: LDAP, RADIUS, Active Directory
- User/Group management with permissions control
- Configurable port numbers (HTTP,HTTPS,Telnet, SSH)
- Selective disable of Telnet/SSH

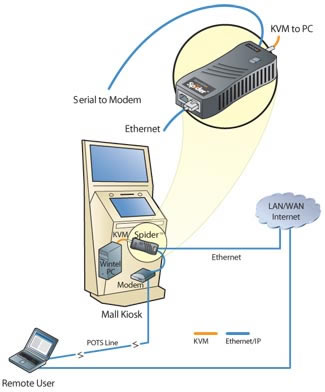

SecureLinx Spider IP KVM Application Diagram
Lantronix SLS200PS20-01 Specifications:
| Mechanical | |
| Height | 5.2 in. (13.2 cm) |
| Width | 2.3 in. (5.8 cm.) |
| Depth | 1.2 in. (3.1 cm.) |
| Weight | 6.6 oz. (185 g.) |
| Shipping Weight | 1 lb. (0.5 kg.) |
| Environmental | |
| Operating Temperature | 0° to 45° C (32° to 115° F) |
| Storage Temperature | -20° to 70° C (-4° to 158° F) |
| Humidity | 0 to 95% RH (non-condensing) |
| Heat Dissipation | 4 Watts (14 BTU/hr) |
| Power | |
| Input | 5 VDC @ .8A max. (server powered) |
| Optional | Auxiliary DC power supply available for redundancy (p/n: 520-085-R) |
| Interfaces | |
| Network | One 10/100Base-T Ethernet Port with activity indicators (RJ45) |
| Cascade | One 10/100Base-T Ethernet Port with activity indicators (RJ45) |
| Serial | RS-232, up to 115,200 bps |
| Keyboard/Mouse | PS/2 |
| Video | HD15 VGA |
| Target Server Requirements | |
| Supported Operating Systems | Supports Multiple Operating Systems:Windows 98/2000/2003/XP/Vista, Unix, Linux, or MAC OSX 10 |
| Power/keyboard/mouse | 1 USB, 1 PS/2 keyboard, and 1 PS/2 mouse connector |
| Client System Requirements | Internet Explorer 6.0+, Netscape 5.0+,Mozilla 1.0+, Firefox 1.0+, Safari 2.0+ PIII Processor equivalent or better (recommended) Sun Java 2 Runtime Environment Telnet/SSH client for command line (CLI) access |
| Certifications | UL/CUL (CSA-22.2 No. 60950-1-03 / UL-60950-1) CE - IEC 60950-1 C-Tick FCC Part 15, Equipment Class A VCCI V-3/2006.04 Class A AS/NZS CISPR 22: 2006 Class A EN55022:1998 +A1:2000 +A2:2003 Class A EN61000-3-2: 2000 +A2: 2005 Class A EN61000-3-3: 1995 +A1: 2001 EN55024: 1998 +A1:2001 +A2:2003 RoHS Compliant (lead free) |
