Low-Cost 4x4 4K 60Hz HDMI Video Matrix Switch

SM-4X4-4K18GBA-LC

$520.00

Discontinued
Recommended replacement: NTI SM-8X8-4K18GB-LC
Alternative options: Contact Us

Inputs x Outputs: 4x4

The NTI VEEMUX SM-4X4-4K18GBA-LC Low-Cost 4K HDMI Matrix Switch routes digital 4Kx2K HDMI video and audio signals from up to four HDMI video sources (computers, Blu-Ray players, satellite receivers, etc) to up to four displays (monitors, 4K TV's, projectors, etc). Route Ultra-HD 4Kx2K 60Hz 4:4:4 HDMI video and audio signals from many video sources to multiple displays.

  • Configure and control the switch through front panel buttons, Ethernet, IR remote control, or RS232.
  • Supports Ultra-HD 4Kx2K resolutions (4096x2160 and 3840x2160 @24/30/60Hz YUV 4:4:4) and HDTV resolutions to 1080p.
  • Each input can be independently connected to any or all outputs.
  • HDCP 2.2 compliant.
  • HDMI features supported:
    • HDMI 2.0
    • Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, DTS 7.1 and LPCM
    • YUV 4:4:4
    • HDR
    • 3D
    • Bandwidth up to 600 Mhz (18 Gbps)
    • Lip Sync
  • Switch audio independently of video from connected HDMI sources (e.g. source 1 and source 2 video are active while only source 3 audio is active).
    • HDMI-embedded audio switching (four-channel stereo mixing)
    • SPDIF digital audio out ports for each source.
  • Configurable built-in EDID table
  • Compact 1RU design
    • Mounting kit included

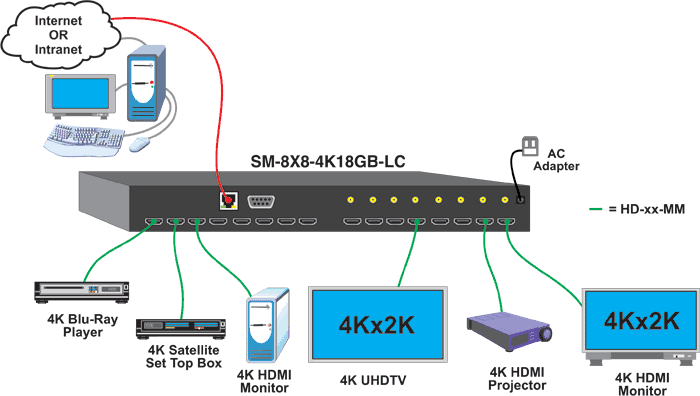

NTI SM-4X4-4K18GBA-LC 4x4 Low-Cost 4K 60Hz HDMI Video Matrix Switch Application Diagram

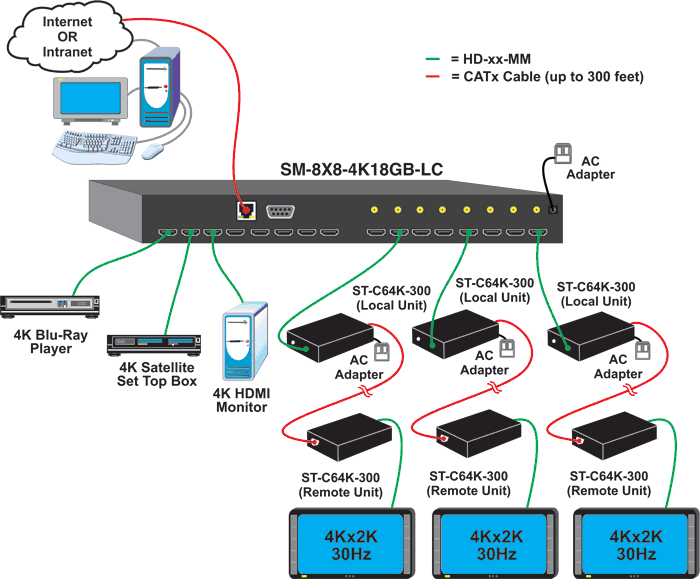

NTI SM-4X4-4K18GBA-LC 4x4 Low-Cost 4K 60Hz HDMI Video Matrix Cat5 HDMI Etender up to 300 feet Switch Application Diagram

SM-4X4-4K18GBA-LC Package Contents

NTI SM-4X4-4K18GBA-LC Package Contents

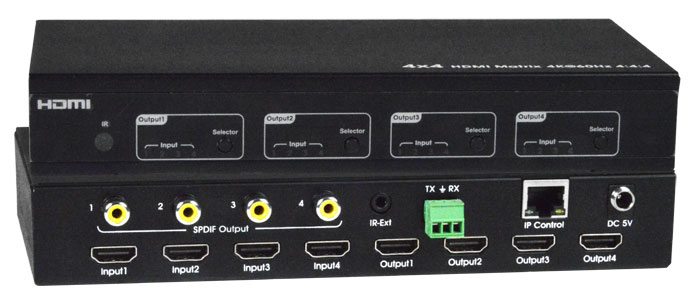

  • (1) NTI SM-4X4-4K18GBA-LC Video Matrix Switch
  • (1) Rack mounting kit
  • (1) Remote Control
  • (1) IR Ext RX Cable
  • (1) Phoenix plugs for RS232 cable termination
  • (1) 5V DC power supply
  • (1) CD for Control Software & Manual
  • (1) 2-Year Standard Warranty

SM-4X4-4K18GBA-LC Resources

NTI SM-4X4-4K18GBA-LC Manual NTI SM-4X4-4K18GBA-LC Brochure (PDF)
NTI SM-4X4-4K18GBA-LC Manual (PDF)

NTI SM-4X4-4K18GBA-LC Specifications

Dimensions (H x W x D)1.34 x 8.50 x 4.13 in (34 x 216 x 105 mm)
Inputs
  • Female HDMI input connectors
  • Compatible with computers and UHD video sources (satellite receivers, Blu-Ray players, etc) with HDMI video.
  • Supports HDCP 2.2/1.4
Outputs
  • Female HDMI output connectors
  • RCA jacks for SPDIF digital audio.
  • HDMI-embedded audio switching (four-channel stereo mixing).
  • Supported resolutions
    • 4Kx2K (4096x2160 and 3840x2160) @24Hz/30Hz/60Hz YUV 4:4:4
    • 480p @60Hz, 576p@50Hz, 720p@60Hz, 1080p @24/50/60Hz
  • Supports HDCP 2.2/1.4
  • Video bandwidth: 600MHz (18 Gbps)
Power
  • Input: 100 to 240 VAC at 50 or 60 Hz via AC adapter (AC adapter included.)
  • Output: 12VDC, 3.0A
  • Power consumption:
    • SM-4X4-4K18GBA-LC: 13W
    • SM-8X8-4K18GB-LC: 19W
Environmental
  • Operating temperature: -4 to 140°F (-20 to 60°C).
  • Storage temperature: -40 to 158°F (-40 to 70°C.)
Regulatory ApprovalCE, FCC, RoHS
Warranty2-Years
Control Methods
Front Panel Interface
  • Standard control method
  • Configuration and control can be done using the front panel buttons.
  • Keypad allows selection of the input source to be routed to the desired outputs.
Ethernet Control
  • Standard control method.
  • Configuration can be done over the Internet via Web server.
  • Female RJ45 connector.
  • 10/100 BaseT Ethernet interface.
RS232 Control
  • Standard control method
  • Configuration and control can be done through the serial port.
    • SM-4X4-4K18GBA-LC: Screw Terminal
    • SM-8X8-4K18GB-LC: Female DB9 connector.
  • Control the switch using the Control Program with Graphical User Interface (GUI control) via RS232. (Control software included.)
Infrared Remote Control
  • Standard control method
  • IR control of matrix switch:
    • The matrix switch can be controlled locally with the included IR remote using the built-in IR receiver on the switch.
    • Extend IR control up to 3.9 feet (1.2 meters) with IR extension cable (included).
      • One female 3.5mm port for IR extension.
Cables
  • Use HD-xx-MM HDMI cables to connect an HDMI source or display.
    • SM-4X4-4K18GBA-LC: Supports cable lengths to 25 feet for 4Kx2K resolutions at 60Hz and lengths to 50 feet for 4Kx2K resolutions at 30Hz.
    • SM-8X8-4K18GB-LC: Supports cable lengths to 50 feet for 4Kx2K resolutions at 60Hz
  • Cables not included.
Compatible NTI Products
  • Combine NTI's extenders, switches, splitters and cables for complex applications
    • 4K HDMI Extender via One CATx (ST-C64K-300)
      • Each output on the switch must be set to 3840x2160 @ 30Hz.
