Desktop - 4 In to 1 Out - 4K HDMI Quad Screen Multiviewer
SPLITMUX-4K-4RT
Save $160.52
Discontinued
Replaced by: NTI SPLITMUX-4K18GB-4
Alternative options: Contact Us
Model: 1x Desktop

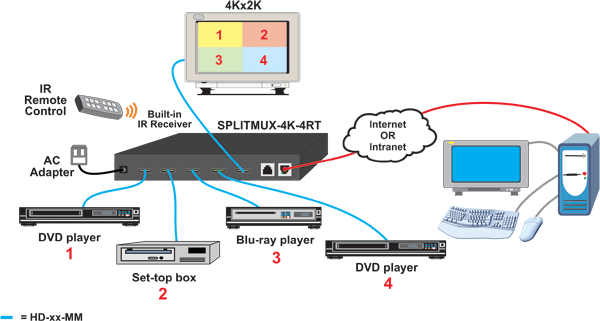

The SPLITMUX-4K-4RT 4K HDMI Quad Screen Multiviewer allows you to simultaneously display real-time video from four different sources on a single HDMI Ultra-HD 4Kx2K monitor. It is capable of displaying the video signals in quad, PiP, full, or custom mode. In quad and full screen display modes, the multiviewer supports 4K, 2K, 1080p, and 1920x1200 output resolutions. In picture-in-picture and custom display modes, it supports 2K, 1080p, and 1920x1200 output resolutions.
- Quad, Picture in Picture, Full Screen, and Custom display modes.
- Custom Display Mode: the size, position and selection of any or all windows are customizable.
- 2- and 3-source viewing is possible with this method.
- Maintain input aspect ratio if desired-no stretching necessary.
- Layer display windows and adjust transparency of each video source display.
- Supported resolutions:
- Inputs: 2K resolution 2048x1080, HDTV resolutions to 1080p and computer resolutions to 1920x1200.
- Output:
- Quad and Full mode: Ultra-HD 4Kx2K resolutions to 3840x2160 (30Hz) and 4096x2160 (30Hz), 2K resolution 2048x1080, HDTV resolutions to 1080p, and computer resolutions to 1920x1200.
- PiP and Custom mode: 2K resolution 2048x1080, HDTV resolutions to 1080p and computer resolutions to 1920x1200.
- Independent video in to video out resolution.
- HDMI features supported:
- Inputs: 24-, 30-, and 36-bit xvYCC, sRGB, and YCbCr.
- Outputs: 24- and 30-bit sRGB.
- Four-channel mixing stereo with 16-, 20-, or 24-bit uncompressed PCM audio.
- Bandwidth up to 340 MHz
- Inputs: 2.25 Gbps
- Output: 3.4 Gbps
- HDCP compliant.
- Fluid, real-time video performance with up to 60 frames per second (fps) in all four quadrants.
- Zoom, pan, and crop the image from any source to focus on key areas.
- Switch audio independently of video from connected HDMI sources.
- Adjustable audio gain with VU level indicators for each input channel.
- A customized text label can be added for each video window to provide easy input identification (UMD).
- Control the multiviewer through Ethernet, RS232 serial port, on screen display (OSD), front panel buttons, or IR remote.
- Cascade multiviewers to display video from any number of video sources on one screen.
- Each video source in the cascade can be controlled directly from the Web Server graphical user interface under Custom Mode Settings.
- Backup and restore multiviewer configurations.
- Supported output resolutions can be selected or set to auto detect optimal resolution from the monitor's EDID.
NTI SPLITMUX-4K-4RT Specifications
| Video Input | Four female HDMI connectors. Multiplatform support: Windows 2000/XP/Vista/7/8/10, Windows Server 2000/2003/2008/2012, Solaris, Linux, FreeBSD, and MAC OS 9/10. Supported video input resolutions: 2K Cinema (2048x1080 @ 60Hz) HDTV resolutions to 1080p Computer resolutions to 1920x1200. |
| Video Output | One female HDMI connector. Supported video output resolutions: Quad and Full mode Ultra-HD 4Kx2K resolutions (3840x2160 @ 30Hz, 4096x2160 @ 30Hz) 2K Cinema (2048x1080 @ 60Hz) HDTV resolutions to 1080p Computer resolutions to 1920x1200 PiP and Custom mode 2K Cinema (2048x1080 @ 60Hz) 2HDTV resolutions to 1080p 2Computer resolutions to 1920x1200. HDMI-embedded audio switching (four-channel stereo mixing). |
| Protocols | HTTP, HTTPS, TCP/IP, DHCP, UDP, ARP, IPV4 |
| Power | 110 to 220 VAC at 50 or 60Hz via country-specific AC adapter. Power consumption: 20W |
| Dimensions | Desktop WxDxH (in): 7.35x4.98x1.09 (187x126x28 mm) |
| Enviromental | Operating temperature: 32°F to 122°F (0°C to 50°C). Storage temperature: -22°F to 140°F (-30°C to 60°C). Operating and storage relative humidity: 17 to 90% non-condensing RH. |
| Regulatory Approvals | CE, RoHS, TAA Compliant |
| Warranty | Two Years |
Question: I'm serious about purchasing this product, however I wanted to ask if this is the lowest the price can go on this? Lastly, I don't plan to have this connected to a PC/Internet. Will I still be able to customize PIP views using only the remote?
Answer: Thank you for your inquiry,
You can set the different modes on the SPLITMUX-4K-4RT (Full-screen, quad-screen, picture-in-picture, and custom modes) using any of following six methods:
Question: Does SPLITMUX-4K-4RT work as a multiviewer for a 21:9 Ultra-Wide Display? Can you put two different HDCP v1.4 or higher enabled HDMI sources side by side on an Ultra-Wide Monitor?
Answer: Thank you for your inquiry,
Yes, you can indeed use the SPLITMUX-4K-4RT to show two different sources side-by-side on a 3840x1080 Ultra-Wide display. The SPLITMUX-4K-4RT does also support HDCP sources including HDCP v1.4.
Note, if your sources are also 3840 x 1080 21:9 Ultra-Wide, the SPLITMUX-4K-4RT can work but only through the "custom mode" where the aspect ratio has to be set as 21:9. In doing that, the picture at the boundaries will cut horizontally so as to fit in that aspect ratio.
Apologies for the delay while we verified this information with the product engineering team.
Please let us know if there is anything else we can do for you!
Question: If you just want to select and switch audio from one of the 4 HDMI inputs, will it pass through in full 5.1 through HDMI or does it downscale to stereo?
Answer: Thank you for your inquiry and thank you for your patience as we awaited information from the manufacture.
The manual says the following: Four-channel mixing stereo with 16-, 20-, or 24-bit uncompressed PCM audio.
We were unsure if that was 4-stereo channels per input or 1-stereo channel per input for a total of 4.
We asked for clarification from the manufacture who responded:
Each HDMI input can support four independent stereo channels (eight channels in total). In some applications these are used for surround sound audio, in others they may carry alternate languages or director's commentary. Not every HDMI source uses all of them, but the SPLITMUX-4K-4RT is capable of mixing and passing them all.
Answer: Thank you for your inquiry,
You can set the different modes on the SPLITMUX-4K-4RT (Full-screen, quad-screen, picture-in-picture, and custom modes) using any of following six methods:
- Standard Mode using the front panel buttons on the unit
- OSD Mode using the front panel buttons and/or keyboard and mouse,
- Using the Command Line Interface either through RS232 or remote connection
- Using a Text Menu either through RS232 or remote connection
- Using a hand-held IR Remote Control
- Remotely through the Web Interface using an Ethernet connection.
Question: Does SPLITMUX-4K-4RT work as a multiviewer for a 21:9 Ultra-Wide Display? Can you put two different HDCP v1.4 or higher enabled HDMI sources side by side on an Ultra-Wide Monitor?
Answer: Thank you for your inquiry,
Yes, you can indeed use the SPLITMUX-4K-4RT to show two different sources side-by-side on a 3840x1080 Ultra-Wide display. The SPLITMUX-4K-4RT does also support HDCP sources including HDCP v1.4.
Note, if your sources are also 3840 x 1080 21:9 Ultra-Wide, the SPLITMUX-4K-4RT can work but only through the "custom mode" where the aspect ratio has to be set as 21:9. In doing that, the picture at the boundaries will cut horizontally so as to fit in that aspect ratio.
Apologies for the delay while we verified this information with the product engineering team.
Please let us know if there is anything else we can do for you!
Question: If you just want to select and switch audio from one of the 4 HDMI inputs, will it pass through in full 5.1 through HDMI or does it downscale to stereo?
Answer: Thank you for your inquiry and thank you for your patience as we awaited information from the manufacture.
The manual says the following: Four-channel mixing stereo with 16-, 20-, or 24-bit uncompressed PCM audio.
We were unsure if that was 4-stereo channels per input or 1-stereo channel per input for a total of 4.
We asked for clarification from the manufacture who responded:
Each HDMI input can support four independent stereo channels (eight channels in total). In some applications these are used for surround sound audio, in others they may carry alternate languages or director's commentary. Not every HDMI source uses all of them, but the SPLITMUX-4K-4RT is capable of mixing and passing them all.
