4K HDMI Quad Screen Splitter/Multiviewer with Built-In KVM Switch, Dual Side-by-Side 1U Rackmount

SPLITMUX-USB4K-4RT-2R

$4,040.00$3,714.94
Save $325.06
Model: 2x Rack Mount
FREE Shipping on orders over $100

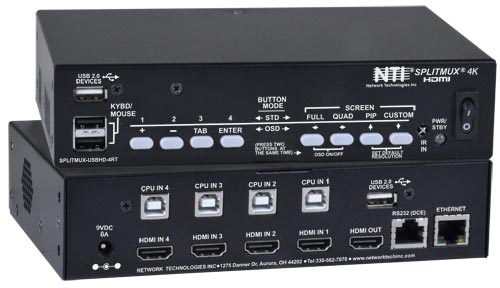

The NTI SPLITMUX-USB4K-4RT-2R includes 2x SPLITMUX-USB4K-4RT side-by-side in 1U rackmount. The SPLITMUX 4K HDMI Quad Screen Splitter/Multiviewer with Built-in USB KVM Switch allows video from four different computers to be simultaneously displayed on a single monitor. Additionally, it can switch one of the four attached computers to a shared keyboard and mouse for operation and to two additional USB devices. It is capable of displaying the video sources in quad, PiP, full, or custom mode. In custom display mode, each of the quadrants can be adjusted to any size and positioned to any location on the display.

NTI SPLITMUX-USB4K-4RT-2R 4K HDMI MultViewer / Splitter Application Diagram


NTI SPLITMUX-USB4K-4RT-2R 4K HDMI MultViewer PiP Picture-in-Picture & PbP Picture-by-Picture screen settings

  • Quad, Picture in Picture, Full Screen, and Custom display modes.
    • Custom Display Mode: the size, position and selection of any or all windows are customizable.
      • 2- and 3-source viewing is possible with this method.
      • Maintain input aspect ratio if desired - no stretching necessary.
      • Layer display windows and adjust transparency of each video source display.
  • Switch one of the four attached computers to a shared USB keyboard and mouse for operation.
  • Supported resolutions:
    • Inputs: 2K resolution 2048x1080, HDTV resolutions to 1080p and computer resolutions to 1920x1200.
    • Output:
      • Quad and Full mode: Ultra-HD 4Kx2K resolutions to 3840x2160 (60Hz) and 4096x2160 (60Hz), 2K resolution 2048x1080, HDTV resolutions to 1080p, and computer resolutions to 2560x1600.
      • PiP and Custom mode: 2K resolution 2048x1080, HDTV resolutions to 1080p and computer resolutions to 1920x1200.
    • Independent video in to video out resolution.
  • HDMI features supported:
    • Inputs: 24-, 30-, and 36-bit xvYCC, sRGB, and YCbCr.
    • Outputs: 24- and 30-bit sRGB.
    • Four-channel mixing stereo with 16-, 20-, or 24-bit uncompressed PCM audio.
    • Bandwidth up to 594 MHz
      • Inputs: 2.25 Gbps
      • Output: 5.94 Gbps
  • HDCP compliant.
  • Fluid, real-time video performance with up to 60 frames per second (fps) in all four quadrants.
  • Zoom, pan, and crop the image from any source to focus on key areas.
  • Switch audio independently of video from connected HDMI sources.
    • Multiple audio sources can be simultaneously active in any display mode or preset layout.
    • Adjustable audio gain with VU level indicators for each input channel.
  • A customized text label can be added for each video window to provide easy input identification (UMD).
  • Control the multiviewer through Ethernet, RS232 serial port, keyboard commands, on screen display (OSD), front panel buttons, or IR remote.
  • Built-in 2-port USB hub - switch devices between connected computers.
    • In Full Screen mode, USB touch screen monitors can be used to control the connected active computer.
  • Compliant with USB 2.0 (high-speed and low/full speed) standards.
  • Cascade multiviewers to display video from any number of video sources on one screen.
    • Each video source in the cascade can be controlled directly from the Web Server graphical user interface under Custom Mode Settings.
  • Backup and restore multiviewer configurations.
  • Supported output resolutions can be selected or set to auto detect optimal resolution from the monitor's EDID.
  • Available options: desktop unit, 1RU rackmount unit (this model), dual side-by-side rackmount units in 1RU
    • Rackmount units can be mounted so that the front panel buttons are facing the front or back of the rack.
    • Rackmount units include cable management shelf.

SPLITMUX-USB4K-4RT-2R Package Contents

NTI SPLITMUX-USB4K-4RT-2R Package Contents

  • (1) NTI SPLITMUX-USB4K-4RT-2R Multiviewer
  • (1) 120VAC or 240VAC at 50 or 60Hz-9VDC/8A AC Adapter PS4212
  • (1) DB9 Female-to-RJ45 Female adapter CT6182
  • (1) 5 foot CAT5E-SF32-5-BLACK patch cable CB7094
  • (1) IR Remote Control CT7003 with two (2) AAA batteries PS0154
  • (6) Ear Brackets MP4829
  • (2) Short Rack Ears MP4827
  • (1) Cable Tray Connector MP4830
  • (2) Connector Plate MP4828
  • (2) Cable Tray MP4825
  • (28) #6-32x1/4Ó Flat head Screws HW5133

SPLITMUX-USB4K-4RT-2R Resources

NTI SPLITMUX-USB4K-4RT-2R Manual NTI SPLITMUX-USB4K-4RT-2R Brochure (PDF)
NTI SPLITMUX-USB4K-4RT-2R Manual (PDF)

NTI SPLITMUX-USB4K-4RT-2R Specifications

Dimensions
  • W x D x H (in):
    • Without rackmount kit: 7.35 x 4.98 x 1.75 (187 x 126 x 45 mm)
    • With rackmount kit: 19 x 4.98 x 1.75 (483 x 126 x 45 mm) (excludes cable tray)
  • Can be mounted so that the front panel buttons are facing the front or back of the rack.
  • Includes cable management tray.
    • Adds 3.37" to the depth.
Hosts
  • Four female HDMI connectors.
  • Four female USB Type B connectors.
  • Supported video input resolutions:
    • 2K Cinema (2048x1080 @ 60Hz)
    • HDTV resolutions to 1080p
    • Computer resolutions to 1920x1200.
  • Supports HDCP 1.4
  • Supports USB computers.
    • Boots PCs, SUNs, and MACs simultaneously.
  • Multiplatform support: Windows 2000/XP/Vista/7/8/10, Windows Server 2000/2003/2008/2012, Solaris, Linux, FreeBSD, and MAC OS 9/10.
  • Supports HDMI devices, such as DVD/Blu-ray players, satellite receivers and HDTV tuners.
Monitor
  • One female HDMI connector.
  • Supported video output resolutions:
    • Quad and Full mode
      • Ultra-HD 4Kx2K resolutions (3840x2160 @ 60Hz, 4096x2160 @ 60Hz)
      • 2K Cinema (2048x1080 @ 60Hz)
      • HDTV resolutions to 1080p
      • Computer resolutions to 2560x1600
    • PiP and Custom mode
      • 2K Cinema (2048x1080 @ 60Hz)
      • HDTV resolutions to 1080p
      • Computer resolutions to 1920x1200.
  • Supports HDCP 2.2
  • HDMI-embedded audio switching (four-channel stereo, non-mixing or one channel stereo, mixing).
    • Switch audio independently of video from connected HDMI sources.
    • Multiple audio sources can be simultaneously active in any display mode or preset layout.
  • Latency:
    • 50mS at 60Hz
    • 60mS at 50Hz
    • 100mS at 30Hz
    • 120mS at 25Hz
    • 125mS at 24Hz
Devices
  • Two female USB Type A connectors for keyboard and mouse.
    • Keyboard and mouse are hot-pluggable.
  • Two female USB Type A connectors for USB peripheral devices (touch screen monitor, printers, scanners, security cameras, flash drives, etc.)
    • Connect any type of USB device - fully transparent USB connectors.
    • Switch USB 2.0 devices between connected computers.
    • In Full Screen mode, USB touch screen monitors can be used to control the connected active computer.
  • Provides support for high-speed (480 Mbps), full-speed (12 Mbps), or low-speed (1.5 Mbps) USB devices.
Protocols
  • HTTP, HTTPS
  • TCP/IP, DHCP, UDP, ARP
  • IPV4
Power
  • 110 to 220 VAC at 50 or 60Hz via country-specific AC adapter.
  • Power consumption: 20W
Environmental
  • Operating temperature: 32°F to 122°F (0°C to 50°C).
  • Storage temperature: -22°F to 140°F (-30°C to 60°C).
  • Operating and storage relative humidity: 17 to 90% non-condensing RH.
Regulatory Approval
  • CE, RoHS
  • TAA compliant
Warranty2-Years
