NTI Component + Audio HDTV Extender via CAT5
ST-C5CMPSA-600
NTI HDTV Extender via CAT5 (ST-C5CMPSA-600)
The NTI XTENDEX HDTV Extender (ST-C5CMPSA-600) broadcasts YPbPr component video and analog or digital audio locally and remotely up to 600 feet away from a component video device (DVD, CD, satellite receiver, etc) using CAT5/5e/6 cable. Each NTI XTENDEX HDTV Video Extender (ST-C5CMPSA-600) of a local unit that connects to a component video device and also supplies audio/video to a local display and speakers, and a remote unit that connects to a TV or monitor and speakers.
NTI HDTV Extender via CAT5 (ST-C5CMPSA-600) Features
- Easily transmit a high-definition component video signal to a projector in the ceiling by using compact CAT5 cable instead of bulky cable bundles.
- Send high quality video signals from the DVD player in your basement to the great room upstairs.
- Supports local and remote TVs/monitors/projectors and speakers.
- Supports 480i (interlaced), 480p (progressive), 720i, 720p, 1080i, and 1080p formats.
- Audio can be Left and Right stereo or digital S/PDIF.
- ST-C5CMPSA-600 supports analog stereo audio.
- Built-in surge protection.
NTI HDTV Extender via CAT5

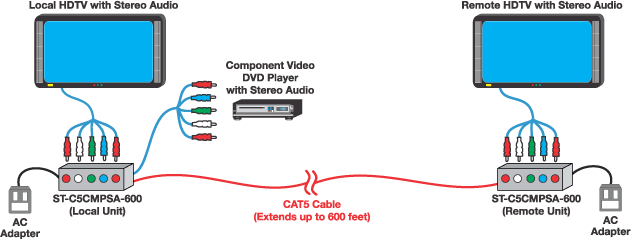

Functional Diagram
NTI HDTV Extender via CAT5
(ST-C5CMPSA-600)
Specifications:
| Remote Unit |
| Host Connection | |
| Three RCA plugs for YPbPr component video and two RCA plugs for analog stereo audio. | |
| Local Access | |
| Three RCA jacks for YPbPr component video and two RCA jacks for analog stereo audio. |
NTI HDTV Extender via CAT5
(ST-C5CMPSA-600)
Specifications:
| Remote Unit | |
| Three RCA jacks for YPbPr component video and two RCA jacks for analog stereo audio. | |
| Video | |
| Signal type: | HDTV YPbPr component |
| Maximum input/output levels: | 1.45Vp-p. |
| Input/output impedance: | 75 Ohms |
| Bandwidth: | 90Mhz at 100 feet, 50Mhz at 600 feet |
| Resolutions: | HDTV 480i, 480p, 720i, 720p, 1080i, and 1080p. |
| Video Quality Adjustment | |
| Automatically adjusts the video quality to compensate for varying lengths of CAT5 cable. | |
| Audio: | |
| Audio can be Left and Right stereo or digital S/PDIF. | |
| Audio can be heard both locally and remotely. | |
| Signal type: | Stereo audio, analog, left/right |
| Maximum input/output levels: | 3.1Vp-p. |
| Input impedance: | 10K Ohms |
| Output impedance: | 50 ohms |
| Frequency Response: | +/-0.01 dB, 20 Hz to 20 kHz. |
| Total Harmonic Distortion + Noise (THD+N): | 0.017% |
| Signal-to-Noise Ratio (SNR): | 76 dBA |
| Stereo crosstalk: | -70 dB |
| Power | |
Power consumption: | 10W (each - local and remote unit) |
| Local and remote units: | 110 VAC at 60 Hz via AC adapter (included). |
| Dimensions | |
| WxDxH (in): 3.25x3.4x1 | |
| Environmental | |
| Operating temperature: | 32°F to 100°F (0°C to 38°C). |
| Storage temperature: | -20°F to 140°F (-30°C to 60°C). |
| Operating and Storage Relative Humidity: | 17 - 90% non-condensing RH. |
