NTI XTENDEX VGA Extender via CAT5 (600ft)
ST-C5V-600
Save $48.28
ST-C5V-600 Manual (PDF)
The NTI XTENDEX (ST-C5V-600) (Remote & Local Unit) Extender broadcasts VGA video locally and remotely up to 300/600 feet away from a computer using CAT5/5e/6 cable. Each video extender consists of a local unit connected to a computer or the output of an NTI switch, and a remote unit connected to a monitor or the input of an NTI switch.
For Audio & Video capabilities please see ST-C5VA-600 (local and remote unit), see also related products.Features
- Supports local and remote VGA monitors.
- Built-in surge protection.
- Available with optional stereo audio or RS232 control.
- Use in-house CAT5/5e/6 phone wiring to locate a monitor remotely.

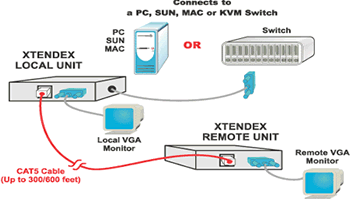

NTI XTENDEX Diagram
| NTI XTENDEX (ST-C5V-600) Specifications: | |
| Host Connection | |
| Supports a PC, SUN, MAC or NTI Switch. | |
| Male 15-pin HD connector for computer connection. | |
| Optional RS232 support - female 9-pin D connector (ST-C5V-600 only). | |
| Optional stereo audio support - 3.5mm stereo plug. | |
| Local Access | |
| Crisp and clear 1920x1440 video resolution. | |
| Female 15-pin HD connector for local VGA monitor. | |
| Optional RS232 support - male 9-pin D connector (ST-C5V-600 only). | |
| Optional stereo audio support - 3.5mm stereo jack. | |
| Use an optional VGA adapter to connect S-Video or RCA displays. | |
| Power | |
Power consumption: | 10W |
| 110 or 220 VAC at 50 or 60 Hz via AC adapter (Included). | |
| Cables | |
| CAT5, CAT5e or CAT6 UTP straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included). | |
| Dimensions | |
| WxDxH (in): 3.5x3.1x1.2 | |
| Environmental | |
| Operating temperature: | 32°F to 100°F (0°C to 38°C). |
| Storage temperature: | -20°F to 140°F (-30°C to 60°C). |
| Operating and Storage Relative Humidity: | 17 - 90% non-condensing RH. |
| Regulatory Approvals | |
| CE | |
| Remote Unit | |
| Supports resolutions up to 1920x1440; refer to the resolution charts below for resolutions at different lengths. | |
| Female 15-pin HD connector. | |
| Optional 3.5mm stereo audio connection. | |
| Optional male 9-pin D connector for RS232 (ST-C5V-600 only). | |
| Use an optional VGA adapter to connect S-Video or RCA displays | |
| Video Adjustment Quality | |
| video quality adjustment for different lengths of CAT5/5e/6 cable is done manually for the video-only extender, and automatically for audio/video or video/RS232 extender. | |
| Power | |
Power consumption: | 10W |
| 110 or 220 VAC at 50 or 60 Hz via AC adapter (Included). | |
| Dimensions | |
| WxDxH (in): 3.5x3.1x1.2 | |
| Environmental | |
| Operating temperature: | 32°F to 100°F (0°C to 38°C). |
| Storage temperature: | -20°F to 140°F (-30°C to 60°C). |
| Operating and Storage Relative Humidity: | 17 - 90% non-condensing RH. |
| Regulatory Approvals | |
| CE | |
Options:
Stereo Audio:
Stereo audio can be heard both locally and remotely.
Frequency response: 20 Hz to 20 kHz, +/-1 dB.
Signal-to-Noise Ratio (SNR): 76 dBA.
Total Harmonic Distortion and Noise (THD+N): 0.017%.
Stereo crosstalk: -70 dB.
Input impedance: 10k Ohms.
Line level output; supports multimedia speakers.
Maximum I/O levels: 3.1Vp-p (line level).
RS232 Control:
Supports TXD, RXD, DTR, DSR, CTS and RTS.
Baud rate up to 56000.
Support for a touch screen monitor.
Answer: Thank you for your inquiry. For the most up to date stocking information, please contact your KVM Switches Online representative directly at 1-877-586-6654 or through our online chat feature.
Question: Good afternoon! Does this unit need to be grounded?
Answer: Thank you for your inquiry. The manual for this device states the following:
- Local and Remote Units should be grounded through either a display or source that uses a 3-prong power cord. If only one unit is grounded, shielded CAT5 cable should be used.
You can download a copy of the PDF manual at the following location: http://www.42u.com/pdf/nti-st-c5kvm-600-st-c5kvm-600m.pdf.
