NTI KVM Extender via CAT5
ST-C5KVMRS-600
Save $61.95
The NTI XTENDEX KVM extender (ST-C5KVMRS-600) provides local and remote KVM (PS/2 keyboard, PS/2 mouse and VGA monitor) access to a PC or NTI KVM switch up to 300/600 feet using CAT5/5e/6 UTP cable.
NTI ST-C5KVMRS-600 Features & Applications:
- Supports two users: one local and one remote.
- Local unit provides local KVM access.
- Allows local and remote access to network servers.
- Built-in surge protection
- RS232 control
- Keep-alive keyboard/mouse emulation for flawless operation.
- Use in-house CAT5 wiring to locate a keyboard, monitor and mouse remotely.
- Supports TXD, RXD, DTR, DSR, CTS and RTS.
- Baud rate up to 56000.
- Support for a touch screen monitor.

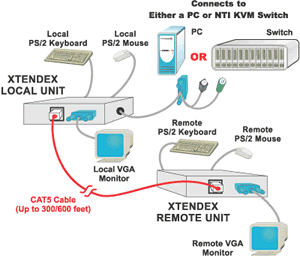

NTI ST-C5KVMRS-600 Diagram
Local Unit Details:
- Host Connection
- Supports a PC, SUN FireŠ V20z, or NTI Switch.
- Male 15-pin HD/male 6-pin miniDIN connectors for PC or NTI KVM switch.
- Optional RS232 support - female 9-pin D connector (ST-C5KVM-600 only).
- Optional stereo audio support - 3.5mm stereo plug.
- Local Access
- Crisp and clear 1920x1440 video resolution.
- Female 15-pin HD connector.
- Female 6-pin miniDIN connectors.
- Compatible with Japanese keyboard layout.
- Supports PS/2 mice including the IBM ScrollPoint mouse.
- NTI recommends using identical keyboards and mice at local and remote units.
- RS232 support - male 9-pin D connector (ST-C5KVM-600 only).
Remote Unit Details:
- Supports resolutions up to 1920x1440; refer to the resolution charts below for resolutions at different lengths.
- Female 15-pin HD connector.
- Female 6-pin miniDIN connectors.
- Compatible with Japanese keyboard layout.
- Supports PS/2 mice including the IBM ScrollPoint mouse.
- Optional 3.5mm stereo audio connection.
- Optional male 9-pin D connector for RS232 (ST-C5KVM-600 only).
- Video Quality Adjustment
- ST-C5KVM-600: automatically adjusts the video quality to compensate for varying lengths of CAT5 cable.
NTI ST-C5KVMRS-600 Specifications:
| Mechanical | Local Unit | Remote Unit |
| Height | 1.2 in. (3.04 cm.) | 1.2 in. (3.04 cm.) |
| Width | 3.5 in. (8.89 cm.) | 3.5 in. (8.89 cm.) |
| Depth | 3.1 in. (7.87 cm.) | 3.1 in. (7.87 cm.) |
| Weight | 1.2 Lbs. (0.54 kg.) | 1.2 Lbs. (0.54 kg.) |
| Environmental | ||
| Operating Temperature | 32°F to 100°F (0°C to 38°C) | 32°F to 100°F (0°C to 38°C) |
| Storage Temperature | -20°F to 140°F (-30°C to 60°C) | -20°F to 140°F (-30°C to 60°C) |
| Relative Humidity | 17 to 90% non-condensing RH | 17 to 90% non-condensing RH |
| Power | ||
| Operating Voltage | 100 to 220 VAC | 100 to 220 VAC |
| Power Frequency | 50-60 Hz (60hz via AC Adapter) | 50-60 Hz (60hz via AC Adapter) |
| Consumption | 10W | 10W |
| Standards | ||
| Regulatory Approval | CE | CE |
Question: Can we demo this product?
Answer: Thank you for your inquiry. Please call us toll free at 1-877-586-6654 to discuss your project in more detail.
Question: Does the CAT cable come with
Answer: Thank you for your inquiry. This CATx PS/2 KVM extender system does not come with CAT5/5e/6 cables.
Question: Do you have a datasheet for PN ST-C5KVMRS-600
Answer: Thank you for your inquiry. You can view the PDF data sheet for this product here: http://www.networktechinc.com/pdf/cat-cat5.pdf.
Question: Hello, I have a ST-C5KVMRS-R-600 set and I need on more monitor. Could you please tell me price and reference for the remote unit alone.
Answer: Thank you for your inquiry. The remote unit itself is part number ST-C5KVMRS-R-600, list price $180.00. The 2-port transmitter part number is ST-2C5KVMRS-L-600, list price $230.00; and the single port transmitter/receiver kit is part number ST-C5KVMRS-600, List price $405.00.
Question: The data sheet has "Features push button for downloading DDC data from monitor". Does that mean that once this has been done (download the DDC data) that the data is stored and kept internally at the KVM and will be used each time as the default setting when the PC reboots to identify the resolution until you initiate the push button again?
Answer: Thank you for your inquiry. Yes, once the EDID information is retrieved from the remote unit, it is stored in local unit which will present that information to the attached CPU any time the CPU is power-cycled.
Question: To what portion of an NTI ST-C5KVMRS-600 does the part number ST-C5KVMRS-L-600-SCI-220V-US refer?
Answer: Thank you for your inquiry. This is a very unique Part Number which took a little time to research. The first part of the number, the ST-C5KVMRS-L-600, indicates this would be the local transmitter unit of a 600 ft VGA PS/2 KVM extender with RS232 system. The -220V-US indicates this unit supports 220 volt electrical service with a US specific plug. The SCI indicates a custom part created specifically to work with a particular optical mouse.
Question: What is the operating voltage range for this device.
Answer: Thank you for your inquiry. The operating voltage for this device is 110 or 220 VAC at 50 or 60 Hz via the AC adapter. It is also possible to add a DC power converter for telecom environments.
Question: I have a ST-C5KVMRS-R-600 and wpuld like to purchase another power adapter for it. Please advise the part number and price
Answer: Thank you for your inquiry. The part number would be SW-ACADAPTER(ST-C5KVMRS-R-600) and the cost would be $20.00 - plus any applicable tax and shipping charges.
This part is not available to purchase online. To order, please contact your KVM switches Online representative at 1-877-586-6654 of via our online chat feature.
