NTI CAT5 KVM Extender

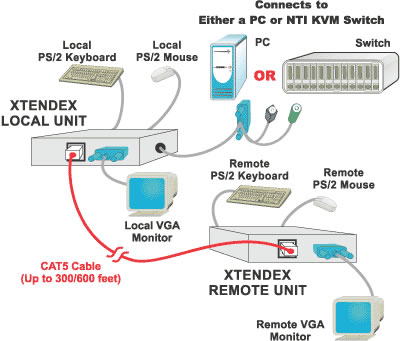

The XTENDEX KVM extender provides local and remote KVM (PS/2 keyboard, PS/2 mouse and VGA monitor) access to a PC or NTI KVM switch up to 600 feet using CAT5/5e UTP cable.

Features:

• Supports two users: one local and one remote.
• Local unit provides local KVM access.
• Allows local and remote access to network servers.
• Built-in surge protection
• Keep-alive keyboard/mouse emulation for flawless operation.
• Use in-house CAT5 wiring to locate a keyboard, monitor and mouse remotely.

LOCAL UNIT

• Host Connection
  • Supports a PC, SUN Fire™ V20z, or NTI Switch.
  • Male 15-pin HD/male 6-pin miniDIN connectors for PC or NTI KVM switch.
• Local Access
  • Crisp and clear 1024 x 768 video resolution.
  • Female 15-pin HD connector.
  • Female 6-pin miniDIN connectors.
  • Compatible with Japanese keyboard layout.
  • NTI recommends using identical keyboards and mice at local and remote units.
• Environmental
  • Operating temperature: 32°F to 100°F (0°C to 38°C).
  • Storage temperature: -20°F to 140°F (-30°C to 60°C).
  • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
• Power
  • 110 or 220 VAC at 50 or 60 Hz via AC adapter.
• Dimensions
  • WxDxH (in.): 3.5x3.1x1.2
• Regulatory Approvals
  • CE

REMOTE UNIT

• Supports resolutions up to 1024 x 768
• Female 15-pin HD connector.
• Female 6-pin miniDIN connectors.
• Compatible with Japanese keyboard layout.
• Video Quality Adjustment
  • ST-C5KVM-600 automatically adjusts the video quality to compensate for varying lengths of CAT5 cable.
• Power
  • 110 or 220 VAC at 50 or 60 Hz via AC adapter.
• Environmental
  • Operating temperature: 32°F to 100°F (0°C to 38°C).
  • Storage temperature: -20°F to 140°F (-30°C to 60°C).
  • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
• Dimensions
  • WxDxH (in.): 3.5x3.1x1.2
• Regulatory Approvals
  • CE
