CAT5 VGA Video Extender 300 ft
ST-C5V-300
Save $23.33
Download the
ST-C5V-300 Manual (PDF)
ST-C5V-300 Manual (PDF)

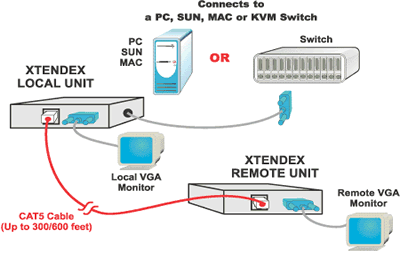

The NTI CAT5 VGA Video Extender (ST-C5V-300) broadcasts VGA video locally and remotely up to 300 feet away from a computer using CAT5/5e/6 cable. Each video extender consists of a local unit connected to a computer or the output of an NTI switch, and a remote unit connected to a monitor or the input of an NTI switch The NTI CAT5 VGA Video Extender 300 ft (ST-C5V-300) supports local and remote VGA monitors, has built-in surge protection and uses in-house CAT5/5e/6 phone wiring to locate a monitor remotely.
NTI CAT5 VGA Video Extender 300 ft
Specifications Local Unit
| Host Connection | |
| Supports a PC, SUN, MAC or NTI Switch. | |
| Male 15-pin HD connector for computer connection. | |
| Optional stereo audio support - 3.5mm stereo plug. | |
| Local Access | |
| Crisp and clear 1920x1440 video resolution. | |
| Female 15-pin HD connector for local VGA monitor | |
| Optional stereo audio support - 3.5mm stereo jack. | |
| Use an optional VGA adapter to connect S-Video or RCA displays. | |
| Power | |
| Power Consumption | 10W |
| 110 or 220 VAC at 50 or 60 Hz via AC adapter (Included). | |
| Cables | |
| CAT5, CAT5e or CAT6 UTP straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included). | |
| Dimensions | |
| WxDxH (in): 3.5x3.1x1.2 | |
| Environmental | |
| Operating temperature | 32°F to 100°F (0°C to 38°C) |
| Storage temperature | 20°F to 140°F (-30°C to 60°C) |
| Operating and Storage Relative Humidity: | 17 - 90% non-condensing RH |
| Regulatory Approvals | |
| CE |
Specifications Remote Unit
| General | |
| Supports resolutions up to 1920x1440; | |
| Female 15-pin HD connector. | |
| Optional 3.5mm stereo audio connection. | |
| Use an optional VGA adapter to connect S-Video or RCA displays. | |
| Video Quality Adjustment | |
| Video quality adjustment for different lengths of CAT5/5e/6 cable is done manually. | |
| Power | |
| Powered from local unit via CAT5/5e/6 cable. | |
| Dimensions | |
| WxDxH (in): 3.5x3.1x1.2 | |
| Environmental | |
| Operating temperature | 32°F to 100°F (0°C to 38°C). |
| Storage temperature | 20°F to 140°F (-30°C to 60°C). |
| Operating and Storage Relative Humidity | 17 - 90% non-condensing RH. |
| Regulatory Approvals | |
| CE |
ST-C5V-300 Distances and Resolutions for CAT5/CAT5e and CAT6 cables
| Cable | Distance (feet) | Resolution |
| CAT 5/CAT5e | 300 | 1280x1024 at 60Hz |
| 150 | 1600x1200 at 60Hz | |
| 100 | 1920x1440 at 60Hz | |
| CAT 6 | 300 | 1024x768 at 60Hz |
| 150 | 1280x1024 at 60Hz | |
| 100 | 1600x1200 at 60Hz |
Options
- Stereo Audio
- Stereo audio can be heard both locally and remotely.
- Frequency response: 20 Hz to 20 kHz, +/-1 dB.
- Signal-to-Noise Ratio (SNR): 76 dBA.
- Total Harmonic Distortion and Noise (THD+N): 0.017%.
- Stereo crosstalk: -70 dB.
- Input impedance: 10k Ohms.
- Line level output; supports multimedia speakers.
- Maximum I/O levels: 3.1Vp-p (line level).
