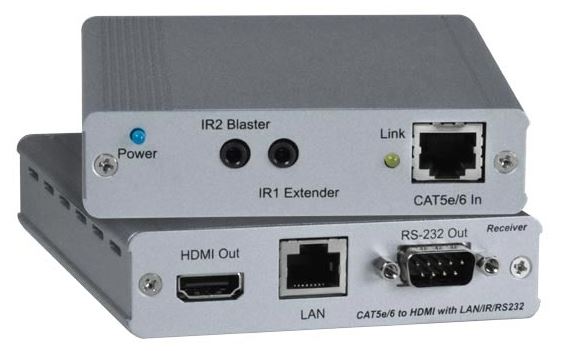

HDMI HDBase-T POE Receiver - Up to 4k x 2k
ST-C64KPOE-HDBT-R-LC

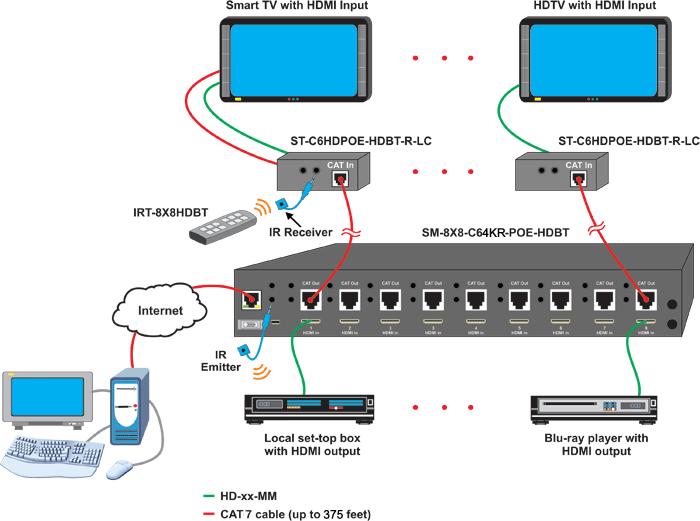

This receiver enables remote access for the SM-8X8 NTI systems. This unit supports Ultra-HD 4Kx2K resolutions to 4096x2160, HDTV resolutions to 1080p, and computer resolutions to 1920x1200
Product Specifications
| Video Output | Supports Ultra-HD 4Kx2K resolutions to 4096x2160, HDTV resolutions to 1080p, and computer resolutions to 1920x1200 One female HDMI output connector. One female RJ45 HDBase-T connector for sending/receiving high definition video, audio, IR, Ethernet and DDC signals. Two female 3.5mm ports for connecting an IR transmitter or receiver. One female Ethernet port for connecting a network device such as a 100Base-T router, hub, smart TV, or smart Blu-Ray player. |
| Dimensions W x D x H | 4.02" x 4.53" x 0.98" (102 x 115 x 25mm) |
| Power | Powered by matrix switch via Power over Ethernet (PoE). Power consumption: 7W. |
| Environmental | Operating temperature: 32 to 104°F (0 to 40°C) Storage temperature: -4 to 140°F (-20 to 60°C) Operating/storage relative humidity: 20 to 90% non-condensing RH. |
| Regulatory Approvals | CE, FCC, RoHS, TAA |
