Low-Cost HDMI Over Gigabit IP Network Range Extender (Remote Unit)

ST-IPHD-R-LC

$75.00$68.97
Save $6.03
FREE Shipping on orders over $100

Receiver Only!

The XTENDEX Low-Cost HDMI Over Gigabit IP Extender multicasts digital video and audio signals to one or more receivers up to 330 feet away over a 1000Base-T Gigabit Network connected with CAT5e/6 cable.

This item consists of a single remote unit that connects to an HDMI display. The local and remote units can be connected together for a Point-to-Point connection via CATx or a Point-to-Many connection via a network switch. Support for multiple transmitters requires a managed network switch.

For both local and remote capabilities please see ST-IPHD-LC.

Features and Benefits

NTI ST-IPHD-R-LC Diagram
NTI HDMI over IP Extender Diagram
(ST-IPHD-R-LC depicted here)

  • Supports HDTV resolutions to 1080p.
  • Ideal solution for digital signage applications.
  • Broadcast real-time HDMI video and audio signals to multiple display locations with a managed or unmanaged (also known as non-managed) network switch.
  • Transmits an HDMI signal over one CAT5e/6 cable.
  • Plug-and-Play installation allows receivers to find the transmitters automatically on the same subnet. (Network configuration may be required for managed network switch.)
  • Web interface for changing IP addresses, firmware updates and resetting units to factory default settings.
  • Easily expandable. Add remote units as you add monitors.
  • Inexpensive CAT5e/6 cable replaces bulky video cables.
  • Supports 10/100/1000 Ethernet connection.
  • Built in default EDID table.
  • HDCP compliant.
  • For a point-to-many connection, a standalone network with an unmanaged network switch, hub, or router can be used instead of a managed network switch.
  • Local and remote units must be in the same LAN. The units do not support WAN connections.

NTI ST-IPHD-R-LC Use Cases

Each Low-Cost HDMI Over Gigabit IP Extender consists of a local unit that connects to an HDMI source, and a remote unit that connects to an HDMI display. The local and remote units can be connected together for a Point-to-Point connection via CATx or a Point-to-Many connection via a network switch. Support for multiple transmitters requires a managed network switch.

Point-to-Point Extender

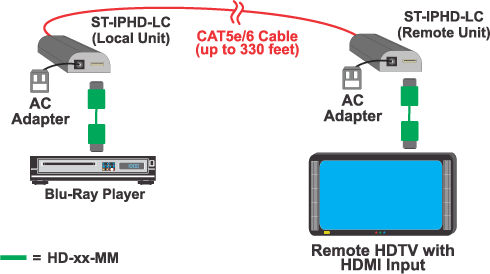

Extend the video from a HDMI source up to 400ft / 120m over a single Cat6 cable (High quality cable can reach up to 500ft / 150m). By using network routers/repeaters, unlimited extension distances is also possible.

NTI ST-IPHD-R-LC Point-to-point Extension Application Diagram

Point-to-Many Splitter Extender
Using a Network Router / Switch

By using a network router/switch, one ST-IPHD-L-LC sender unit can broadcast HDMI sources to multiple ST-IPHD-R-LC receivers. Split & extend sources effortlessly across unlimited distances.

For a point-to-many connection, a standalone network with an unmanaged network switch, hub, or router can be used instead of a managed network switch. It is not recommended to use any other network devices on this standalone network as it may cause a degradation in performance.

NTI ST-IPHD-R-LC Point-to-Many Extension Application Diagram

Many-to-Many Extender
Using a Managed Network Switch

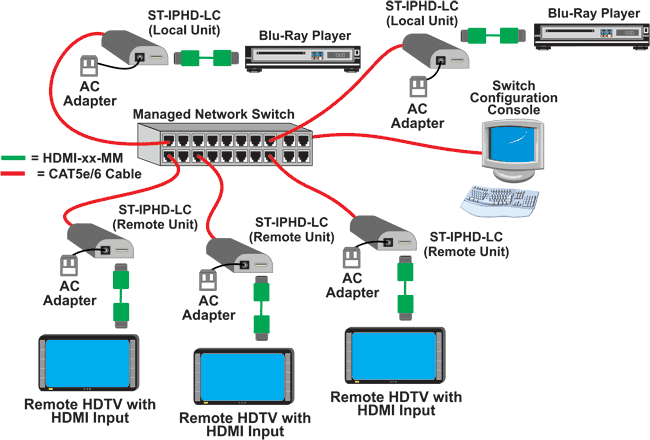

Create an infinitely versatile and expandable AV matrix. By using a managed network switch, several ST-IPHD-R-LC receiver units can access several ST-IPHD-L-LC sender sources across the network.

Support for multiple transmitters requires a Managed network switch with VLAN/IGMP support. NOTE: The many-to-many configuration is not compatible with Cisco 2960 switch.

NTI ST-IPHD-R-LC Many-to-Many Extension Application Diagram

ST-IPHD-R-LC Package Contents

NTI ST-IPHD-R-LC Package Contents

  • (1) ST-IPHD-R-LC HDMI Extender - Receiver
  • (1) 2-Year Standard Warranty

ST-IPHD-R-LC Resources

NTI ST-IPHD-R-LC Manual NTI ST-IPHD-R-LC Brochure (PDF)
NTI ST-IPHD-R-LC Manual (PDF)

NTI ST-IPHD-R-LC Specifications

Mechanical
Width2.28 in.
Height1.02 in.
Depth4.33 in.
Power
AC Adapter100 to 240 VAC @ 50/60Hz
Power Consumption3W
Environmental
Operating/Storage Temperature14 to 140°F (-10 to 60°C)
Operating/Storage Humidity20 to 90% non-condensing RH
Remote Unit
Connectors1 x HDMI-A port for HDTV or computer display;
1 x RJ45 port for receiving video/audio signals;
ResolutionHDTV: Up to 1080p;
Computer: Up to 1920 x 1200
Regulatory ApprovalsCE, FCC, RoHS
Question: Is there a recommended managed switch?
Answer: Thank you for your inquiry,

NTI does not recommend any specifc managed switch for the ST-IPHD-LC solution. That being said, we do have a couple of notes to keep in mind depending on your application:

For a point-to-many configuration, a standalone network with an unmanaged network switch, hub, or router can be used instead of a managed network switch. It is not recommended to use any other network devices on this standalone network as it may cause a degradation in performance.

Many-to-many configuration requires a Managed network switch with VLAN/IGMP support-
  • The managed switch must support port based IEEE 802.1Q VLAN, IGMP, and permit duplicate IP addresses across the VLAN domains.
  • Each VLAN acts as a separate HDMI Over IP Channel on the network.
  • Number of local and remote units that can be used is dependent on the backplane bandwidth of the switch.
  • Cascade managed switches up to 3 levels, allowing the farthest display to be located up to 1,000 feet away from the source device. Each receiver can be located up to 330 feet away.
  • NOTE, this configuration is not compatible with Cisco 2960 switch.
For more information of setting up and managing your ST-IPHD-LC units, please refer to the NTI ST-IPHD-LC Manual.
