NTI Mini HDMI Extender via Two CAT5e/6

ST-C5HD-MINI

$80.00

Discontinued
For upgrade or replacement options: Contact Us

The NTI XTENDEX ST-C5HD-MINI Mini HDMI Extender transmits digital video and audio signals up to 200 feet using two CAT5e/6 cables. The NTI ST-C5HD-MINI consists of a local unit that connects to an HDMI source and a remote unit that connects to an HDMI display.

NTI ST-C5HD-MINI Features and Benefits:

  • Supports HDTV resolutions to 1080p and computer resolutions to 1920x1200 (WUXGA).
  • Transmits an HDMI signal over two CAT5e/6 cables (not included).
  • HDMI features supported:
    • Deep color
    • x.v.Color
    • Dolby TrueHD and DTS
  • HDCP compliant.
  • No power supply is necessary.
  • No software required.

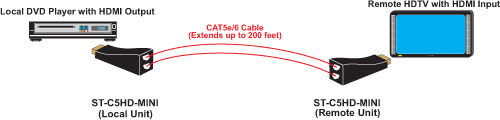

NTI ST-C5HD-MINI Diagram
NTI Mini HDMI Extender Diagram
(ST-C5HD-MINI depicted here)

NTI ST-C5HD-MINI Specifications:

Mechanical
Width1.02 in.
Height1.56 in.
Depth2.56 in.
Local Unit
Connectors1 x HDMI; 1 x RJ45 for sending video/audio;
1 x RJ45 for DDC signal
CompatibilityComputer or HDTV source with HDMI output
Remote Unit
Connectors1 x HDMI; 1 x RJ45 for sending video/audio;
1 x RJ45 for DDC signal
ResolutionHDTV 1080p; Computer 1920 x 1200 (WUXGA)
Regulatory ApprovalsCE, FCC, RoHS
