4-Port Desktop Keyboard/Mouse Switch, 3x USB 3.0 Peripheral Port (CAC), Audio
SVKM140-001
Save $239.71
Model: 4 Port w/ Audio & USB Hub
The Cybex SVKM140 is a 4-port desktop Keyboard/Mouse switch featuring audio, and 3x USB 3.0 peripheral ports. USB peripheral ports can be used to switch any USB device between the connected PCs such as printers, flash drives, CAC readers, touch screen devices, etc.
Industry-leading security features are complemented with a range of capabilities designed to support users who need to interact with multiple computer systems and peripherals simultaneously. These KM switches delivers the ideal solution for streamlining access to critical information from multiple systems. Emerson KM switcehs can support up to four systems with a single keyboard and mouse. In addition, the switches can be easily configured to display content in dual, triple, or quad head monitor configurations, allowing the 4-port KM switch to support up to 16 monitors at once.
Cybex SVKM140 Benefits
- Access: Simultaneous access of up to four computers or networks using a single keyboard and mouse
- Enhanced Usability: Managed copy and paste of files and text between sources helps save time and increases accuracy
- Zero Delay Switching: Mouse and keyboard switching via emulation assures zero delay in switching time between connected sources
- Independent Audio and USB Switching: Easily switch audio and USB 3.0 (SVKM140) peripherals independently of keyboard and mouse
- Streamlined, Flexible Connectivity: Three USB 3.0 ports on the front panel of the SVKM140 enable easy connectivity to external USB devices, quick data transfer and high speed charging of mobile devices

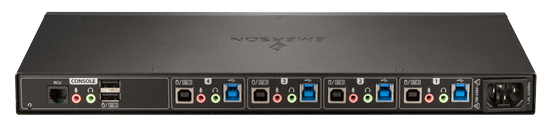

Rear of the Cybex SVKM140
Cybex SVKM140 Features
- Cursor navigation switching lets users switch control between systems by simply moving the mouse cursor from one display monitor to another. Both audio and keyboard follow the cursor from one computer to the next.
- Instant mouse and keyboard switching via emulation assures zero delay when switching between systems.
- Independent audio and USB switching gives users the ability to freeze audio and USB devices to a specific channel so these feeds are maintained as the cursor switches between system monitors.
- Managed copy and paste allows content to be copied from one system to another. Copy and paste can be managed with built-in controls to specify what can be copied, such as allowing a user to copy numbers only in a specific format.
- High-speed mobile device charging port provides a quick way to charge mobile phones and other devices.
- Pre-set display configurations are easily modified for specific environments with a user-friendly administrator tool, enabling flexible assignment of USB devices for each user.
Avocent Cybex SVKM140-001 Specifications:
| Mechanical | |
| Part Number | SVKM140-001 |
| Height | 1 in. (2.8 cm.) |
| Width | 13.7 in. (34.2 cm.) |
| Depth | 5 in. (12.5 cm.) |
| Weight | 3.0 lbs. (3.2 kg.) |
| Environmental | |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Storage Temperature | -4° to 140°F (-20° to 60°C) |
| Power | |
| Operating Voltage | 100 - 240 VAC |
| Power Frequency | 50/60 Hz |
| Input Power | 35W Max Internal |
| Enclosure | Steel with Plastic Front Panel |
| USB Peripherals | 3 x USB (3.0) Super Speed |
| Audio Input/Output | 2 x 3.5mm stereo female |
| Computer Peripherals | USB Type-B |
| Standards | |
| Certifications | CE, RCM, FCC class B, VCCI, TUV US, TUV Canada |
| Warranty | 2 Years |
Avocent Cybex (by Vertiv) SVKM140 is also known as SVKM 140
UPC 636430076102
EAN 0636430076102
Question: How to use the front USB ports on a SVKM140. I can't find any documentation on this.
Answer: This switch has (3)USB 3.0 which can be switched independently of keyboard/mouse/video. These ports can also be Enabled/Disabled per channel as well as Frozen for ensuring transfers before switching. There should be some options in the On Screen Display for this as well and could be the cause for issues. While I'll continue to look for more, here is a little more I was able to find about the SV Switches.
Question: Will the SCKM140-001 KVM switch recognize a keyboard with a built-in CAC card/badge reader? Thank you.
Answer: Thank you for your inquiry,
The USB port at the back of the unit for keyboard only supports standard keyboard connection ("USB-HID" signal passthrough) due to security requirements for NIAP-Certifying a KVM Switch. If you want to connect a keyboard with built-in CAC card/badge reader, you should be able to connect it at the front USB port of the unit, and leave they keyboard port empty. However, beware that this would bypass the NIAP security functionality for preventing keylogging the keyboard. The safest configuration would be a standard wired keyboard, and a stand-alone CAC reader.
Read more about NIAP Secure KVM Certification.
Question: What features for this km switch require software installed on the PC and which do not? I am looking at controlling 3-4 laptops 2 of which I don't have administrator access to and probably won't be able to install any software for.
Answer: Thank you for your inquiry,
For the most part the Avocent SVKM140 does not require any software for regular operation; Avocent only provides separate drivers for supporting "Copy-Paste" across computer sources, and for Multi-Monitor source switching.
Question: Can you daisy-chain these units
Answer: Thank you for your inquiry,
The Avocent Vertiv SVKM140 units are designed to function individually and cannot be daisy-chained together.
Please feel free to contact your KVM Switches Online sales representative directly for a recommendation on a command center solution based on your application.
Question: Can we use SVKM140 for Chromebox device with Chrome OS?
Answer: Thank you for your inquiry,
Avocent (by Vertiv) has tested this and found that the Chromebox is incompatible with the SVKM140-001. It doesn't respond to keyboard and mouse function altogether and therefore cannot be used together at the moment. Cursor navigation will not work as well.
Please let us know if there is anything else we can help you with!
Question: What OS is this unit compatible with? My users work in both Windows and Mac OS environments.
Answer: Thank you for your inquiry. This device will work with the following operating systems:
- Microsoft? Windows?
- Red Hat?, Ubuntu? or any other Linux? platform
- Mac OS? X version 10.3 or higher
