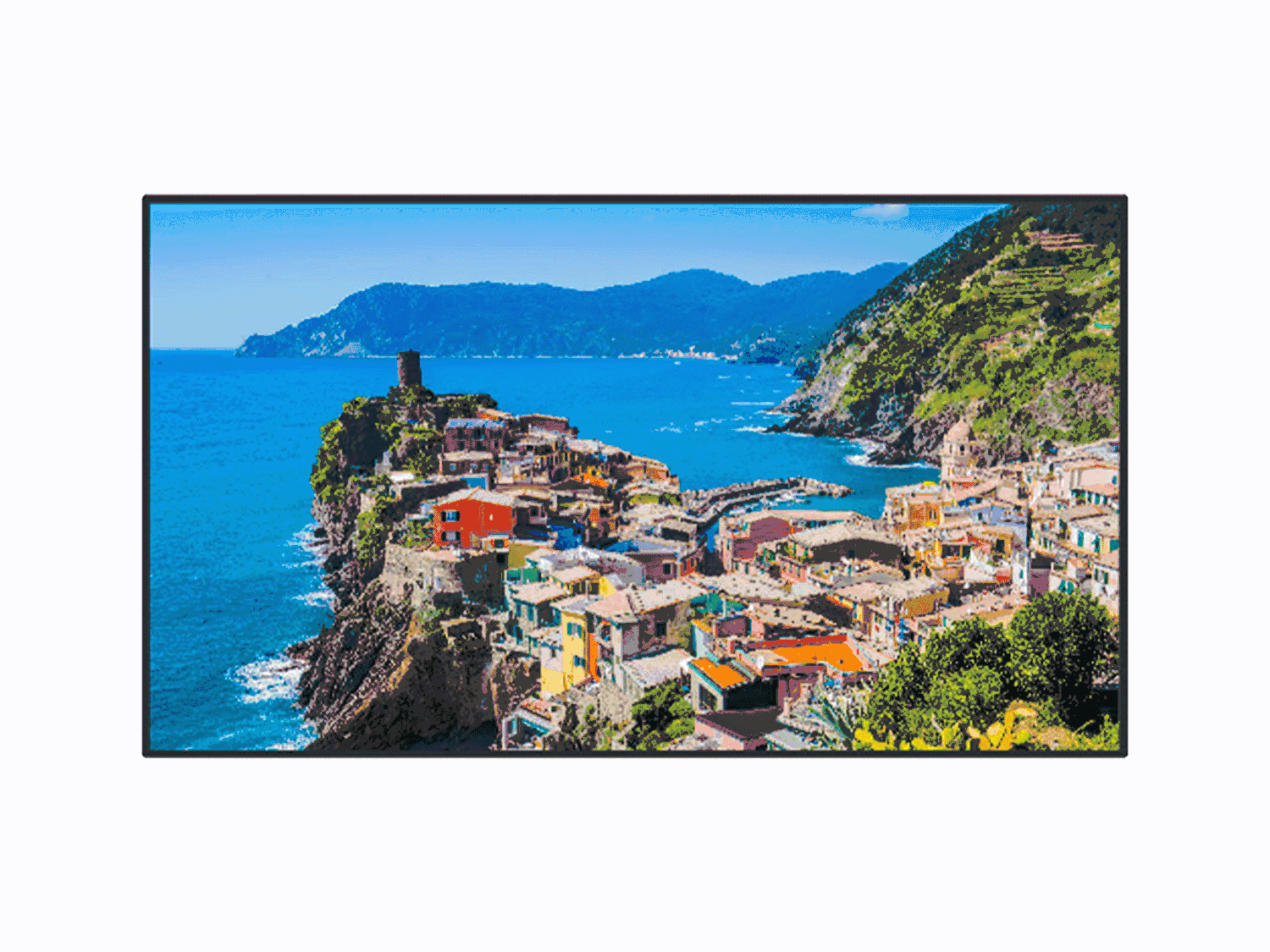

Panasonic 75" 4K UHD LED LCD Standard Indoor SDM Display
TH-75EQ2W
Save $732.00
Panel Size: 75in
Panasonic TH-75EQ2W
75" 4K UHD LED LCD Standard Indoor SDM Display 500 cd/m²
Large 75" 4K professional display featuring a thin and stylish design offering high level digital signage with easy installation and high connectivity. Ideal for corporate and retail environments.
Panasonic TH-75EQ2W Features
- Easy to connect peripherals (camera/speaker) directly to display
- Increased input type and number of available inputs
- Function slot for increased functionality
- Higher visibility due brightness typically found on higher end products
- Installation flexibility - portrait and tilt supported
TH-75EQ2W Resources
Panasonic TH-75EQ2W Specifications
| Display | |
| Panel Size | 74.5-inch (1892.7 mm) |
| Aspect Ratio | 16:9 |
| Effective Display Area (W x H) | 1649.6 x 927.9 mm (64.94" x 36.53") |
| Resolution (H x V) | 3840 x 2160 |
| Brightness (Typ) | 500 cd/m² |
| Contrast Ratio | 5000:1 |
| Response Time | 9.5 ms |
| Viewing Angle (Horizontal/Vertical) | 178°/ 178° (CR≧10) |
| Panel Surface Treatment | Anti-glare type (Haze 25 %) |
| Terminals | |
| HDMI In | TYPE A Connector x 3 (HDCP2.2 supported) |
| PC In/Audio In (L/R) | Mini D-sub 15-pin x 1 (Female)/Stereo Mini Jack (M3) x 1 |
| Serial | D-sub 9-pin x 1, RS232C Compatible |
| Audio Out | Stereo Mini Jack (M3) x 1 |
| LAN | RJ45 x 1, RJ45 10BASE-T/100BASE-TX |
| USB | Type A: DC 5 V/1 A, USB 3.0 is supported, Type A: DC 5 V/2 A, USB 2.0 is supported, Type C: max ~ 60W (Power Delivery compatible), USB2.0 is supported, DisplayPort Alternate mode compatible |
| SLOT | SDM-S / SDM-L, 3.3 V/max.1.1 A, 12 V/max 5.5 A |
| Audio | |
| Built-in Speaker | 20 W [10 W + 10 W] |
| Electrical | |
| Power Requirements | AC 110-240 V 50 Hz / 60 Hz |
| Power Consumption | 385 W |
| Power off condition | Approx. 0.3 W |
| Standby condition | Approx. 0.5 W |
| Mechanical | |
| Dimensions (W × H × D) | 1684 x 962 x 96 mm (66.28" x 37.87" x 3.76") |
| Weight | 37.3 kg (82.2 lbs.) |
| Bezel width | 14.9 mm (0.59") (T/R/L/B) |
| Wall-hanging pitch | VESA Compliant 600 x 400 mm (23.6" x 15.8"), M8 |
| Orientation | Landscape/Portrait |
| Tilting Angle | 0 - 20 degrees forward/backward with landscape/portrait setting |
| Operating time | 18 h/day |
| Operating environment | Temperature: 0 °C to 40 °C (32 °F to 104 °F)/Humidity: 20-80 % (Non condensation)/for up to 0-1400 m (4593 ft) altitude. Temperature: 0 °C to 35 °C (32 °F to 95 °F)/Altitude 1400-2800 m (4593 ft to 9186 ft) |
