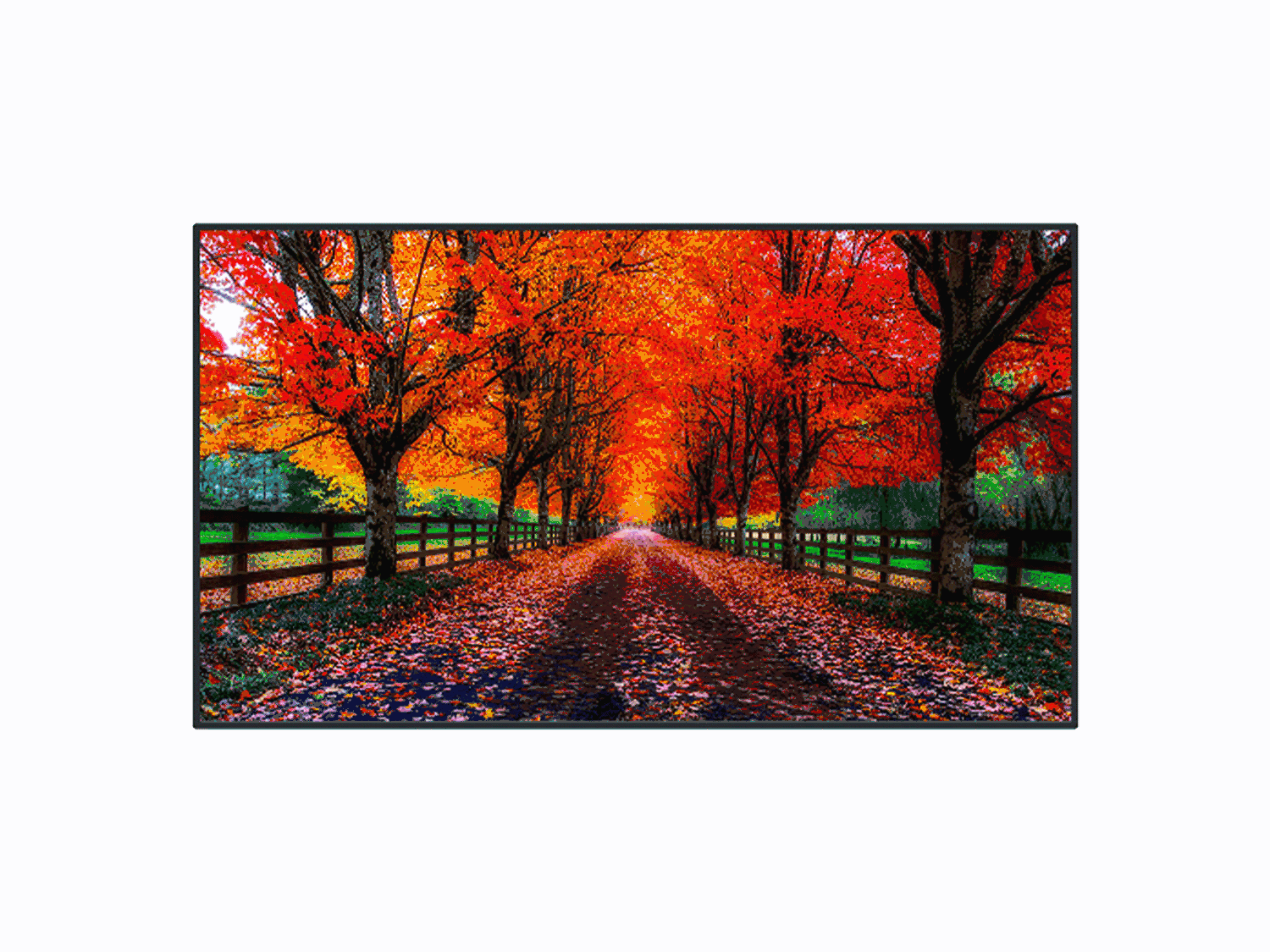

Panasonic 75" 4K UHD LED LCD Professional SDM Display
TH-75SQ1HW
Save $1,352.00
Panasonic TH-75SQ1HW
75" 4K UHD LED LCD Professional SDM Display 1,500 cd/m˛
The SQ1H Series is a model that uses panels with a high brightness of over 1000cd/m˛, so it is compatible with installation in atriums exposed to glare and outdoor display windows. Compatible with the "12-axis Color Management Function" and "HDR". Thoroughly displays the rich colors of 4K images. With easy, vertical installation, various types of installation have become possible. Also offering energy efficiency and high environmental reliability, this model is capable of constant, 24/7 operation. The SQ1H Series is equipped with the IntelŽ SDM specification slot standard that supports 4K signals. Combined with the interface board, you can easily use a built-in PC and add various interfaces. DIGITAL LINK function enables simple Installation and low system costs. By connecting the DisplayPort input/output terminals in a daisy chain, 4K images can be simultaneously displayed.
Panasonic TH-75SQ1HW Features
- 75", 1500 cd/m˛, 4K with slim and stylish design and 24/7 operation
- Supports HDR (PQ and HLG), 12-axis Color Management Function and BT.2020 Emulation
- A slot with IntelŽ SDM (Smart Display Module) specifications that supports 4K signals
- Auto Brightness Adjustment function for efficient display operation
TH-75SQ1HW Resources
Panasonic TH-75SQ1HW Specifications
| Display | |
| Panel Size | 75-inch (1892.7 mm) |
| Panel type / Backlight | ADS / Direct LED |
| Aspect Ratio | 16:9 |
| Effective Display Area (W x H) | 1649.6 ｍm / 927.9 mm (65.0" x 36.6") |
| Resolution (H x V) | 3840 x 2160 |
| Brightness (Typ) | 1,500 cd/m˛ |
| Contrast Ratio | 1200:1 |
| Dynamic Contrast Ratio | 50000:1 |
| Max. Display Colors | Approx. 1.07 Billion |
| Response Time | 8.0 ms (G to G) |
| Viewing Angle (Horizontal/Vertical) | 178°/ 178° (CR≧10) |
| Panel Life Time (typ.) | Approx. 50000 hours |
| Panel Surface Treatment | Anti-glare type (Haze 1 %) |
| Terminals | |
| HDMI In | HDMI Type A Connector x 2, 4K Compatible (HDCP2.2) |
| Display Port Input | Display Port x 1 (HDCP2.2) |
| Display Port Output | Display Port x 1 (HDCP1.4) |
| DVI-D IN | DVI-D 24-pin x 1 |
| Serial | D-sub 9-pin x 1, RS-232C Compatible |
| IR in / IR out | Stereo Mini Jack (Φ3.5 mm) x 1/ x 1 |
| Audio In | Stereo Mini Jack (Φ3.5 mm) x 1 Shared video input except USB and MEMORY VIEWER 0.5 V [rms] |
| Audio Out | Stereo Mini Jack (Φ3.5 mm) x 1 Variable (- ∞ - 0 dB) (1 kHz 0 dB Input,10 kΩ Load) 0.5 V [rms] |
| LAN | RJ45 x 1 compatible with PJLinkTM RJ45 10BASE-T/100BASE-TX |
| Digital Link / LAN | RJ45 x 1 compatible DIGITAL LINK For connection PJLinkTM RJ45 x 1 100BASE-TX, compatible with Long reach mode (HDCP2.2) |
| USB | USB Connector (Type A) x 2 (DC 5V / MAX 2A, DC 5V / MAX 1A Compatible) , (USB 3.0 is supported) |
| Sensor | 4-pole sub-mini Jack (Φ2.5 mm) x 1 |
| Slot | IntelŽ SDM specification Corresponding size SDM-S / SDM-L, Supply power 3.3 V / MAX 1.1 A, 12 V / MAX 5.5 A |
| Audio | |
| Built-in Speaker | 20 W [10 W + 10 W] |
| External Speaker Out | 30 W [15 W + 15 W] 10%THD |
| Electrical | |
| Power Requirements | AC 110-240 V 50 Hz / 60 Hz |
| Power Consumption | 720 W |
| On Mode Average Power Consumption | 586 W |
| Power off condition | Approx. 0.3 W |
| Standby condition | Approx. 0.5 W |
| Mechanical | |
| Dimensions (W × H × D) | 1684 x 962 x 96 mm (66.3" x 37.9" x 3.8") |
| Weight | Approx. 42.2 kg (93 lbs) |
| Bezel Color | Black |
| Bezel width | T/B/L/R 14.9 mm (0.59") |
| Carton Dimensions (W x H x D) | 1870 x 1143 x 280 mm (73.7" x 45" x 11.1") |
| Wall-hanging pitch | 800 x 400 mm (31.5" x 15.8"), M8 |
| Orientation | Landscape/Portrait |
| Tilting Angle | Landscape : 0 - 20 degrees forward / backward Portrait : 0 - 20 degrees forward / backward |
| Operating time | 24 h/day |
| Operating environment | : 0 °C to 40 °C (32 °F to 104 °F)/Humidity: 20-80 % (Non condensation)/for up to 0-1400 m (4593 ft) attitude. : 0 °C to 35 °C (32 °F to 95 °F)/Altitude 1400-2800 m (4593 ft to 9186 ft) |
