24-Port 4K HDMI USB KVM Switch

UNIMUX-HD4K-24

$3,330.00$3,062.07
Save $267.93
KVM Ports: 24
FREE Shipping on orders over $100

The UNIMUX-HD4K-24 HDMI USB 24-Port KVM Switch allows a user to control up to 32 Ultra-HD 4Kx2K 30Hz USB computers with one USB keyboard, USB mouse and 4K HDMI monitor. Dedicated internal microprocessors emulate keyboard and mouse presence to each attached CPU 100% of the time so all computers boot error-free.

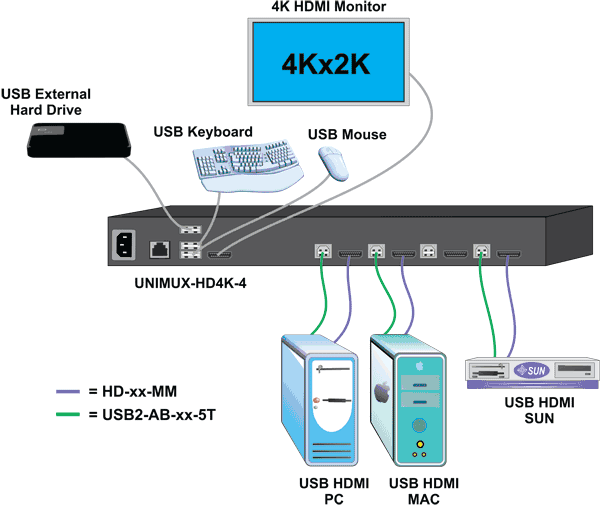

NTI UNIMUX-HD4K-24 4K HDMI KVM Switch Application Diagram

  • Control 24 HDMI USB computers or devices from one user station
  • Supports Ultra-HD 4Kx2K resolutions to 3840x2160 (30Hz), 2K resolution 2048x1080 (60Hz) and HDTV resolutions to 1080p (60Hz).
  • Compatible with USB computers (PC, SUN and MAC).
  • Switch sources through the front panel buttons, hot-key keyboard commands, OSD, or RS232.
  • Two transparent USB 2.0 ports (low/full/high speed), in addition to keyboard and mouse ports, for connecting USB devices such as printers, game controllers, USB flash drives, touch screen monitors, whiteboards, etc.
  • Features NTI's patented true autoboot USB switching - all attached computers can be booted simultaneously.
  • High quality steel construction.
  • Flash upgradeable.
  • 2U 19" Rackmount kit included.

UNIMUX-HD4K-24 Package Contents

NTI UNIMUX-HD4K-24 Package Contents

  • (1) UNIMUX-HD4K-24 USB 4K Video KVM Switch
  • (1) Rack mount kit
  • (1) US Power Cord
  • (1) DB9 Female-to-RJ45 Female adapter
  • (1) 5 foot RJ45-to-RJ45 CAT5 patch cable
  • (4) Rubber feet
  • (1) 2-Year Standard Warranty

UNIMUX-HD4K-24 Resources

NTI UNIMUX-HD4K-24 Manual NTI UNIMUX-HD4K-24 Brochure (PDF)
NTI UNIMUX-HD4K-24 Manual (PDF)
UNIMUX-HD4K-24 Firmware (Link)
UNIMUX-HD4K-24 Control Program (Link)

NTI UNIMUX-HD4K-24 Specifications

Dimensions
  • Without supplied rackmount kit: 15.32"W x 6.82"D x 3.5"H (389 x 173 x 88 mm)
  • With supplied rackmount kit: 19"W x 6.82"D x 3.5"H (483 x 173 x 88 mm)
Weight7.8 lbs
Hosts
  • Female HDMI-A connectors.
  • Supports USB-enabled computers (PC, SUN, and MAC) with HDMI video.
  • Multiplatform support: Windows 2000/XP/Vista/7/8/10, Windows Server 2000/2003/2008/2012, Solaris, Linux, FreeBSD, and MAC OS 9/10.
  • Compliant with HDMI 1.4 and HDCP 1.4 standards.
Monitor
  • Supports Ultra-HD 4Kx2K resolutions to 3840x2160 (30Hz), 2K resolution 2048x1080 (60Hz), and HDTV resolutions to 1080p (60Hz).
  • One female HDMI-A connector.
  • Compliant with HDMI 1.4 and HDCP 1.4 standards.
Devices
  • Two female USB 1.1 Type A connectors for keyboard and mouse.
    • Supports full-speed (12 Mbps) or low-speed (1.5 Mbps) USB keyboard and mouse.
    • Compatible with most USB keyboards and mice, including USB IntelliMouse.
    • Keyboard and mouse are hot-pluggable.
    • Supports SUN and MAC extra keys.
  • Two transparent female USB 2.0 Type A connectors for additional USB devices.
    • Supports high-speed (480 Mbps), full-speed (12 Mbps) and low-speed (1.5 Mbps) USB devices including, but not limited to, touchscreens monitors, CAC card readers, printers, scanners, and thumb drives.
Protocols
  • HTTP, HTTPS
  • TCP/IP, DHCP, UDP, ARP
  • IPV4
Power
  • 110 to 220 VAC at 50 or 60Hz via country-specific AC adapter.
  • Power consumption: 15W
Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C).
  • Storage temperature: -22 to 140°F (-30 to 60°C).
  • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
Regulatory Approval
  • CE, RoHS
  • TAA compliant
Warranty2-Years
Cables
  • Interface cables between your computers and the switch are required for proper operation. (Cables not included)
    • Use male-to-male HDMI cables (HD-xx-MM) and male USB Type A to male USB Type B cables (USB2-AB-0-5M-5T) to connect HDMI USB computers to the switch.
  • 5-foot (1.5-meter) CAT5e patch cable and RJ45F-DB9F adapter included for RS232 control.
Compatible NTI Products
Question: What are the weights of the UNIMUX-HD4K-24 and UNIMUX-HD4K-32? Thank you.
Answer: Thank you for your inquiry,

See below for the product weights of each of NTI's 4K HDMI USB series KVM switches:Please let us know if there is anything else we can ever help you with!
