DVI HDBaseT-Lite Extender System (1080p@70m) (HDBaseT Class B)
VE601
Save $57.55

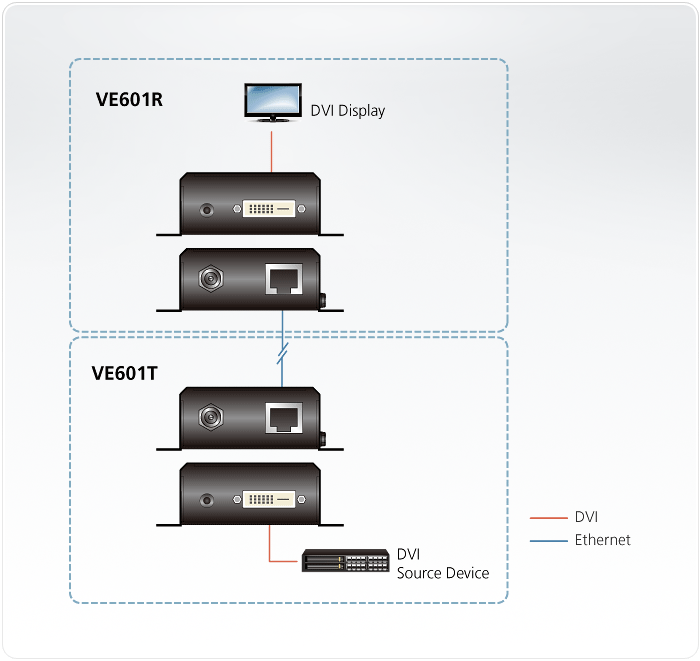

The VE601 DVI HDBaseT-Lite Extender is able to extend a DVI 1080p display up to 70 m using an Ethernet cable. This combination of ATEN and HDBaseT technology even supports sharing 1920 x 1200 media up to 40 m away, offering a simple, adaptable, and cost-effective solution for any professional A/V installation.
The VE601 DVI HDBaseT-Lite Extender is the perfect solution for professional A/V installations that require video signal interference protection, such as in medical and military installations. With its lightweight and easy-to-mount design, not to mention slip-resistant DC Jack lock mechanism, the VE601 can be installed nearly anywhere while ensuring peace of mind with its unerring reliability.
Product Features
- HDBaseT Connectivity - extends a DVI connection up to 70 meters via a single Ethernet cable
- HDBaseT Anti-Jamming - resists signal interference during video transmission using HDBaseT technology
- Rack-Mountable
Package Includes
- 1x VE601T/R DVI HDBaseT-Lite Extender
- 2x Power Adapters
- 1x User Instructions
Product Specifications
| Video Input | |
| Interfaces | VE601R: N/A VE601T: 1 x DVI-D Female |
| Impedance | VE601R: N/A VE601T: 100Ω |
| Max Distance | VE601R: N/A VE601T: 1.8 m |
| Video Output | |
| Interfaces | VE601R: 1 x DVI-D Female VE601T: N/A |
| Impedance | VE601R: 100Ω VE601T: N/A |
| Video | |
| Max Data Rate | VE601R: 10.2 Gbps (3.4 Gbps Per Lane) VE601T: 10.2 Gbps (3.4 Gbps Per Lane) |
| Max Pixel Clock | VE601R: 340 MHz VE601T: 340 MHz |
| Compliance | VE601R: DVI (3D, Deep Color); HDCP compatible VE601T: DVI (3D, Deep Color); HDCP compatible |
| Max Resolutions/Distance | VE601R: Up to 1920 x 1200@35 m (Cat 5e/6) / 40 m (Cat 6a); 1080p@60 m (Cat 5e/6) / 70 m (Cat 6a) VE601T: Up to 1920 x 1200@35 m (Cat 5e/6) / 40 m (Cat 6a); 1080p@60 m (Cat 5e/6) / 70 m (Cat 6a) |
| Power | |
| Connectors | VE601R: 1 x DC Jack with locking VE601T: 1 x DC Jack with locking |
| Consumption | VE601R: 5V DC, 4.23W VE601T: 5V DC, 1.85W |
| Environmental | |
| Operating Temperature | VE601R: 32°-104°F (0°-40°C) VE601T: 32°-104°F (0°-40°C) |
| Storage Temperature | VE601R: -4°-140°F (-20°-60°C) VE601T: -4°-140°F (-20°-60°C) |
| Humidity | VE601R: 0-80% RH, Non-Condensing VE601T: 0-80% RH, Non-Condensing |
| Physical Properties | |
| Housing | VE601R: Metal VE601T: Metal |
| Weight | VE601R: 0.55 lb (0.25 kg) VE601T: 0.55 lb (0.25 kg) |
| Dimensions (L x W x H) | VE601R: 4.06 x 3.43 x 1.18 in. (10.30 x 8.70 x 3.00 cm) VE601T: 4.06 x 3.43 x 1.18 in. (10.30 x 8.70 x 3.00 cm) |
UPC 672792006623
EAN 0672792006623
