DVI HDBaseT-Lite Transmitter (1080p@70m) (HDBaseT Class B)
VE601T
Save $28.78

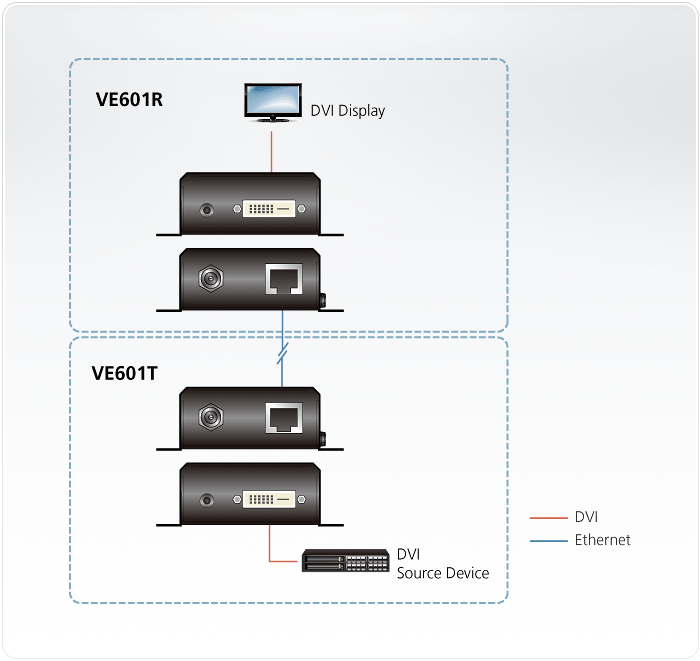

The VE601T DVI HDBaseT-Lite Extender is able to extend a DVI 1080p display up to 70 m using an Ethernet cable. This combination of ATEN and HDBaseT technology even supports sharing 1920 x 1200 media up to 40 m away, offering a simple, adaptable, and cost-effective solution for any professional A/V installation.
The VE601 DVI HDBaseT-Lite Extender is the perfect solution for professional A/V installations that require video signal interference protection, such as in medical and military installations. With its lightweight and easy-to-mount design, not to mention slip-resistant DC Jack lock mechanism, the VE601 can be installed nearly anywhere while ensuring peace of mind with its unerring reliability.
Product Features
- HDBaseT Connectivity - extends a DVI connection up to 70 meters via a single Ethernet cable
- HDBaseT Anti-Jamming - resists signal interference during video transmission using HDBaseT technology
- Rack-Mountable
Package Includes
- 1x VE601T DVI HDBaseT-Lite Transmitter
- 1x Power Adapters
- 1x User Instructions
Product Specifications
| Video Input | |
| Interfaces | 1 x DVI-D Female |
| Impedance | 100Ω |
| Max Distance | 1.8 m |
| Video Output | |
| Interfaces | N/A |
| Impedance | N/A |
| Video | |
| Max Data Rate | 10.2 Gbps (3.4 Gbps Per Lane) |
| Max Pixel Clock | 340 MHz |
| Compliance | DVI (3D, Deep Color); HDCP compatible |
| Max Resolutions/Distance | Up to 1920 x 1200@35 m (Cat 5e/6) / 40 m (Cat 6a); 1080p@60 m (Cat 5e/6) / 70 m (Cat 6a) |
| Power | |
| Connectors | 1 x DC Jack with locking |
| Consumption | 5V DC, 1.85W |
| Environmental | |
| Operating Temperature | 32°-104°F (0°-40°C) |
| Storage Temperature | -4°-140°F (-20°-60°C) |
| Humidity | 0-80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.55 lb (0.25 kg) |
| Dimensions (L x W x H) | 4.06 x 3.43 x 1.18 in. (10.30 x 8.70 x 3.00 cm) |
UPC 672792006630
EAN 0672792006630
