HDMI HDBaseT-Lite Extender with POH (4K@40m) (HDBaseT Class B)
VE802
Save $107.02

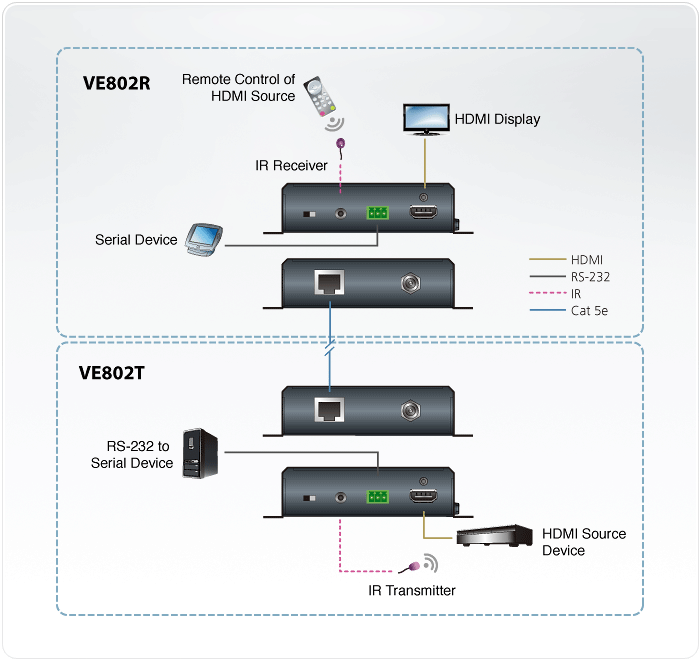

The VE802 HDMI HDBaseT-Lite Extender extends an HDBaseT signal up to 70m from the HDBaseT source using one Cat 5e/6/6a cable. VE802 supports RS-232 and IR signaling passthrough, allowing you to control the HDMI source device from the remote unit (VE802R) while also granting access to the HDMI display device from the local unit (VE802T). IR signals can also be extended in both directions. The VE802 features Power over HDBaseT (POH) which can send power over Cat 5e/6/6a cable without an additional power supply. The VE802 is HDMI (3D, Deep Color,4k) and HDCP compatible. The VE802 is perfect for a digital entertainment center or any installation that requires superior video quality.
Product Features
- HDBaseT Connectivity - extends an HDMI connection over a long distance via one Cat 5e/6/6a cable
- HDBaseT Anti-jamming - resists signal interference during high-quality video transmission using HDBaseT technology
- POH (Power over HDBaseT) - supplies power from Transmitter to Receiver over a long distance via one Cat 5e/6/6a cable
- Bi-directional RS-232 channel - allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
- Bi-directional IR channel - IR transmission is processed one direction at a time
- Rack- Mountable
Package Includes
- 1x VE802T/R HDMI HDBaseT-Lite Extender with POH
- 1x Power Adapter (VE802T)
- 1x IR Transmitter
- 1x IR Receiver
- 2x Terminal Blocks
- 1x User Instructions
Product Specifications
| Video Input | |
| Interfaces | VE802R: N/A VE802T: 1 x HDMI Type A Female |
| Impedance | VE802R: N/A VE802T: 100Ω |
| Max Distance | VE802R: N/A VE802T: 1.8 m |
| Video Output | |
| Interfaces | VE802R: 1 x HDMI Type A Female VE802T: N/A |
| Impedance | VE802R: 100Ω VE802T: N/A |
| Video | |
| Max Data Rate | VE802R: 10.2 Gbps (3.4 Gbps Per Lane) VE802T: 10.2 Gbps (3.4 Gbps Per Lane) |
| Max Pixel Clock | VE802R: 340 MHz VE802T: 340 MHz |
| Compliance | VE802R: HDMI (3D, Deep Color, 4K); HDCP Compatible; Consumer Electronics Control (CEC) VE802T: HDMI (3D, Deep Color, 4K); HDCP Compatible; Consumer Electronics Control (CEC) |
| Max Resolutions/Distance | Up to 4K@35m (Cat 5e/6) / 40m (Cat 6a); 1080p@60m (Cat 5e/6) / 70m (Cat 6a) *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4 |
| Audio | |
| Input | VE802R: N/A VE802T: 1 x HDMI Type A Female |
| Output | VE802R: 1 x HDMI Type A Female VE802T: N/A |
| Control | |
| RS-232 | Connector: 1 x Terminal Block, 3 pole Baud Rate: 19200, Data Bits:8, Stop Bits:1, no parity and flow control |
| IR | 1 x Mini Stereo Jack Female |
| Power | |
| Connectors | VE802R: 1 x DC Jack VE802T: 1 x DC Jack |
| Consumption | VE802R: 5V DC, 4W VE802T: 5V DC, 3.6W |
| Environmental | |
| Operating Temperature | VE802R: 32°-104°F (0°-40°C) VE802T: 32°-104°F (0°-40°C) |
| Storage Temperature | VE802R: -4°-140°F (-20°-60°C) VE802T: -4°-140°F (-20°-60°C) |
| Humidity | VE802R: 0-80% RH, Non-Condensing VE802T: 0-80% RH, Non-Condensing |
| Physical Properties | |
| Housing | VE802R: Metal VE802T: Metal |
| Weight | VE802R: 1.01 lb (0.46 kg) VE802T: 0.97 lb (0.44 kg) |
| Dimensions (L x W x H) | VE802R: 5.7 x 4.84 x 1.18 in. (14.49 x 12.30 x 3.00 cm) VE802T: 5.7 x 4.84 x 1.18 in. (14.49 x 12.30 x 3.00 cm) |
UPC 672792006074
EAN 0672792006074
