HDMI HDBaseT-Lite Transmitter with POH (4K@40m) (HDBaseT Class B)
VE802T
Save $53.51

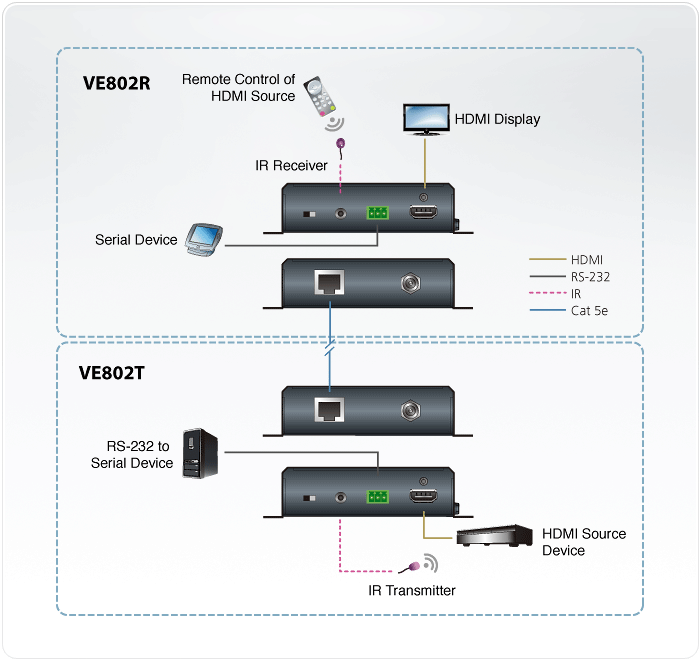

The VE802T HDMI HDBaseT-Lite Transmitter connects with HDBaseT receivers to extend signals up to 70m from the source using one Cat 5e/6/6a cable. It supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the remote unit (VE802R) while also granting access to the HDMI display device from the local unit (VE802T). IR signals can also be extended in both directions. The VE802T features Power over HDBaseT (POH) which can send power over Cat 5e/6/6a cable without an additional power supply. The VE802T is HDMI (3D, Deep Color,4k) and HDCP compatible. The VE802T is perfect for a digital entertainment center or any installation that requires superior video quality.
Product Features
- HDBaseT Connectivity - extends an HDMI connection over a long distance via one Cat 5e/6/6a cable
- HDBaseT Anti-jamming - resists signal interference during high-quality video transmission using HDBaseT technology
- POH (Power over HDBaseT) - supplies power from Transmitter to Receiver over a long distance via one Cat 5e/6/6a cable
- Bi-directional RS-232 channel - allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
- Bi-directional IR channel - IR transmission is processed one direction at a time
- Rack- Mountable
Package Includes
- 1x VE802T HDMI HDBaseT-Lite Transmitter with POH
- 1x Power Adapter
- 1x IR Transmitter
- 1x Terminal Block
- 1x User Instructions
Product Specifications
| Video Input | |
| Interfaces | 1 x HDMI Type A Female |
| Impedance | 100Ω |
| Max Distance | 1.8 m |
| Video Output | |
| Interfaces | N/A |
| Impedance | N/A |
| Video | |
| Max Data Rate | 10.2 Gbps (3.4 Gbps Per Lane) |
| Max Pixel Clock | 340 MHz |
| Compliance | HDMI (3D, Deep Color, 4K); HDCP Compatible; Consumer Electronics Control (CEC) |
| Max Resolutions/Distance | Up to 4K@35m (Cat 5e/6) / 40m (Cat 6a); 1080p@60m (Cat 5e/6) / 70m (Cat 6a) *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4 |
| Audio | |
| Input | 1 x HDMI Type A Female |
| Output | N/A |
| Control | |
| RS-232 | Connector: 1 x Terminal Block, 3 pole Baud Rate: 19200, Data Bits:8, Stop Bits:1, no parity and flow control |
| IR | 1 x Mini Stereo Jack Female |
| Power | |
| Connectors | 1 x DC Jack |
| Consumption | 5V DC, 3.6W |
| Environmental | |
| Operating Temperature | 32°-104°F (0°-40°C) |
| Storage Temperature | -4°-140°F (-20°-60°C) |
| Humidity | 0-80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.97 lb (0.44 kg) |
| Dimensions (L x W x H) | 5.7 x 4.84 x 1.18 in. (14.49 x 12.30 x 3.00 cm) |
UPC 672792006203
EAN 0672792006203
