Multicast HDMI Wireless Transmitter (1080p @ 30m)
VE849T

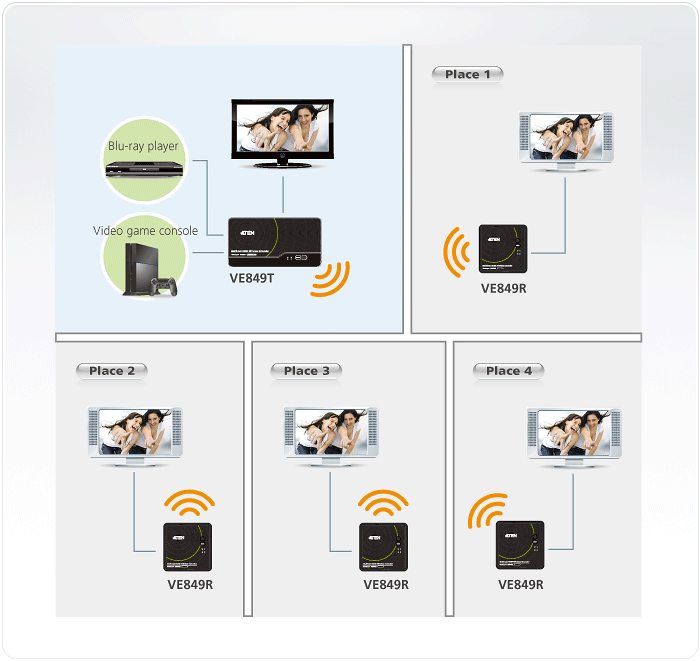

The VE849T Multicast HDMI Wireless Transmitter allows you to position HDMI displays up to 30m* away from HDMI sources when used in unison with up to 4 VE849R receivers. Easily connect two HDMI source devices, a local HDTV and up to four receivers (connected to remote HDTVs) wirelessly, while ensuring crystal clear image quality (Full 1080p), 5.1 channel Dolby digital audio and 3D technology. The IR remote control allows you to switch between HDMI source devices remotely from the receiver side, making watching up to one local and four wirelessly connected HDTVs simultaneously a breeze!
Product Features
- Connect 2 HDMI inputs to 5 HDMI outputs (1 local + 4 remote) via wireless extension*
- Wirelessly extend four HDMI displays up to 30m* from the HDMI source
- Connect and transmit wireless video content from your Blu-ray DVD player, media players, or other HDMI device wirelessly
- Multicast signal - 1 transmitter streams HDMI transmissions to 4 receivers simultaneously
- Supports Dynamic Frequency Selection (DFS) - greatly reduces Wi-Fi signal interference for improved transmission quality and stability
- Wireless 3D supported
- Wireless Full HD (1080p) and 5.1 channel Dolby with AC3 and DTS digital audio
- Superior video quality: 480p, 720p, 1080i, and 1080p (24 / 30 / 60fps)
- Keeps home theater electronic devices neatly out-of-sight
- Built-in IR receiver with IR blaster cable allows control of remote source devices
- WHDI Technology - Low latency <1ms
- HDCP compatible
- No software or driver installation needed
Package Includes
- 1x VE849T Multicast HDMI Wireless Transmitter
- 1x IR Remote Control with 2 AAA Batteries
- 1x IR Blaster Cable
- 1x Power Adapter
- 1x User Instructions
* Distance may vary depending on the actual environment; solid objects such as steel, concrete, or brick may cause interference and shorten the transmission distance.
Product Specifications
Video Input | |
Interfaces | 2 x HDMI Type A Female |
Impedance | 100 Ω |
Max Distance | 1.8 m |
Video Output | |
Interfaces | 1 x HDMI Type A Female |
Impedance | 100Ω |
Video | |
Max Data Rate | 6.75 Gbps (2.25 per Chan.) |
Max Pixel Clock | 225 MHz |
Compliance | HDMI (3D); HDCP Compatible |
Max Resolutions/Distance | Up to 1080p@30m |
Audio | |
Input | 2 x HDMI Type A Female |
Output | 1 x HDMI Type A Female |
Control | |
IR | 1 x 2.5mm Mini Stereo Jack Female |
Power | |
Connectors | 1 x DC Jack |
Consumption | 5V DC, 10W |
Environmental | |
Operating Temperature | 32°-104°F (0°-40°C) |
Storage Temperature | -4°-140°F (-20°-60°C) |
Humidity | 0-80% RH, Non-Condensing |
UPC 672792006678
EAN 0672792006678
