Multicast HDMI Wireless Receiver (1080p @ 30m)

VE849R

$424.00$303.45
Save $120.55

End-Of-Life (EOL)
For stock: Contact Us

The VE849R Multicast HDMI Wireless Receiver, when used in unison with the VE849T transmitter, allows you to position HDMI displays up to 30m* away from HDMI sources. Easily connect two HDMI source devices, a local HDTV and up to four receivers (connected to remote HDTVs) wirelessly, while ensuring crystal clear image quality (Full 1080p), 5.1 channel Dolby digital audio and 3D technology. The IR remote control allows you to switch between HDMI source devices remotely from the receiver side, making watching up to one local and four wirelessly connected HDTVs simultaneously a breeze!

Product Features

  • Connect 2 HDMI inputs to 5 HDMI outputs (1 local + 4 remote) via wireless extension*
  • Wirelessly extend four HDMI displays up to 30m* from the HDMI source
  • Connect and transmit wireless video content from your Blu-ray DVD player, media players, or other HDMI device wirelessly
  • Multicast signal - 1 transmitter streams HDMI transmissions to 4 receivers simultaneously
  • Supports Dynamic Frequency Selection (DFS) - greatly reduces Wi-Fi signal interference for improved transmission quality and stability
  • Wireless 3D supported
  • Wireless Full HD (1080p) and 5.1 channel Dolby with AC3 and DTS digital audio
  • Superior video quality: 480p, 720p, 1080i, and 1080p (24 / 30 / 60fps)
  • Keeps home theater electronic devices neatly out-of-sight
  • Built-in IR receiver with IR blaster cable allows control of remote source devices
  • WHDI Technology - Low latency <1ms
  • HDCP compatible
  • No software or driver installation needed

Package Includes

  • 1x VE849R Multicast HDMI Wireless Receiver
  • 1x Mini USB Power Adapter
  • 1x IR Receiver Cable
  • 1x HDMI Cable
  • 1x User Instructions

* Distance may vary depending on the actual environment; solid objects such as steel, concrete, or brick may cause interference and shorten the transmission distance.

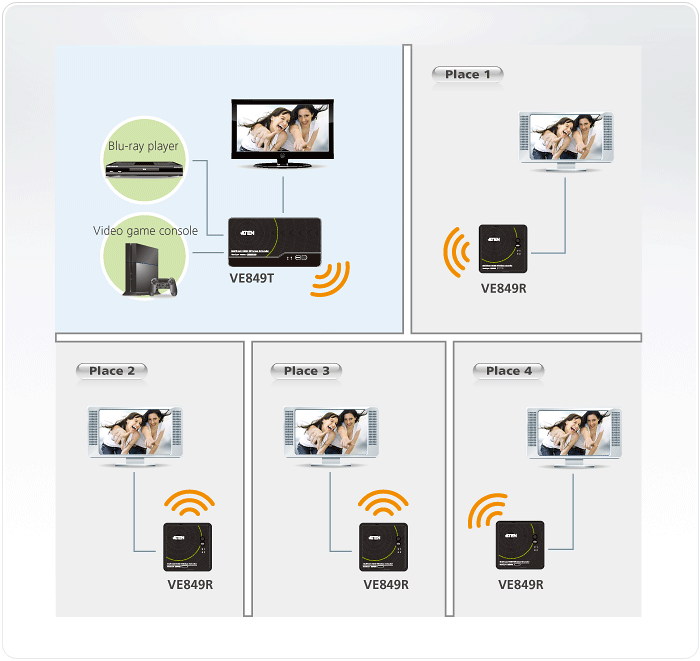

Product Use Diagram

Product Specifications

Video Input
InterfacesN/A
ImpedanceN/A
Max DistanceN/A
Video Output
Interfaces1 x HDMI Type A Female
Impedance100Ω
Video
Max Data Rate6.75 Gbps (2.25 per Chan.)
Max Pixel Clock225 MHz
ComplianceHDMI (3D); HDCP Compatible
Max Resolutions/DistanceUp to 1080p@30m
Audio
InputN/A
Output1 x HDMI Type A Female
Control
IR1 x 2.5mm Mini Stereo Jack Female
Power
Connectors1 x DC Jack (Mini USB)
Consumption5V DC, 7.5W
Environmental
Operating Temperature32°-104°F (0°-40°C)
Storage Temperature-4°-140°F (-20°-60°C)
Humidity0-80% RH, Non-Condensing
UPC / EAN Barcode icon
UPC 672792006685
EAN 0672792006685
