4 x 4 VGA Matrix Switch with Audio
VM0404
The VM0404 4x4 Video Matrix Switch connects four VGA source devices to four VGA monitors, displays, or projectors at the same time. It's steadfast unique features include: EDID mode selection for high compatibility, long signal range, easy source/display switching and matrix connections.
As a Matrix Switch, each input can be independently connected to any or all outputs. The audio and video inputs from each source device can also be switched independently - giving you the ultimate in flexibility and control in any multi-display audio/video installation.

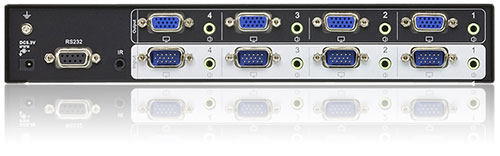

Rear view of the Aten VM0404 VGA Matrix switch
Features:
- Connects any of four VGA Video + Audio inputs to any of four VGA Video + Audio outputs
- Long distance transmission - up to 100 feet (30m)
- Easily switch between multiple sources and multiple displays
- Easy Operation:
- Front panel pushbuttons
- RS-232 serial controller
- Superior video quality - up to 1920 x 1440; VGA, SVGA, XGA, SXGA, UXGA, and WUXGA (1920 x 1200)
- Supports up to 300 MHz bandwidth for high performance video
- EDID Expert - selects the optimum EDID settings for smooth power-up and highest quality display
- Built-in bi-directional RS-232 serial port for high-end system control
- Independent switching of audio and video sources - each input can be independently connected to any or all outputs for flexibility
- Rack Mountable
- All-metal casing

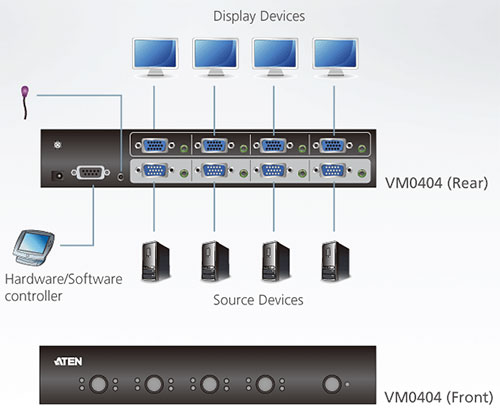

VM0404 Application Diagram
Package Includes:
- 1x VM0404 4x4 Video Matrix Switch with Audio
- 1x Power Adapter
- 1x User Instructions
VM0404 Specifications:
| Mechanical | |
| Height | 1.7 in. (4.2 cm.) |
| Width | 10.2 in. (26.0 cm.) |
| Depth | 3 in. (7.6 cm.) |
| Weight | 1.9 lbs. (0.87 kg.) |
| Housing | Metal |
| Environmental | |
| Operating Temperature | 32 ~ 122F (0~50 C) |
| Storage Temperature | -4~ +140F (-20~ +60C) |
| Humidity | 0~ 80% RH, NC |
| Power Consumption | DC5.3V, 2.7W |
| LED's | |
| Power | 1 (Green / Orange) |
| Port Selections | 16 green |
| Connectors | |
| Video Input | 4 x 15 pin HDB Male, Blue |
| Audio Output | 4 x Earphone Jack, Female, Green |
| Power | 1 x DC jack |
| Video Output | 4 x 15 pin HDB Female, Blue |
| Audio Input | 4 x Earphone Jack, Female, Green |
| IR Port | 1 x Mini Stereo Jack Female (Black) |
| Video Bandwidth | 300 MHz |
| Video Resolution | 1920 x 1440 @ 60Hz |
UPC 672792004353
EAN 0672792004353
