2 Port HDMI Splitter (1080p)
VOPEX-HD-2-LC

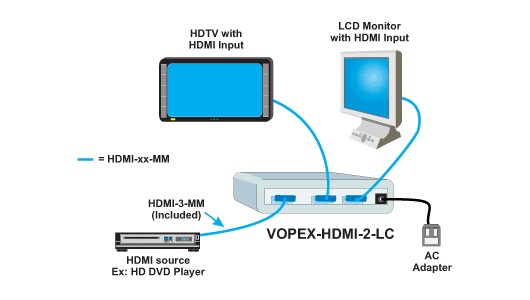

The HDMI Splitter enables two HDMI displays to be driven by a single HDMI source. The same crystal clear image is displayed on both monitors simultaneously.
- Supports HDTV resolutions to 1080p and computer resolutions to 1920x1200 (WUXGA).
- Plug and play functionality - no new software or drivers required.
- Ideal multiple display solution for home theaters, conferences, conventions, restaurants, schools, corporate training and presentations etc.
- HDCP compliant
- HDMI features supported:
- 12-bit Deep Color
- LPCM, Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, and DTS
- Bandwidth up to 340 MHz (10.2 Gbps)
- 3D
Product Specifications
| Video |
| Input: One female HDMI connector |
| Output: Two female HDMI connectors |
| Supports HDTV resolutions to 1080p and computer resolutions to 1920x1200 (WUXGA). |
| Compliant with HDMI and HDCP standards. |
| Control Methods |
| Front panel buttons with LED indication of port selection. |
| Power |
| 100 to 240 VAC at 50 or 60 Hz via AC adapter. |
| Dimensions |
| WxDxH (in): 3.25x1.87x0.94) |
| Package Includes |
| HDMI Switch |
| AC power adapter |
| User manual |
Question: Will it split HDMI out of a tv cable box (grande)? I've tried 2 separate $20 or so powered splitters with no success. Won't pass signal, even though function lights show green.
Answer: Thank you for your inquiry,
There are a couple of things that could cause that:
1) Which HDCP version does your Cable TV box use? - make sure the splitter supports that version or above.
2) Which HDMI version does your Cable TV box use? (i.e. HDMI 2.0, HDMI 1.2) - make sure the splitter supports that version or above.
When you find this information, please feel free to contact your KVM Switches Online sales representative for a recommendation based on your application.
Question: How many feet can the NTI VOPEX-HD-2-LC extend HDMI?
Answer: Thank you for your inquiry,
While the maximum cable distance for the NTI VOPEX-HD-2-LC would depend on a couple of factors such as the the HDMI cable quality (the use of a higher-grade cable when using a splitter is highly recommended due to the added resistance of connecting your devices through multiple ports), the resistance added from this 2 port VOPEX-HD-2-LC HDMI splitter would be mostly negligible, and you can generally follow HDMI spec:
HDMI can achieve up to 30-50ft, but most vendors like NTI state that 25ft max length is recommended for reliability. So, you could use a 25ft cable to this unit, and then another 25ft cable to the output.
Quick note on HDMI: digital signal video quality does not degrade over distance like with analog VGA - when the pixel clock integrity is low enough to not support full quality, the signal will just cut out. This allows you to simply see if it works or not.
A higher quality splitter, such as the Gefen GTB-HD4K2K-142C-BLK, will maintain pixel clock integrity better over especially longer distance. This unit also adds some really useful features if you will be using this splitter for signage or rely on it regularly (such as Fast Switching Technology - FST, and a built-in EDID emulator to ensure and maintain the correct resolution.
If you need to run long HDMI cables (30 feet or more), you may want to consider one of the following solutions for your application instead:
Active HDMI Splitter / Extender: SmartAVI HDX-400-PRO (4 port extended splitter)
- For more splitter-extender options, such as extension over IP/the Network, HDBaseT, etc., see the HDMI Splitters page.
NTI VOPEX-HD-2-LC + Active HDMI cables with chips (select 11 to 50ft or 51+ ft) OR HDMI Cable Boosters OR HDMI Video Extenders.
Answer: Thank you for your inquiry,
There are a couple of things that could cause that:
1) Which HDCP version does your Cable TV box use? - make sure the splitter supports that version or above.
2) Which HDMI version does your Cable TV box use? (i.e. HDMI 2.0, HDMI 1.2) - make sure the splitter supports that version or above.
When you find this information, please feel free to contact your KVM Switches Online sales representative for a recommendation based on your application.
Question: How many feet can the NTI VOPEX-HD-2-LC extend HDMI?
Answer: Thank you for your inquiry,
While the maximum cable distance for the NTI VOPEX-HD-2-LC would depend on a couple of factors such as the the HDMI cable quality (the use of a higher-grade cable when using a splitter is highly recommended due to the added resistance of connecting your devices through multiple ports), the resistance added from this 2 port VOPEX-HD-2-LC HDMI splitter would be mostly negligible, and you can generally follow HDMI spec:
HDMI can achieve up to 30-50ft, but most vendors like NTI state that 25ft max length is recommended for reliability. So, you could use a 25ft cable to this unit, and then another 25ft cable to the output.
Quick note on HDMI: digital signal video quality does not degrade over distance like with analog VGA - when the pixel clock integrity is low enough to not support full quality, the signal will just cut out. This allows you to simply see if it works or not.
A higher quality splitter, such as the Gefen GTB-HD4K2K-142C-BLK, will maintain pixel clock integrity better over especially longer distance. This unit also adds some really useful features if you will be using this splitter for signage or rely on it regularly (such as Fast Switching Technology - FST, and a built-in EDID emulator to ensure and maintain the correct resolution.
If you need to run long HDMI cables (30 feet or more), you may want to consider one of the following solutions for your application instead:
Active HDMI Splitter / Extender: SmartAVI HDX-400-PRO (4 port extended splitter)
- For more splitter-extender options, such as extension over IP/the Network, HDBaseT, etc., see the HDMI Splitters page.
NTI VOPEX-HD-2-LC + Active HDMI cables with chips (select 11 to 50ft or 51+ ft) OR HDMI Cable Boosters OR HDMI Video Extenders.
