Aten 4 Port DVI Video Splitter
VS164
Save $38.66
Model: 4 Port
ATEN (VS164) 4 Port DVI Video Splitter
The VS164 DVI Video Splitter duplicates and boosts the signals from a DVI video and audio source to four DVI displays and audio outputs. They are ideal for any type of broadcasting environment, classrooms, or by power computer users. The VS164 also features audio support and is able to be daisy chained for additional viewing.
ATEN (VS164) 4 Port DVI Video Splitter Features and Benefits:
- Connects computers with DVI graphics to multiple DVI compatible monitors or projectors
- Fully compliant with DVI-Digital and DVI-Analog
- Speaker enabled for audio enjoyment
- Maximize your viewers - Cascadable
- Maintains highest link video resolution (1600 x 1200)
- Supports DDWG (Digital Display Working Group) standard for DVI compliant monitors
- Installs in minutes

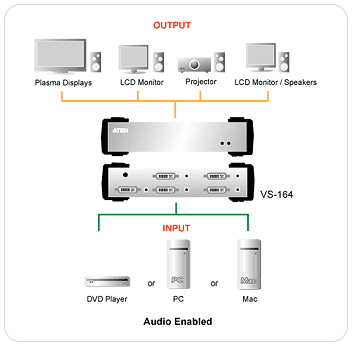

ATEN (VS164) 4 Port DVI Video Splitter Function Diagram
ATEN (VS164) 4 Port DVI Video Splitter Package Content:
1 x 4 Port DVI Video Splitter
1 x Power Adapter (DC 5.3V)
1 x User Manual
ATEN (VS164) 4 Port DVI Video Splitter Specifications:
| Case | |
| Width | 12.0 in. (30.0 cm) |
| Height | 8.0 in. (20.0 cm) |
| Length | 20.8 in. (53.0 cm) |
| Case Qty. | 5 |
| Package Dimensions | |
| Width | 4.0 in. (10.0 cm) |
| Height | 4.0 in. (10.0 cm) |
| Length | 11.0 in. (28.0 cm) |
| Housing | |
| Case | Metal |
| Weight | |
| Case Wt. | 14.3 lb. (6.5 Kg) |
| Package Wt. | 2.4 lb. (1.1 Kg) |
| Unit Wt. | 1.6 lb. (0.7 Kg) |
| Dimensions | |
| Depth | 3.5 in. (8.8 cm) |
| Width | 8.3 in. (21.0 cm) |
| Height | 2.2 in. (5.6 cm) |
| Video Resolution | 1600x1200 |
| Power Consumption | DC5.3V, 4.8W |
| Humidity | 0~80% RH, Noncondensing |
| Connectors (Input) | 1 x DVI Female, 1 x Earphone Jack Female |
| Operating Temperature | 32F~122F (0C~50C) |
| Storage Temperature | -4F~140F (-20C~60C) |
| Connectors (Output) | 4 x DVI Female, 4 x Earphone Jack Female |
| Signal Type | DVI-Digital and DVI-Analog |
UPC 672792133336
EAN 0672792133336
Question: What is the availability of the ATEN VS164 for 2015-2018
Answer: Thank you for your inquiry. We do not see any indication this product will be placed on the End-of-Life list, but inquires to the manufacturer have not been returned.
So, unfortunately, we cannot definitively say this product will be available through 2018.
Answer: Thank you for your inquiry. We do not see any indication this product will be placed on the End-of-Life list, but inquires to the manufacturer have not been returned.
So, unfortunately, we cannot definitively say this product will be available through 2018.
