4-Port 4K HDMI Splitter
VS184A
Save $26.75

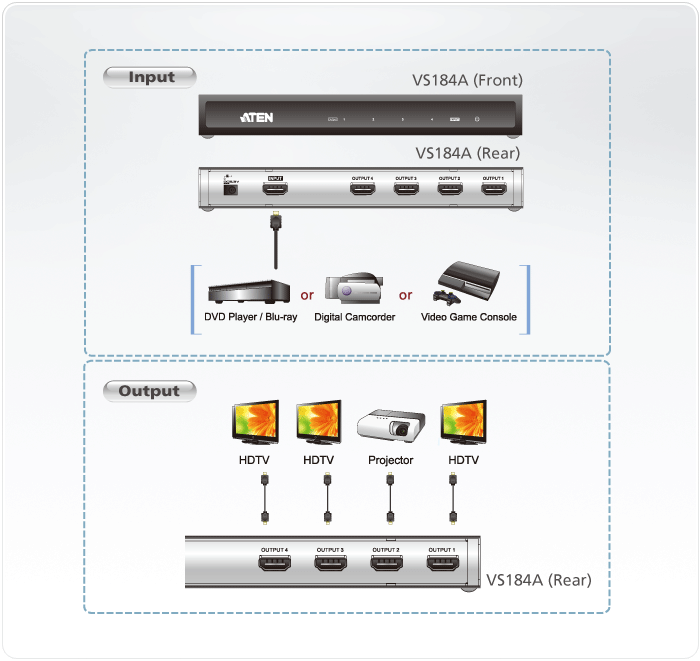

The VS184A HDMI Splitter is the perfect solution for anyone who needs to send one source of digital high definition video to four displays at the same time. It supports all HDMI-enabled equipment, such as DVD players, satellite set-top boxes and all HDMI displays.
The VS184A HDMI Splitter is HDCP (High Bandwidth Digital Content Protection) compliant, making it effective for use with all HDMI displays in home theater applications, as well as in corporate, educational
Product Features
- Connects one HDMI source to four HDMI displays at the same time
- HDMI (3D, Deep Color, 4kx2k); HDCP Compatible
- Supports resolutions of up to Ultra HD 4kx2k and 1080p Full HD
- Supports Dolby True HD and DTS HD Master Audio
- Long distance transmission - up to 15 m (24 AWG)
- Supports up to 340MHz bandwidth for high performance video
- Plug-and-play - no software installation required
Package Includes
- 1x VS184A 4-Port HDMI Splitter
- 1x Power Adapter
- 1x HDMI Cable
- 1x User Instructions
Product Specifications
| Video Input | |
| Interfaces | 1 x HDMI Type A Female |
| Impedance | 100Ω |
| Max Distance | 1.8 m |
| Video Output | |
| Interfaces | 4 x HDMI Type A Female |
| Impedance | 100Ω |
| Video | |
| Max Data Rate | 10.2 Gbps (3.4 Gbps Per Lane) |
| Max Pixel Clock | 340 MHz |
| Compliance | HDMI (3D, Deep Color, 4K); HDCP Compatible |
| Max Resolution | Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) |
| Max Distance | Up to 15 m |
| Audio | |
| Input | 1 x HDMI Type A Female |
| Output | 4 x HDMI Type A Female |
| Power | |
| Connectors | 1 x DC Jack |
| Consumption | 5.3 VDC, 4.6W |
| Environmental | |
| Operating Temperature | VE829R: 32°-122°F (0°-40°C) VE829T: 32°-104°F (0°-40°C) |
| Storage Temperature | VE829R: -4°-140°F (-20°-60°C) VE829T: -4°-140°F (-20°-60°C) |
| Humidity | VE829R: 0-80% RH, Non-Condensing VE829T: 0-80% RH, Non-Condensing |
| Physical | |
| Housing | Metal |
| Weight | 1.04 lb (0.47 kg) |
| Dimensions L x W x H | 7.87 x 3.15 x 0.98 in. (20.00 x 8.00 x 2.50 cm) |
UPC 672792004377
EAN 0672792004377
