8-Port HDMI Cat 5 Splitter
VS1808T
Save $152.88

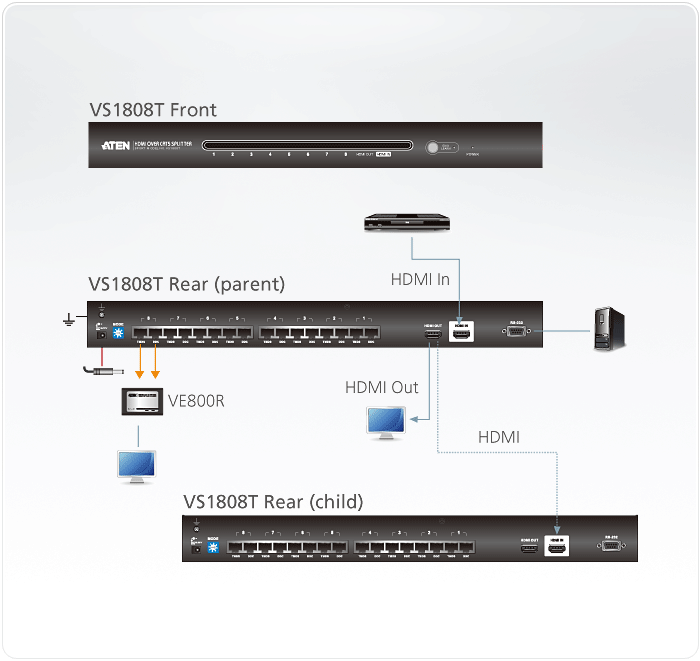

The VS1808T HDMI Over Cat 5 Splitter is a splitter designed to connect one source to 8 displays over a long distance. Incorporating suggested compatible receivers *, the VS1808T HDMI Over Cat 5 Splitter can be a complete solution ideal for any professional A/V installation that requires multimedia content to be delivered to multiple destinations located up to 60 m away from the source.
Product Features
- One HDMI input to 8 HDMI outputs via Cat 5e cables
- Extends displays up to 60 m
- Supports HDMI (3D, Deep color)
- Supports Dolby True HD and DTS HD Master Audio
- Offers local HDMI output
- HDCP compatible
- Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control
- Features RS-232 serial port for command controls
- Cascadable to three levels
- Supports superior video quality - HDTV resolutions of 480p, 720p, 1080i and 1080p (1920 x 1080)
- EDID mode selection
- Rack-mountable
Package Includes
- 1x VS1808T 8-Port HDMI Over Cat 5 Splitter
- 1x Power Adapter
- 1x Foot Pad Set (4 pcs)
- 1x Mounting Kit
- 1x User Instructions
Product Specifications
| Video Input | |
| Interfaces | 1 x HDMI Type A Female |
| Impedance | 100Ω |
| Max Distance | 1.8 m |
| Video Output | |
| Interfaces | 1 x HDMI Type A Female 8 x RJ-45 Female |
| Impedance | 100Ω |
| Video | |
| Max Data Rate | 6.75 Gbps (2.25 Gbps Per Lane) |
| Max Pixel Clock | 225 MHz |
| Compliance | HDMI (3D, Deep Color) HDCP Compatible Consumer Electronics Control (CEC) |
| Max Resolution | Up to 1080p (Depends On Connected Receiver) |
| Max Distance | Up to 60 m (Depends On Connected Receiver) |
| Audio | |
| Input | 1 x HDMI Type A Female |
| Output | 1 x HDMI Type A Female |
| Control | |
| RS-232 | Connector: 1 x DB-9 Female (Black) Baud rate and protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No |
| EDID Settings | EDID Mode: Default / Port 1 / Learn |
| Power | |
| Connectors | 1 x DC Jack |
| Consumption | 5.3 VDC, 13W |
| Environmental | |
| Operating Temperature | VE829R: 32°-122°F (0°-40°C) VE829T: 32°-104°F (0°-40°C) |
| Storage Temperature | VE829R: -4°-140°F (-20°-60°C) VE829T: -4°-140°F (-20°-60°C) |
| Humidity | VE829R: 0-80% RH, Non-Condensing VE829T: 0-80% RH, Non-Condensing |
| Physical | |
| Housing | Metal |
| Weight | 4.74 lb (2.15 kg) |
| Dimensions L x W x H | 17.21 x 6.21 x 1.73 in. (43.72 x 15.78 x 4.40 cm) |
UPC 672792003103
EAN 0672792003103
