Adder CAT6 KVM Extender (Dual Access) w/RS232

X2-DA-SILVER-US

$820.00$738.00
Save $82.00
Access: X2 Silver Dual Access - Local Pass-through
Audio: No
FREE Shipping on orders over $100

The AdderLink X2-Silver Dual Access KVM extender extends high quality video, keyboard, mouse and transparent RS232 up to 300m/1000ft over Category 5 or higher cable while providing KVM access at the computer for local as well as remote control. The X2-DA-Silver offers increased distance over which video can be transmitted and the high resolutions that can be achieved at these distances. This CAT5 extender achieves resolutions of 1600 x 1200 at 200m/650ft and 1280x1024 at 300m/1000ft.

Integral electronic DeSkew is also provided to compensate for any color skew effects that may be introduced by long CATx cables, achieving crystal clear video, even at longer distances. All video adjustments may be made using the keyboard.

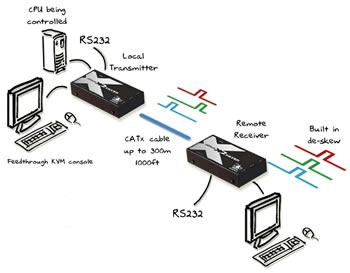

AdderLink X2-DA-Silver KVM Extender Application Diagram
AdderLink X2-DA-Silver Dual Access KVM Extender Diagram

AdderLink X2-DA-Silver KVM Extender Diagram
AdderLink X2-DA-Silver Dual Access KVM Extender Diagram

Adder X2-DA-Silver Features

  • Extends KVM and transparent RS232 across a single CATx cable
  • Dual access provides local KVM access at the computer (local) end
  • Extra fine video quality at resolutions up to 1600 x 1200 at 200m and 1280 x 1024 at 300m
  • Fully transparent RS232 interface enables a wide range of serial devices to be connected
  • Integrated state of the art 300MHz DeSkew circuit (up to 62ns DeSkew with 2ns granularity)
  • Use stand alone or rackmount 16 modules across 2U (rackmount kit sold separately)
  • Advanced spike suppression circuits for reliability in noisy applications
  • Flash upgradeability enables future enhancements
  • Supports DDC signaling to ensure optimal video card setup
  • Spike suppression - The X2-Silver Dual Access is fitted with spike suppression circuits.
  • Application - The X2-Silver Dual Access is not suitable for linking between buildings.
  • Display Data Channel - DDC signaling is supported to enable the computer to communicate with the monitor and thus configure its video card for optimal operation.

Adder X2-DA-Silver Package Includes

Adder X2-DA-Silver-US Package Includes

  • (1) X2-Silver-DA Local (computer-end) unit
  • (1) X2-Silver Remote (KVM console-end) unit
  • (1) 6ft / 2 meter VGA & PS/2 computer interface cable
  • (1) Computer serial interface cable
  • (1) IEC style power supply and power cord
  • (1) Safety and installation leaflet
  • (1) CD manual
  • (8) Stick on rubber feet
  • (1) 2-Year Limited Warranty & Lifetime World Class Support

Note: the X-Series rack panels are not included and need to be purchased separately as required

X2-Silver DA Resources

Adder X2-DA-Silver Manual Screenshot Adder X2-DA-Silver Datasheet (PDF)
Adder X2-DA-Silver Manual (PDF)

Adder X2-DA-Silver Specifications

Mechanical Local Unit Remote Unit
Height 1 in. (26 mm.) 3.1 in. (80 mm.)
Width 6.7 in. (172 mm.) 6.7 in. (172 mm.)
Depth 2.9 in. (75 mm.) 2.9 in. (75 mm.)
Rack Space 16 units fit into 2U of rack space 5 units fit into 2U of rack space
Environmental
Temperature Tolerance 0-40°C (32 to 104°F)
Humidity Tolerance 5 to 60% non condensing
Power
Operating Voltage 100-240VAC
Power Frequency 50-60Hz
Usage 5VDC at 500mA
Connectors
Computers 1 x 25-way female N/A
CATx cable 1 x RJ45 1 x RJ45
Serial 1 x DB9 1 x DB9
Keyboard 1 x purple 6-pin mini-DIN female 1 x purple 6-pin mini-DIN female
Mouse 1 x green 6-pin mini-DIN female 1 x green 6-pin mini-DIN female
Monitor 1 x blue 15-pin high-density D-type female 1 x blue 15-pin high-density D-type female
Power adapter 2.5mm DC jack optional power adapter (only required for video only applications) 2.5mm DC jack
Compatibility
Computer/KVM switch Compatible with desktop, rack mount and laptop PCs with PS/2 keyboard and mouse connections
Operating system Compatible with all major operating systems including DOS; OS/2; UNIX; MS Windows 9x, NT, 2000, XP;NetWare and RS6000
Keyboard Supports PS/2 style keyboards with 6-pin mini-DIN connectors
Mouse Supports a wide range of PS/2 style 2 button, 3 button, wheel, IntelliMouse (3 button with wheel), IntelliMouse Explorer (5 button with wheel) and other mice that support the Microsoft  mouse signaling protocols
RS232 Transparent serial port operation ensures wide device compatibility without the need to configure baud rates or protocols on the X2 to match your equipment.

Adder X2-DA-SILVER-US is also known as X2-DA-SILVER, X2-DA-SILVER/P-US, and X2-DA-SILVER/P.

Question: Can I use the X2-DA-SILVER-US (One) Local with two remotes and, would each remote will have their own access to the local computer/server? I am replacing a now obsolete AdderLink X-Series - X-KVM/R (One local with two remotes) with a similar KVM extender.
Answer: Thank you for your inquiry,


This X2-DA-SILVER-US is very similar to the AdderLink X-Series, but the second user would be a local user and would not use a seperate receiver.

Adder does not offer a one-to-one replacement including the dual cat5 remote users for the discontinued X-KVM/R, but another vendor of ours, Rose Electronics, offers a couple of very similar products that could work as an exact replacement:
Rose MLK-TMDVPRAVP (PS/2 for keyboard & mouse)
Rose MLK-TMDVURAVU (USB for keyboard & mouse)

Depending on your application, we may have other options for you as well, for example IP based solutions- Please feel free to contact your KVM Switches Online sales representative directly!

Question: The X2-DA-Silver (Dual Access) w/ RS232 is compatible with touch screens?
Answer: Thank you for your inquiry,

The Adder X2-DA-SILVER extends Serial RS232 signals fully transparently - it does not change or interfere with the signal in any way. If your touchscreen display has a Serial RS232 interface, the X2-DA-SILVER should be compatible with your touchscreen.

If your touchscreen needs a USB connection for the screen instead, you may also be interested in the similar Adder X-USBPRO.

Please let us know if there is anything else we can help you with!
