The AdderLink X200-USB/P-US is a USB keyboard, video and mouse extender kit that supports two computers and includes a X200 receiver unit and one CATX-USB Computer Access Module (CAM). This USB KVM extender has been designed for use in applications where up to two computers can have their keyboard, video and mouse control extended up to 200 m (650 ft.) across CAT5 or higher UTP cable. The AdderLink X200 class extender provides absolute real time keyboard and mouse performance along with hi-definition, hi-resolution video over a VGA interface. The AdderLink X200 receiver can also be used as a remote user station for the AdderView CATx range of KVM switches.
Adder X200 Receiver Front & Back View
VGA video, USB 2.0 (2-port hub) and audio all pass along a single CatX cable. Distance is dependent on the monitor resolution, number of monitors, cable type and the number of connection breaks for patch panels and wall plates:
The 2-port transparent link supports most common USB devices such as mice, keyboards, touch screens, graphic tablets, jog shuttles, joysticks and mass storage devices. Isochronous devices such as web cams and headsets can also be used.
Industry leading resolutions of:
1920 x 1200 to 50 m (165 ft.)
1600 x 1200 to 200 m (650 ft.)
Each receiver is fitted with two ports to enable connection to a local and remote computer, or two remote computers. The user can quickly select between these ports using keyboard hotkeys or mouse control. Individual video brightness, compensation and skew settings can be applied to each connection.

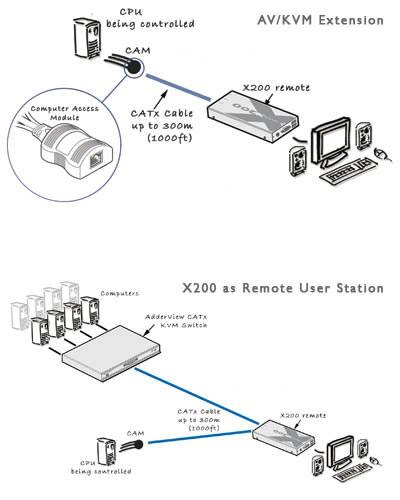

Each receiver may be connected to one or two USB, PS/2 or Sun style computer access modules. Furthermore, the X200 receiver unit may be used as the remote user station for any Adder CATx KVM switch.
The AdderLink X200 applies 128 steps of signal compensation allowing for a great range of very smooth and fine adjustments enabling the user to adjust the video picture to their exact preference.
Unless an extender actively supports DDC some well known high performance video cards cannot be used at high resolutions. The AdderLink X200 fully supports DDC.
As the ADDERLink X200 supports fully transparent USB connections it is able to support all common hardware platforms including PC, Sun and MAC and their associated peripherals.
Installation is straightforward and there is no need for any extra drivers or software to be installed.
the ADDERLink X200 units can be mounted into a chassis (X-RMK-CHASSIS) that will allow 16 X200 receivers units to be housed in 2U of rack space.
Part # | Video | Keyboard / Mouse |
VGA | USB | |
VGA | PS/2 | |
VGA (SUN) | SUN |
Adder X200 Datasheet (PDF)
Adder X200 Manual (PDF)
Brochures
ADDER Extension & Digital Signage (PDF)
| Mechanical | |
| Height | 6.8 in. / 172 mm. |
| Width | 1 in. / 26mm. |
| Depth | 3 in. / 75mm. |
| Weight | 1 lb / 430g |
| O/S Compatibility | All known software and operating systems including Windows (all), DOS, Linux, Unix, BSD, Sun OS, Solaris, MAc OS, NetWare etc. |
| Power Supply | 100-240VAC 50/60Hz |
| Supported Hardware | |
| Computers | RJ45 |
| Monitor | HDD-15 |
| Peripherals | USB type A |
| Standards | |
| Approved Agency | CE, FCC |
X200 is also known as X200-USB/P, and X200-USB/P-US.
