Avocent AV3108 - 8 Port, 1 User KVM Over IP Switch w/ Virtual Media and CAC support
AV3108-400
Save $377.06
Customers Also Viewed
The Avocent AV3108 AutoView KVM switch supports 1 local user and 1 remote user, and up to 8 computers/servers or serial devices. AutoView AV3108 switch provides four USB 2.0 ports for USB enabled devices. When additional systems are added, AutoView switches can be tiered to provide consolidated management of up to 256 server or serial devices.
- Local or Remote Access - The AV3108 KVM over IP switch portfolio provides integrated local or remote KVM over IP management capability
- Virtual USB Media Support - Share a directly connected USB storage device to all servers connected to a KVM switch (a DSAVIQ-USB2 module is required for virtual media support)
- Common Access Card (CAC)/Smart Card Support - Enhances security to meet US government regulation HSPD12 which is required for ensuring secure login to government systems (an AVRIQ-VMC module is required for CAC support)
- Single Solution - Manage PS/2, USB, Sun or serial devices from a single solution. Silmontaneous support for VGA, DVI, HDMI & DisplayPort video inputs. When additional systems are added, AutoView switches can be tiered to provide consolidated management of up to 256 server or serial devices.
- High Density CATx KVM - Thin CAT-5 cabling saves space in the rack and allows up to a 100ft (30 meter) distance between the server and the switch.
- OS Independent - BIOS-level access ensures connection to the attached servers regardless of the health or type of operating system
- Easy to Use - Configure your system name and select your servers from the convenient OSD
- Rack Mountable
- 2 Year Warranty - 1 to 4 year extended warranties available
Server Management for Small Data Centers and Remote/Branch Offices

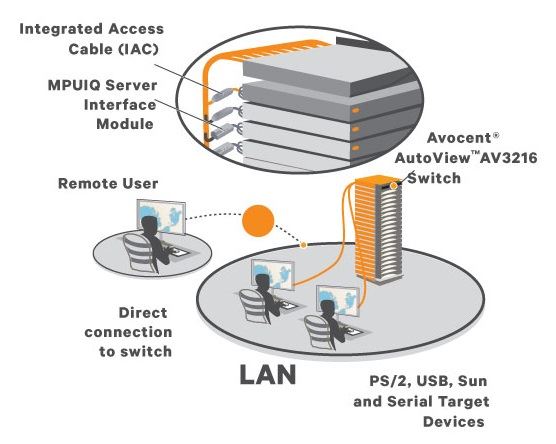

Unplanned interruptions in service can have damaging effects on business no matter the scope or size of the data center. Whether the data center is in a closet, next to a desk or across the globe in a remote office, IT professionals need tools that provide consolidated, streamlined access to server resources. The Avocent AV3000 series of KVM over IP switching solutions provides streamlined management and control of server resources all from a single console.
AV3108 - Flexible and Scalable
The AV3108 switch supports one local and one remote user and up to eight server or serial devices. When in share mode, additional, authenticated users can share remote sessions for a total of up to 4 remote, concurrent users. Each AutoView switch supports VGA, Display Port, DVI and HDMI video targets and four USB 2.0 ports for USB enabled devices. When additional systems are added, AutoView switches can be tiered to provide consolidated management of up to 256 server or serial devices.
AV3108 - Security
Unplanned interruptions in service can have damaging effects on business no matter the scope or size of the data center. Whether the data center is in a closet, next to a desk or across the globe in a remote office, IT professionals need tools that provide consolidated, streamlined access to server resources. The Avocent AV3000 series of KVM over IP switching solutions provides streamlined management and control of server resources all from a single console.
AV3108 - Streamlined Management

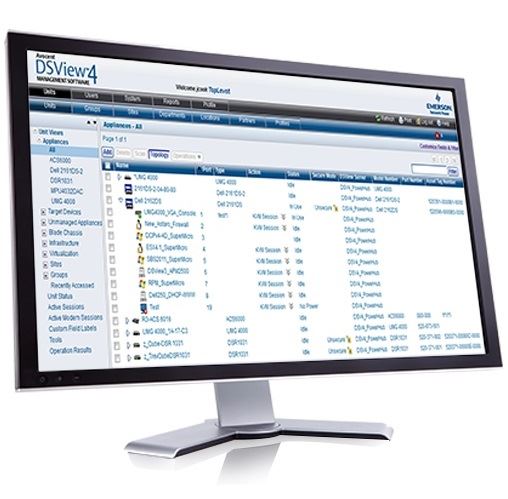

The Avocent AV3108 KVM over IP switch ships with two intuitive, integrated management interfaces. The OSCAR on-screen display for local access and the OBWI (On-Board-Web-Interface) for remote management. Additionally, AV3000 series KVM over IP switches are compatible with Avocent DSView management software for consolidated management across the infrastructure.
Resources
Avocent AV3108 Brochure (PDF)
Avocent AV3108 Manual (PDF)
Avocent DSView 4 Manual (PDF)
Avocent AV3108 Specifications
| Form Factor | 1U Rack Mount |
| Dimensions | Height: 1.72 inches (4.37cm) (1U) Width: 17 inches (43.2 cm) Depth: 6.5 inches (16.5 cm) |
| Weight | 4.2 lbs. (1.9 kg) |

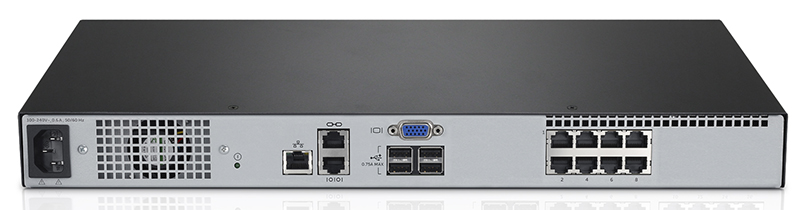

| Device Connectors | • 8 ports for servers or serial devices • 4 USB 2.0 ports |
| Remote Access | 1 remote KVM over IP user 10/100 Mbps Ethernet port |
| Local Access | 1 local port 1 ACI port for tiering to another AutoView switch |
| Virtual USB Media/CAC Support | Virtual Media support over USB Common Access Card (CAC) capability for smart cards 128-bit SSL, AES, DES and 3DES encryption |
| Features Include | Agentless control and access for 1 remote user LDAP authentication Single-stack IPv4 or IPv6 access Flash-upgradeable firmware AV KVM Switch and AVRIQ |
| Video Support | Local VGA connection. Supports VGA, DisplayPort, HDMI, or DVI targets 16:9 widescreen, up to 1680 x 1050 4:3 standard, up to 1600 x 1200 |
| Management Software | OSCAR™ On-Screen Display for local access Web User Interface Compatible with Avocent DSViewTM management software |
| Power Supply | Connector: IEC C14 Type: Internal Power: 18W Heat dissipation: 47 BTU/hr AC input range: 100 - 240 VAC AC frequency: 50/60 Hz auto-sensing AC input current rating: 5 A AC input power (maximum): 20W |
| Environmental | Operating: 32 to 122 degrees Fahrenheit (0 to 50 degrees Celsius) Non-operating: -4 to 158 degrees Fahrenheit (-20 to 70 degrees Celsius) Airflow is from non-port side (Front) to port side (Back) |
| Supported Server Interface Adapters | Multi-platform support: PS/2 and USB. Also support for Avocent PS/2, PS2M, USB, Sun, USB2, VMC modules; Dell PS/2, USB, USB2-VM, USB2-VM+CAC SIPs |
| Agency Approvals | UL, FCC Class A, cUL, ICES Class A, CE, EAC, VCCI Class A, KCC Class A, C-Tick, BSMI |
| Warranty | 2 Years |
Avocent Cybex (by Vertiv) AV3108 is also known as AV 3108. Additionally, the AV3108-001 and AV3108-G01 have been replaced by the AV3108-400/
UPC 636430080222
EAN 0636430080222
Answer: Thank you for your inquiry. To make a basic connection from a target server to the KVM switch using a 15 foot cable, you can use the USBIAC-15 (https://www.kvm-switches-online.com/usbiac-15.html). The single USB cable on the end will carry both Keyboard and Mouse signals to the attached target.
Another option would be to use the MPUIQ-VMCHS (https://www.kvm-switches-online.com/mpuiq-vmchs.html) with a 15 foot CAT5 cable. In addition to the basic functions of the USBIAC-15, the MPUIQ-VMCHS will also provide support for USB peripherals, CAC readers, and virtual media.
Question: Do i need to buy Remote Access Key (RAK-key) module to make 1 remote connection to the Avocent AV3108 - 8 Port switch? And may i use standard Cat5/6/7 UTP patch cables for connection between Avocent AV3108 - 8 Port appliance and Avocent MPUIQ-VMCDV? Thanks!
Answer: Thank you for your inquiry,
You do not; Unlike the AV2000 series, the AV3000 series does utilize the Remote Access Key (RAK-key).
As far as the patch cables for connecting to the KVM to the dongle(s) (i.e. MPUIQ-VMCDV), you can use any standard Cat5/6/7 UTP patch cable(s).
Question: I need to connect Macs and PCs to the device concurrently. Will this work with both Macs and PCs? Will I need different interface modules for the differing computers?
Answer: Thank you for your inquiry,
The Avocent AV3108 would indeed work for Macs - you may need to map certain keys like Command to i.e. the start key - this is very easy to do and is built into the Mac OS System Preferences settings. For accessing the KVM via a Mac computer (MacOS X Tiger 10.4+), you would simply use Firefox as the browser.
Question: Not all the ports on the AV3108 are working and I don't know what is the reason?
Answer: Thank you for your inquiry,
We are sorry to hear of the troubles you are experiencing. Please feel free to contact Avocent (by Vertiv) Technical Support at support.avocent@vertivco.com or give them a call to walk-through and troubleshoot your environment.
Question: What does the -001 in the part # AV3108 mean?
Answer: Thank you for your inquiry
The "-001" (AV3108-001) simply indicates that the AV3108 package contents includes a USA power cable.
Please let us know if there is anything else we can help you with!
Question: How can I get the latest firmware? The Web User Interface will not load with the latest Java (Version 8 Update 201)
Answer: Thank you for your inquiry,
You can find the latest Avocent (by Vertiv) AV3108 Firmware here.
Please let us know if there is anything else we can help you with!
Question: Am I able to send the "console" Mouse and Keyboard (the one used to control the computers) down one of the cat cables in order to use it as a mouse extender?
Answer: Thank you for your inquiry,
You would not; You can use a separate VGA KVM extender such as the Adder X50 (up to 150ft) or the Adder X-USBPRO (up to 1000ft) to extend the console station further away from the switch.
Please let us know if there is anything else we can help you with!
