Adder Professional VGA, USB 4 port switch with USB True Emulation Technology
AV4PRO-VGA-US
Save $47.00
Video Input: VGA
Video Output: Single Monitor
The ADDER AV4PRO-VGA is a Professional VGA, USB 4 port switch with USB True Emulation Technology. It is a is a professional grade KVMA switch delivering ultimate flexibility for users who wish to share a high resolution screen and modern USB peripherals between a multiplicity of computers.
The AV4PRO-VGA-US is designed to enable four computers to be controlled from a single high resolution KVM console using high definition analogue VGA video links. The switch makes use of Adder's True Emulation technology which enables USB HID devices to be continuously emulated to each computer. This unique technology enables instantaneous and reliable hotkey switching whilst also supporting the extra keys and features of enhanced keyboards and mice. Furthermore, the AdderView includes two independently switchable USB 2.0 channels and an audio channel, giving the user the flexibility to attach selected peripherals to different computers.

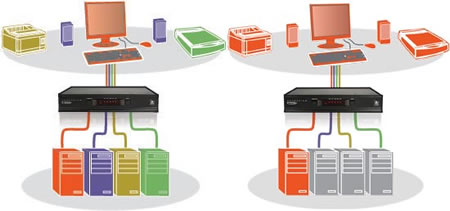

Adder AV4PRO-VGA Layout
Adder AV4PRO-VGA Features
True USB 2.0 emulation
Unlike most KVM switches, which only support the most basic keyboard and mouse features, Adder's revolutionary 'True Emulation' allows you to use the extra function keys, wheels, buttons and controls that are commonly found on modern keyboards and mice. You can also use any other USB interface device including graphics tablets, jog shuttles, joysticks, 3D explorers, and wireless bluetooth keyboard & mouse*.
Independent USB & Audio device switching
The AdderView Pro AV4PRO-VGA includes two independently switchable USB 2.0 channels and an audio channel, giving the user the flexibility to attach selected peripherals to different computers. For example, use the KVMA console to work on one computer whilst your USB peripherals are connected to other computers and your speakers are playing music from yet another.
Broad High Speed device support - Transparent USB 2.0 Hub
An integrated transparent 2-port USB 2.0 hub allows a vast range of USB devices can be connected to the AV4PRO-VGA from non standard keyboard / mouse devices to flash drives, printers and scanners.
Fast & Reliable Switching
Country code reporting, extended DDC EDID profile and continuous keyboard and mouse emulation ensure faultless operation. The USB 2.0 switching action has also been carefully engineered to ensure maximum computer reliability when connecting and disconnecting USB devices.
Channel selection options
The AdderView Pro AV4PRO-VGA can be switched using the front panel buttons, selectable keyboard hotkeys, 3 button mice, an On-Screen-Display (OSD), or using simple ASCII codes via serial RS232. Optionally, you can also use the RC4 remote switch to make your selection. These switching options allow you to rapidly reassign connected devices to any of the connected computers.
Multi-platform support
The AV4PRO-VGA works with all known software and computer platforms, with PS/2, USB and Sun, including Windows (all), DOS, Linux, Unix, BSD, all Sun OS, all Mac OS, NetWare, etc.
Plug and Play
AdderView Pro KVM devices are delivered in a zero configuration state so you can plug them in and start working on them straight away. There is no need for drivers or software to be installed.
Serial RS232 port for control, synchronization and upgrade
- Remotely switch AV4PRO-VGA using simple ASCII codes
- Integration with RS232 controlled power switches to provide a complete hard reboot function
- Flash upgrade
Expand up to a 5-monitor KVM Switch
AV4PRO-VGA can be linked with another Adder AV4PRO unit to create up to a 4-port dual-monitor, triple-monitor, quad-monitor, or 5-monitor KVM Switching system, by using a VSC41 synchronisation cable.
AV4PRO-VGA-US Package Contents
- (1) AV4PRO-VGA KVM Switch
- (1) Power adapter (12.5W) and US-specific power lead
- (1) Quick start guide and Safety document
- (4) Self-adhesive rubber feet
- (1) 2-Year Limited Warranty & Lifetime World Class Support
AV4PRO-VGA Resources
Adder AV4PRO-VGA Datasheet (PDF)
Adder AV4PRO-VGA Manual (PDF)
Adder AV4PRO-VGA Specifications
| Mechanical | |
| Height | 1.7 in. (44 mm.) |
| Width | 9.17 in. (233 mm.) |
| Depth | 4.53 in. (115 mm.) |
| Physical Design | 1U high metal case |
| Hardware Compatibility | All computers with USB interfaces |
| Software Compatibility | Operates with all known software and operating systems including Windows (all), DOS, Linux, Unix, BSD, all Sun OS, all Mac OS, NetWare etc. |
| Computer connections at switch | USB 2.0 type B, Hi Res VGA (up to 4 connections) 3.5mm stereo jack |
| Local KVM Console Connection Video | |
| Video | 1x VGA (single monitor) |
| Keyboard/Mouse | 2 x USB type A |
| Switched USB | 2 x USB 2.0 type A |
| Audio | 3.5mm stereo jack |
| Other Connections | Options (flash upgrade, sync with other AV4PRO-VGA and RS232 triggered power switches): Modular 10P10C |
| Power | 2.5mm DC jack (power adapter included), 100-24-VAC 50/60Hz input to power adapter, 5VDC 2A output from power adapter |
| Operating Temperature | 0°C to 40°C / 32°F to 104°F |
| Approvals | CE, FCC |
The AV4PRO-VGA is also known as the AV4PRO-VGA-US.
Question: What cables come with this unit?
Answer: In addition to the unit itself, the AV4PRO-VGA comes with a power adapter, CD-ROM, and four self adhesive rubber feet.
Question: Can the device allow a single headset (microphone & speaker) and a single webcam to be "used/accessed" by any of the computers? Or if this device cannot support that, do you know of one that can?
Answer: Thank you for your inquiry. You will be looking for a KVM that has audio (speaker and mic) support with a USB hub. This particular unit will support audio speakers and has a USB hub to share peripherals, but unfortunately, it does not have a mic input.
However, there are a number of KVMs out there that will fit the bill. One such switch, that supports DVI monitors, is the https://www.kvm-switches-online.com/4svdvi10-001.html. If you require different inputs or would like to explore other options, please give us a call at 1-877-586-6654 to discuss your project further.
Question: Does Adder make a 2 port KVM, (e.g. a AV2PRO-VGA)? Also, does Adder make a USB compatible KVM with HDMI capability?
Answer: Thank you for your inquiry. Adder does make a 2-port KVM,the AVG2 https://www.kvm-switches-online.com/avg2.html. Additional 2-port desktop KVMs can be found here: https://www.kvm-switches-online.com/2-port-desktop-kvm.html.
In terms of an HDMI option, Adder does not have an HDMI KVM available at this time. You can find some of the other HDMI KVM options by clicking here.
Question: after a power cut over the weekend our box the online power light is off. how do we rectify this
Answer: Thank you for your inquiry. Unfortunately, due to the varied nature of user environments, detailed product support is beyond the scope of this simple FAQ.
Having said that, here are a few things you can try. First, ensure the outlet/power strip is receiving power and any fuse that may have blown is reset. Second, unplug the switch and try plugging it back in. If neither of these helps, please contact that manufacturer. The Adder support page can be reached here: http://www.adder.com/support. Adder also provides a support forum where you may be able to find help. The support forum can be reached here: http://forum.adder.com/
Question: Can I use one mouse and one keyboard to control the two monitors?
Answer: Thank you for your inquiry. This KVM switch allows for the control of 4 different PC's from one user station (Monitor, Mouse and Keyboard). If your application requires the support for dual monitors(two screens, one PC), this switch will not work. If you would like a recommendation based on your application, please feel free to contact your KVM Switches Online sales representative.
