Adder AdderView CATxIP 5000, 16 Port with 8 USB Dongles & Single Rack Mount Kit

AVX5016IPC-US

$2,350.00$2,115.00
Save $235.00

Discontinued
Replaced by: Adder AVX5016IP
Alternative options: Contact Us

Model: 24 Port; 1 Local + 4 IP User
  • + Compare Family
Kit: Rackmount Kit + 8x CATx-USB

The AdderView AVX5016IPC-US is a kit including (1) AVX5016IP 16 port CATxIP Switch, (8) CATX-USB VGA USB dongles and a (1) RMK4S 1U 19" rack mount kit. This device offers 4 non blocking simultaneous IP connections together with a local port (5 separate users), and allows the user to control 16 separate devices. The AVX5016 IP is very small and compact enabling you to fit two units side by side to support 32 computers and 10 sessions in just 1U of rack space.

Using Adder's CAM modules, you can connect the switch via CAT5e cable to any type of server including PC, Mac and Sun. Country code reporting, DDC and continuous keyboard and mouse emulation further ensure faultless operation across your unique installation.

Adder CATxIP 5000 Application Diagram

  • 4 simultaneous IP users- Allows 4 simultaneous global users to connect via IP to any of the 16 connected devices.
  • Local user support- Direct connection for 1 local user to connect straight into the switch.
  • Serial Console Support: connection via CATx-CONSOLE CAM
  • LDAP integration- Authenticate users against your existing LDAP infrastructure. This feature can be enabled and disabled
  • RS232 control- Integrated RS232 gives you the ability to control other external devices such as power management devices.
  • Ecopulse circuitry- Ecopulse powers down unnecesary circuits when not required to reduce power requirements. Over the life of the product this will save significant power resources.
  • Encryption and Authentication- This enterprise grade KVM over IP switch employs AES128 bit encryption and RSA2048 authentication ensuring your control system remains secure at all times.
  • Configuration- The AVX5016 IP allows you to configure 16 separate users internally with unique access privileges all of which are stored within the switch.
  • Open Arhitecture- Adder's continuous improvement policy further ensures your system against future hardware changes - Adder offers free firmware updates for the life of the product. Furthermore, Adder's open architecture design philosophy will not tie you in to specific manufacturer's equipment.
  • ADDER.net- Network management software, automating the task of managing your network control hardware.

Adder AVX5016IPC Back

See Detailed Layout

Adder AVX5016IPC Features

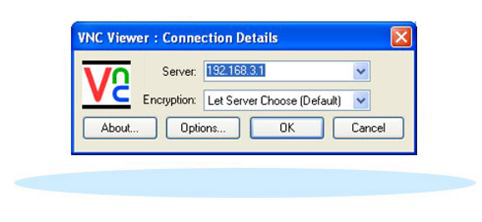

  • Adder AVX5016IPC VNC / IP Access

    Global web access (IP / VNC User)

    • Employing enterprise grade security (using AES 128 bit encryption and RSA 2048 bit public key authentication)
    • Use Java web browser or Real VNC client software that, unlike HTTPS web browsers, is designed specifically for secure, high performance KVM over IP applications
    • Up to 1600 x 1200 resolutions with scalable windows.
  • Adder AVX5016IPC back

    Faultless video quality

    The AdderView CATx IP 5000 provides exceptionally high video performance to local, and global IP users alike, supporting up to 1900x1440 resolutions (1600x1200 on IP links) with DDC emulation which is further enhanced by DC balancing to ensure full and true colour.

  • CAM for Adder AVX5016IPC

    Computer Access Modules

    Flash upgradeable CAMs are available for VGA, DIsplayPort, PS/2, USB and Sun keyboard and mouse support with optional audio. KVM communication from switch to target devices can be up to 10m (33ft).

    Compare CAMs


  • Adder AVX5016IPC user diagram

    User access control

    One local user, and/or four global IP user can control up to 16 multi-platform servers. Up to 16 different user profiles can be stored with access rights for each user defined.

  • Adder AVX5016IPC Multi-platform support

    Multi-platform support

    The AdderView CATx IP 5000 supports any computer platforms with PS/2, USB and Sun keyboard and mouse interfaces. Country code reporting, DDC and continuous keyboard and mouse emulation ensure faultless operation.

  • Audio CAM for Adder AVX5016IPC

    Optional CD quality audio

    AdderView CATx IP 5000 switches support CD quality 44.1kHz digital stereo audio when optional audio enabled CAM modules are used.


  • Adder AVX5016IPC Channel selection

    Channel selection options

    The AdderView CATx IP 5000 can be switched using selectable keyboard hotkeys, an on-screen-display (OSD), or 3 button mice or the front panel controls. These switching options allow you to rapidly reasign connected devices to any of the connected computers.

  • Adder AVX5016IPC Options port for control, synchronisation and upgrade

    Options port for control, synchronisation and upgrade

    • Integration with RS232 controlled power switches to provide a complete hard reboot function
    • Flash upgrade
    • Sync with other CATx IP 5000 switches for multi-video applications
    • Upload/download CATx IP 5000 user and host information
    • Remote control (see "Integrated CATx extender")
  • Adder AVX5016IPC Cascade cable

    Easy Expansion (Cascading Units)

    Expand simply by using just CATx cable to link units. The AdderView automatically detects cascade connections to support up to 256 computers.

  • Adder AVX5016IPC Rack Mounted

    1U rack mount / rack drawers

    One or two CATx 5000 switches can be mounted in 1U of rack height giving a maximum of 48 ports per 1U. Small size also makes the units ideal for mounting behind KVM rack drawers.


AVX5016IPC Package Contents

Adder AVX5016IPC Package Contents

  1. (1) AVX5016IP KVM Switch
  2. (1) RMK4S 1U, 19" Rack Mount Kit
  3. (8) CATX-USB VGA USB dongles
  4. (1) Power adapter and US-specific power lead
  5. (1) Information wallet containing: Quick start guide and Safety document
  6. (4) Self-adhesive rubber feet
  7. (1) 2-Year Limited Warranty & Lifetime World Class Support

AVX5016IPC Resources

Adder Infinity AVX5016IPC Manual Screenshot Adder AVX5016IPC Datasheet (PDF)
Adder AVX5016IPC Manual (PDF)

Brochures
Adder KVM & IP Control (PDF)


Adder AVX5016IPC Specifications

Mechanical
Height 1.76 in. (44 mm.)
Width 7.92 in. (198 mm.)
Depth4.8 in. (120 mm.)
Weight1.70 lbs. (0.77 kg.)
Rack MountCompact 1U high metal case construction suited for rack mounting
Environmental
Operating Temperature0° to 40° / 32° to 104°
Power SupplyMains adaptor with IEC style power lead (included).
Input100-240VAC 0.5A 50-60Hz
Output5VDC 2.5A
Video ModesSupport for standard PC, Sun and Mac video modes up to a resolution of
1600 x 1200 @ 60Hz. DDC emulation supported via connected Computer Access Modules (CAMs).
Hardware CompatibilityVideo, mouse and keyboard for PC, Sun, Mac, RS/6000, Alpha and SGI computers using PS/2, USB or Sun flash upgradable Computer Access Modules (CAMs).
OS CompatibilityOperates with all currently known software and operating systems including all Windows versions, DOS, Linux, Unix, BSD, all Sun OS, all Mac OS and NetWare.
Local Console
VideoHDD15 socket
Keyboard/MouseUSB type A sockets
Connections
CATx Computer Connectionsall RJ45 style
10/100 auto-sensing Ethernet network portRJ45
Power connection2.5mm DC jack (5V DC, 2.5A)
RS232 triggered power switching and syncingDB9 plug
ApprovalsCE, FCC

AVX5016IPC is also known as the AVX5016IPC-US and AVX5016IPC-USA.
