Aten Slideaway 17" LCD Rackmount console with integrated 16-Port KVM
CL1016M
Download the
CL1016M Manual (PDF)
The Aten CL1016M, 17" LCD integrated 16-port KVM switch. This LCD built in unit provides one local user access and support up to 192 servers through daisy chaining. The user can use push button, hotkeys, or OSD to select the desired computer. For additional security, CL1016M offers two levels of passwords, administrator and user. IT administrator can control user access to the port level of the KVM. The CL1016M is ready to install. It's all-in-one design avoids the extra assembly steps required to connect the LCD module and KVM sections. Additionally, ATEN's friendly rail design reduces the complexity of rack installation. CL1016M Manual (PDF)
Aten CL1016M's Features:
- An LCD console drawer with built-in KVM directly controls up to 16 computers
- 16-port KVM switch, keyboard, touch pad, all in a 1-U high and 19"rack-mountable unit
- Auto-sensing of station position on daisy chained installations - no need for manual DIP switch setting
- Daisy-chain up to 11 ACS1208A KVM units to control up to 192 computers from a single console.
- No software required
- Convenient computer selection via Pushbutton, Hotkey or OSD
- AutoScan feature monitors selected computers
- Hot pluggable - add or remove computers without having to power down the switch
- Two level password protection,and separate profiles for up to four users and an administrator
- Two level logout - manual and timed
- Firmware upgrade through flash ROM
- PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere
- 17" RGB analog LCD display supporting high XGA resolutions of up to 1280 x 1024 with 250cdKit Depth/m(sq) brightness
- USB Servers/Computers are supported with the Intelligent KVM cables (2L5202UP/2L5203UP)
Aten CL1016M's Requirements:
- Computers with PS/2 or USB mouse and keyboard connections
- VGA or SVGA video out
Aten CL1016M's Requirements:
- CL1016M
- 2x Custom KVM Cable Sets
- Firmware update cable
- Power cord
- Rack mount kit
- User manual

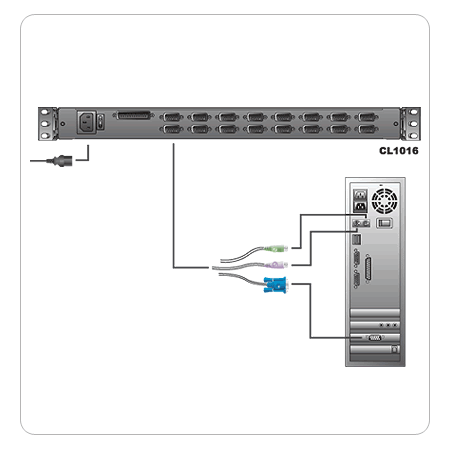

Aten CL1016M Diagram
The Aten CL1016M Specifications:
| LEDs | |
| Power On | 1 (Dark Green) |
| Selected | 8 (Green) |
| On Line | 8 (Orange) |
| Port Selection | OSD; Hotkey; Pushbutton |
| Power Consumption | 120V; 30W 230V; 37W |
| Video Resolution | 1280 x 1024@75Hz; DDC2B |
| Scan Interval | 1~255 Seconds |
| Emulation |
|
| Keyboard | PS/2 |
| Mouse | PS/2 |
| Computer Connections | |
Daisy Chain or Cascading | 192 (via Daisy Chain) |
| Direct | 8 |
Daisy Chain | 1 x DB-25 Male |
| CPU Connectors | |
| Keyboard, Mouse, and Monitor | 8 x SPHD Female (Yellow) |
| Flash ROM Upgrade | 1 x FW Upgrade Port |
| Connectors | |
| Power | 1 x 3-prong AC socket |
| Power Output Rating | |
| Total AC Power Outlet, 50/60Hz | 100~240V AC; 1A |
| Switches | |
| Power | 1 x Rocker |
Reset | 1 x Semi-recessed pushbutton |
| Port Selection | 8 x pushbutton |
| LCD Adjustment | 4 x pushbutton |
| F/W Upgrade | 1 x Slide |
| Environment | |
| Operational Temperature | 32~ 104°F [0°~40°C] |
| Storage Temperature | -4~140°F [-20°~60°C] |
| Humidity | 0~80% RH, Non-condensing |
| Physical Properties | |
| Housing | Plastic/Metal |
| Case Weight | 44 lbs (20 kg) |
| Unit Weight | 26 lbs (11.8 kg) |
| Unit Weight w/ Package | 44 lbs (20 kg) |
| Case Dimension | 28.3 x 26.5 x 5.5 in (71.9 x 67.3 x 36.1 cm) |
| Case Qty | 1 |
| Unit Dimension | 25 x 18.9 x 1.73 in (63.5 x 48 x 4.4 cm) |
| Unit Package Dimensions | 28.3 x 26.5 x 5.5 in (71.9 x 67.3 x 36.1 cm) |
UPC 672792100901
EAN 0672792100901
Question: how to i get menual for this? and I would like to know how to reset password and what is deafult admin user id and password? thank you
Answer: Thank you for your inquiry. We have uploaded the manual for your convenience. There is no default user name and password. If no password has been set, simply press [ENTER] to access the OSD administrator mode.
If the password needs to be reset, follow the procedure as detailed in the user manual under the "Clear Login Information" heading in the appendix on page 55 of the PDF.
Question: does it come with cables
Answer: This particular unit does not come with cables. They are listed as accessories on the page.
Answer: Thank you for your inquiry. We have uploaded the manual for your convenience. There is no default user name and password. If no password has been set, simply press [ENTER] to access the OSD administrator mode.
If the password needs to be reset, follow the procedure as detailed in the user manual under the "Clear Login Information" heading in the appendix on page 55 of the PDF.
Question: does it come with cables
Answer: This particular unit does not come with cables. They are listed as accessories on the page.
