1U Dual Slide 17" LCD & Keyboard Drawer w/ 3-Console 16-Port KVM Switch

D117-M1603e

$3,697.00$3,426.00
Save $271.00
FREE Shipping on orders over $100

The D117-M1603e is a 1U Dual Slide Rackmount LCD Monitor with 17" LCD with integrated 3-console (1 x local; 2 x remote) 16 port Matrix Multi-User DB-15 KVM Switch.  The keyboard is a 104 key notepad keyboard with touchpad mouse.  The Dual Slide technology allows the LCD to be left up/open when the rack door is closed.

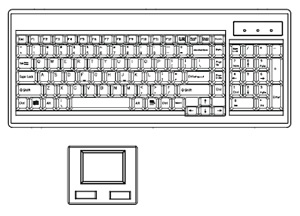

"Ne" style keyboard included with D117-M1603e
"Ne" style keyboard included with D117-M1603e

D117-M1603e Features & Benefits:

  • 1U dual slide 17" LCD conlse drawer
  • 104-key keyboard with touchpad
  • Enhanced aesthetics with new molded front panel and two point lock
  • Combo interface either PS/2 or USB for single console drawer

Matrix Multi-User DB-15 KVM Switch Features & Benefits:

  • Efficient system management with simultaneous multi-user access
  • Capable of connecting 16 servers per device in 1U
  • Multi-platform servers shared by different consoles in cascade connection
  • Mix PS/2, USB & SUN with Multi-Platform switch capability
  • Mix Legacy PS/2 servers with newer USB and SUN solutions
  • Multi lingual on screen display menu
D117-M1603e Rackmount LCD Diagram
D117-M1603e Rackmount LCD Diagram

D117-M1603e Specifications:

Mechanical
Height 1.73 in. (44 mm.)
Width 17.4 in. (442 mm.)
Depth 25.6 in. (650 mm.)
Weight 35 lbs. (16 kg.)
Samsung LCD Monitor
4:3 Screen Size 17"
Display Type Active Matrix TFT
Native Resolution 1280 x 1024
Brightness (cd/m2) 250
Contrast Ratio 1000 : 1
Viewing Angle (H x V) 160° x 160°
Display Color 16.7M
Active area (mm) 338x270
Signal Input VGA
KVM Switch
KVM Port 16 x DB-15 combo connector
KVM Connectivity Combo 4-in-1 KVM cable up to 6, 10 & 15 feet
Local Console LCD console drawer version (Up to 1920x1080/1920x1200)
Cat6 Remote Console 1xRJ45 via Cat5/Cat5e/Cat6 cable up to 500 ft
DB 15-pin VGA, up to 1600x1200
Expansion Up to 240 servers by 8-level cascade
Compatibility Mix PCs, SUN and Mac G3 / G4 Mac / iMac
Windows 7 / Vista / 2003 / XP, Linux, Unix
Power Max. 48 Watt, Standby 5 Watt
Environmental Operating / Storage : 0 to 50°C / -5 to 60°C
Relative humidity : 90%, non-condensing
Shock : 50G peak acceleration ( 11 ms, half-sine wave )
Vibration : 58~100Hz / 0.98G ( 11 ms/ cycle)
Regulatory Approval FCC, CE
