Raritan 8 User, 8 Port KVM Over IP Switch
DKX3-808
Save $420.08
Overview
- Access devices over a web browser, mobile phone or tablet, optional serial module, or an optional user station.
- High quality video with low bandwidth utilization - All data encrypted, including video transmissions and virtual media.
- VGA/DVI/HDMI/DisplayPort/USB-C Video Compatibility (1920x1080 HD) with dual monitor support.
- Multiplatform Computer Interface Modules (CIMs) - Connect to PS/2, USB, USB-C, SUN and other servers from up to 150 feet. Optional audio enabled CIMs available.
- Virtual media support for external devices such as a smart card reader (CAC).
- Dual-AC power supplies and Dual-NIC Gigabit Ethernet with failover.
- Local or centralized authentication with LDAP, RADIUS or Active Directory support.
- Remote Power Reboot - Control power to servers connected to optional Raritan PX PDUs.
- Tiering Port for Cascading KXIII Switches (up to 1024 servers).
- Modem Port for Emergency Access.
- Scales to thousands of servers with centralized network access through the optional CommandCenter Secure Gateway.
Note: A second generation D2CIM is required for Virtual Media, absolute mouse synchronization, tiering, audio and Smart Card/CAC use.
Dominion KX3 Over-IP Video Quality vs Competition
Features
The Broadest Array of Video Format Support in a Single Switch
The most compatible switches in the market, the Dominion KVM-over-IP switches support:
VGA
HDMI
DVI
Display Port
USB-C

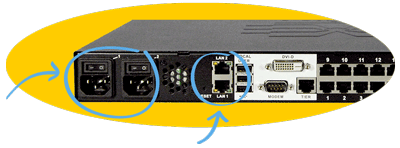

Dual Power & Network Redundancy
For increased reliability and redundancy, all Dominion KX III models have dual power supplies and LAN ports, with automatic failover. Never loose connection to your servers, regradless where in the world you are!
Remote Power Management
Power up, power down or power cycle servers connected to optional Raritan remote power control units. With a single click, you can re-boot a hung or crashed server.
Consolidate Your IT World
Secure remote management of your entire IT infrastructure from a single IP address.
Universal Web Browser Access To Your Servers
From Anywhere in the World!
Dominion KX III KVMs allow local (in-bound) and remote (out-of-bound) operators the ability to monitor and access their servers, storage, and network devices over the network using a web-based browser (Java or HTTPS - IPv4, IPv6). Web based control methods employ high specification security techniques to ensure that only authorized users may gain access.
Hassle-Free, High Performance IP User Station - Optional
Raritan DKX3-UST
- Self-contained, hassle-free hardware appliance
for applications without a standalone PC - Two 1080p streaming video sessions at 30 FPS
- Ultra-fast connections and sub-second switching
- Eight or more simultaneous IP sessions
- Powerful user interface with single or dual monitors
- Includes (2) DisplayPort & (1) HDMI video outputs
- Perfect for broadcast, labs, studios, and control rooms
Go Mobile
Each Raritan Dominion KX III KVM model supports remote Mobile, BIOS-level access to your sources - Get emergency 24/7 out-of-hours access, as well as convenient everyday access and control of PC's and servers using Apple iPhones and iPads via a web browser (HKC - HTML KVM Client) or the Raritan CommandCenter Secure Gateway
Serial & KVM-Over-IP Access From A Single Switch - Optional
Raritan DSAM-2 & DSAM-4
The Dominion Serial Access Modules (DSAM) allow users to connect serial devices with Java-free user access from the Dominion KX III, KVM-over-IP switch. The 2 port and 4 port DSAM modules connect to the Dominion KX III switch's USB ports. They provide "true serial access" with copy and paste capability for up to 8 simultaneous connections to serial devices like LAN switches, routers and Linux/Unix servers.
- Up to 2 DSAM modules per Dominion KX III
- Up to 8 serial sessions per Dominion KX III
- Auto DTE/DCE detection
- Java-Free HTML Access
- SSH Client, putty use
- Up to 230,400 baud
- Powered from the Dominion KX III
- Remote power control with Raritan PX iPDU

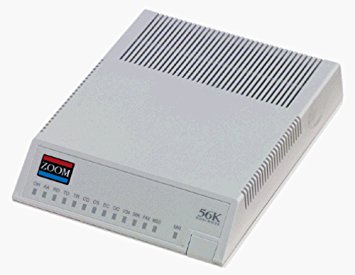

External Telephone or Cellular Modem for Emergency Access
Dominion KX III offers a dedicated modem port for attaching an external modem; Connect and Enable Global Access to an External Broadband Modem.
Protocols: TCP/IP, HTTP, HTTPS, UDP, RADIUS, SNTP, DHCP, PAP, CHAP, LDAP, SNMP v2 and v3
Cable modem download speed (typical): 512Kbps
Cretified Modems
- USRobotics 56K 5686E
- ZOOM v90
- ZOOM v92
- USRobotics Sportster 56K
- USRobotics Courier 56K
Centralize Remote Management of Servers & Serial Devices
Raritan CommandCenter
Raritan's CommandCenter allows you to take total control of your enterprise by enabling centralized access to hundreds or thousands of IT devices connected through Raritan's KVM switches or serial console products.
CommandCenter aggregates access to multiple local or remote data centers by providing an intelligent, centralized gateway to monitor, diagnose and resolve problems on your entire network from one IP address. CommandCenter contains built-in diagnostics that provide status reports on the availability of all accessed devices, including system health updates and alarms.
CommandCenter combines powerful event management capabilities with full activity logging, user-defined status monitoring, alarms, audit trails and traceability-with multi-layer security and support for the most common authentication protocols including RADIUS, Active Directory, LDAP(S), and TACACS+.
DCIM
Manage Data Center Complexity
Dramatically simplify data center operations management with DCIM software. Free yourself from multiple excel and visio files and improve asset, capacity, change management; power, energy, and environment monitoring.
Blazing Fast HD Video Streaming
For Broadcast & Entertainment
The KX III's next generation video processing engine supports dynamic broadcast applications that require 1920x1200 HD resolution, 24 bit color, digital audio, dual monitors and DVI, HDMI, DisplayPort and VGA video. View streaming 1080p video at 30 frames-per-second over your LAN. New high performance IP User Station now available for labs and studios. Fast connections and sub-second switching available with the DKX3-808 model.
- 1920x1200 HD Analog & Digital video
- Up to 30 FPS HD Video with Audio
- DVI Digital Local Port provides fast GUI performance
- High quality video with low bandwidth and low 50 msec latency
- Full-screen video display and flexible video scaling
- Dual monitor support
- Dual video cards with extended desktop
- Supports 1920x1080, 1920x1200 and 1600x1200 remote video resolutions
- High (24-bit) color palette support
Dual & Multi Monitor Support
KVM Over IP switches offer unrestricted multi monitor support for any number of monitors. Multi monitor support is achieved by using a separate port for each of attached displays, and then opening those in separate sessions - I.E. a 32 port KVM will offer support for 16 devices with dual monitors. Raritan Dominion KX3 KVMs also offer native a dual monitor 'follow' mode, which automatically opens up all the relevant displays when connecting to a server. The new optional Dominion User station (DKX-UST) also features (2) DisplayPort and (1) HDMI video ports that can be mixed in dual-monitor applications.
Virtual USB Media
Virtual Media lets the user remotely mount storage devices, CAC readers, printers, bootable ISO, and any other USB devices onto the computers and servers connected to the DKX3-808 KVM Over IP switch. The networked USB device functions as if it was directly attached to the source computer or servers USB port.
Virtual USB media is also critical for remote administrators to perform of a number of tasks from installing applications, security patches, complete OS installs, to virus scans and diagnostics. These tasks can often be performed simultaneously on all servers attached to the KVM switch without a physical presence in the server room.
Secure And Reliable
All Dominion KX III models meet widely used U.S. and Canadian government security mandates like: FIPS 140-2 certified cryptographic module, smart-card/CAC authentication, two factor RSA SecurID authentication, and IPv6. And with dual power supplies and dual gigabit Ethernet ports, it is the most reliable and secure digital KVM switch series in the industry.
- Uses FIPS 140-2-certified cryptographic module
- Smart card / CAC authentication - local and remote
- 256-bit AES encryption
- Dual power supplies and dual Gigabit Ethernet with failover
- All data encrypted, including video transmissions and virtual media
- Secure Linux-based appliance
- Local or centralized authentication via LDAP, AD, andRSA SecurID via RADIUS.
- Dual-stack networking: IPv4 and IPv6
- Configurable user and group permissions
- User-configurable TCP ports
- Supports strong password protection
- Customizable security banner
- Utilize existing digital security certificates
- SNMP v2 and v3 management, Syslog, Email alerts
User & Group Permissions
DKX3 KVM Over IP devices allow administrators to define users and groups with customizable administration and port access permissions. Admins can typically choose between View only, Shared, Exclusive or Private connection modes.
Active Directory Authentication
Dominion KX III KVM Over IP models also support third party authentication and authorization through Active Directory services like LDAP, AD, RSA SecurID, RADIUS and TACACS+. Access and control based on user-customizable criteria like time of day, location, application, operating system, department and function. Active Directory also allows for consolidated logging and audit trail.
Accessories & Optional Expansion
Extended Warranties for Raritan DKX3-808
1 to 2 Year Warranty Extension (up to 4-Years total) for Raritan DKX3 KVMs. Extended warranties include 100% parts and workmanship, 24-hour replacement, and 24-hour technical support.
Resources & Support
DKX3-808
Raritan Dominion KX3 Brochure (PDF)Raritan Dominion KX3 User Manual (PDF)
Raritan Dominion KX3 Admin Manual (PDF)
Raritan DKX3 Features & Benefits (PDF)
Raritan DKX3 Frequently Asked Questions (PDF)
Raritan DKX3 Online Help Guide (Link)
Raritan DKX3 Support (Link)
Accessories
CIM (Computer Interface) Cable Guide (PDF)CommandCenter Brochure (PDF)
CommandCenter Manual (PDF)
DKX3-UST User Station Brochure (PDF)
DKX3-UST User Station Manual (PDF)
DSAM Serial Module Brochure (PDF)
Raritan DKX3-808 Specifications
| Mechanical | |
| Width | 17.3 in. (440 mm.) |
| Depth | 13.15 in. (334 mm.) |
| Height | 1.73 in. (44 mm.) |
| Weight | 9.96 lbs. (4.52 kg.) |
| Environmental | |
| Operating Temperature | 32° (0°C) to 113° (45°C) |
| Power | Dual Power 100V/240V 50/60Hz 1.8A 60W 52 KCAL |
| Form Factor | 1U, full width rack mountable (brackets included) |
| Remote Connection | |
| Network | Dual 10/100/1000 gigabit Ethernet; dual-stack; IPv4 and IPv6 |
| Modem Port | DB9(F) DTE |
| Protocols | TCP/IP, HTTP, HTTPS, SNMP, UDP, RADIUS, LDAP, SNTP, DHCP, PAP, CHAP, SNMP v2 and v3 |
| Local Access Port | |
| Video | DVI-D (F) |
| Keyboard/Mouse | USB(F), 1 USB front, 3 USB rear |
| Tiering Port | RJ45 |
| Sample Video Resolutions | |
| PC text mode | 640x350, 640x480, 720x400 |
| PC graphic modes | 640x480, 800x600, 1024x768, 1152x864, 1280x1024, 1440x900, 1680x1050, 1600x1200, 1920x1080 |
| Sun video modes | 1024x768, 1152x864, 1152x900, 1280x1024 |
DXK3 Hot Key Sequences
Hot Keys are editable in Options under the General Tab.
| Exit Full Screen | ex. [Ctrl]+[LeftAlt]+[m] |
| Exit Single Cursor Mode | ex. [Ctrl]+[LeftAlt]+[o] |
| Disconnect From Target | ex. [Ctrl]+[LeftAlt]+[q] |
| Switch Ports | ex. [LeftAlt]+[Port#] |
| Disconnect From Target, Return to GUI | ex. [Scr Lock]+[Scr Lock] |
Sun Key Sequences
| Again | [Ctrl]+[Alt]+[F2] |
| Props | [Ctrl]+[Alt]+[F3] |
| Undo | [Ctrl]+[Alt]+[F4] |
| Stop A | Break a |
| Front | [Ctrl]+[Alt]+[F5] |
| Copy | [Ctrl]+[Alt]+[F6] |
| Open | [Ctrl]+[Alt]+[F7] |
| Find | [Ctrl]+[Alt]+[F9] |
| Cut | [Ctrl]+[Alt]+[F10] |
| Paste | [Ctrl]+[Alt]+[F8] |
| Mute | [Ctrl]+[Alt]+[F12] |
| Compose | [Ctrl]+[Alt]+[KPAD *] |
| Vol + | [Ctrl]+[Alt]+[KPAD +] |
| Vol - | [Ctrl]+[Alt]+[KPAD -] |
| Stop | None |
| Power | None |
Test Drive!
Free Demo For DKX3-808
Our system will provide you with a new, personal instance of an online Test Drive - See if the DKX3-808 is right for you!
The Dominion KX3 KVM system can be accessed through a web browser via the KVM's IP address or hostname.
You can try it for yourself here:
https://kxiii.demo.raritan.com/
username: webdemo
password: password
There are three kinds of clients that the web browser can load. By default from windows, the .NET client will load.
- Java client (https://kxiii.demo.raritan.com/vkcs)
- HTML client (https://kxiii.demo.raritan.com)
- .NET client (https://kxiii.demo.raritan.com/akc -- windows only)
UPC 785813015013
EAN 0785813015013
Answer: Thank you for your inquiry,
The Mean Time Between Failure (MTBF) for Raritan Dominion KX3 DKX3-808 is 102,713 hours.
Question: I see that there is the new DKX4 series 1-Port IP KVM coming out - Are there any plans to replace DKX3-808 with a newer model like Raritan DKX4-808?
Answer: Thank you for your inquiry,
As of February 12th, 2018, Raritan does not currently have a public release plan for replacing the DKX3-808.
Please let us know if there is anything else we can help you with!
Question: The DKX3-808 is being considered for use on a USAF network. Is it considered a "Secure" KVM and does it have any DoD credentials, i.e. Common Criteria Portal, NIST FIPS, etc?
Answer: Thank you for your inquiry,
The Raritan DKX3-808 indeed meets DoD security standards including: AES & FIPS 140-2 encryption, UL certification, Common Access Card (CAC) authentication, PIV, FIPS 201, HSPD-12 and IPv6 networking.
- U.S. government agencies and the Department of Defense are now mandated to purchase IPv6-compatible products - The Raritan Dominion supports IPv6.
- The Dominion KX III uses an embedded FIPS 140-2 validated cryptographic module running on a Linux platform per FIPS 140-2 implementation guidelines. This cryptographic module is used for encryption of KVM session traffic consisting of video, keyboard, mouse, virtual media and smart card data.
- The Dominion KX III also supports AES 256-bit and 128-bit encryption as recommended by the U.S. government's NIST and FIPS standards Advanced Encryption Standard (AES) for added security. The weaker RC4 encryption is no longer supported.
- Please note that due to the specification of the protection profiles, NIAP Common Criteria certification is not really suitable for the evaluation against over-IP / network-attached switches or matrix switches. You can find a list of our Common Criteria Certified secure KVMs here.
