Gefen Pigtail DisplayPort, Audio Over Fiber Extender Up to 3300 feet
EXT-DP-CP-FM10
Save $617.30
The Gefen EXT-DP-CP-FM10 DisplayPort fiber optic pigtail module extender with DPCP support extends a DisplayPort up to 3300 feet (1000 meters) using a single-strand 50/125µm multimode (OM2/OM3) SC-terminated fiber optic cable with resolutions up to 2560 x 1600 (WQXGA). Optical signal transmission provides galvanic isolation and immunity to electromagnetic interference compared to similar copper based extension modules.
The pigtail design of the Sender and Receiver modules relieves stress and clutter on the source and display connector panels. Their compact design makes them ideal for fitting neatly behind equipment for a clean installation, making it a great way to easily extend DisplayPort.
How It Works:

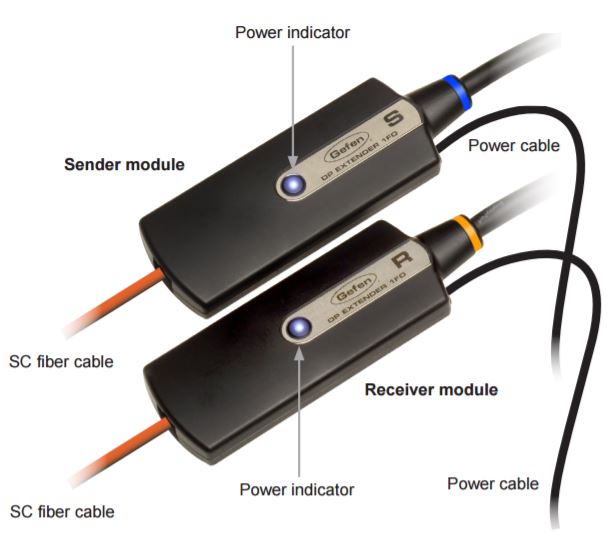

The Sender pigtail end plugs into the DisplayPort source. The Receiver pigtailend plugs into the display. Connect a single-strand 50/125µm multimode (OM2/OM3) SC-terminated fiber optic cable from the Sender to the Receiver module. Plug the included power supplies into the Sender and Receiver modules and a vibrant Hi-Def picture will appear on your display.
Note: Both the Sender and Receiver pigtail modules have power receptacles and must be connected to the included power supplies for proper operation. 62.5/125µm (OM1) fiber may also be used at reduced maximum range of up to 1000 feet (300 meters).
DPCP is not available when using Apple MDP monitors.
Gefen EXT-DP-CP-FM10 Extender Layout Overview - See Detailed Layout
Gefen EXT-DP-CP-FM10 Features and Benefits
- Extends DisplayPort up to 3300 feet (1000 meters) over a single-strand of 50/125µm multimode (OM2/OM3) SC-terminated fiber optic cable
- Supports resolutions up to 2560 x 1600 (WQXGA)
- Compliant with DisplayPort 1.1 standard
- Fiber optic transmission eliminates electromagnetic interference (EMI)
- Pigtail design relieves stress and clutter on the source and display connector panels
- HDCP and DPCP compliant
- DDC bi-directional support
- Compact Sender and Receiver modules provide a clean, easy installation
- FCC and CE compliant for EMI/RFI emission

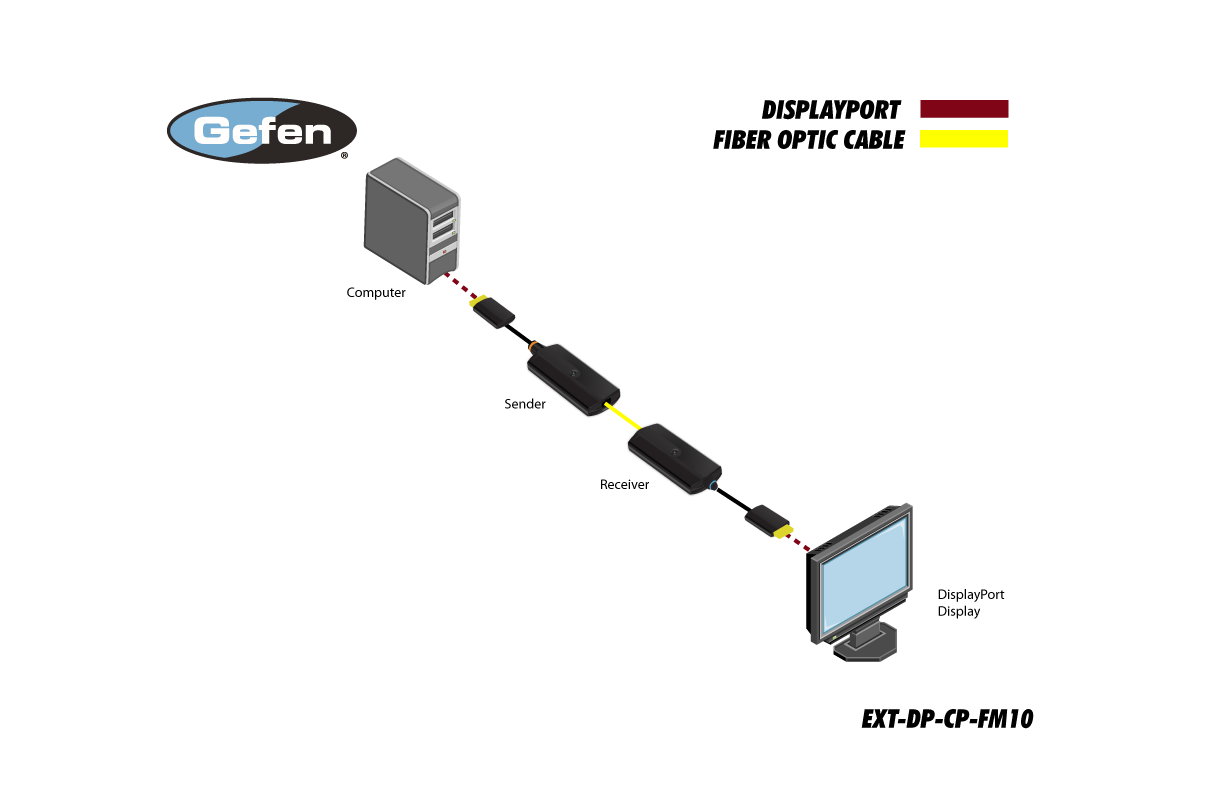

Gefen EXT-DP-CP-FM10 DisplayPort Extender Diagram

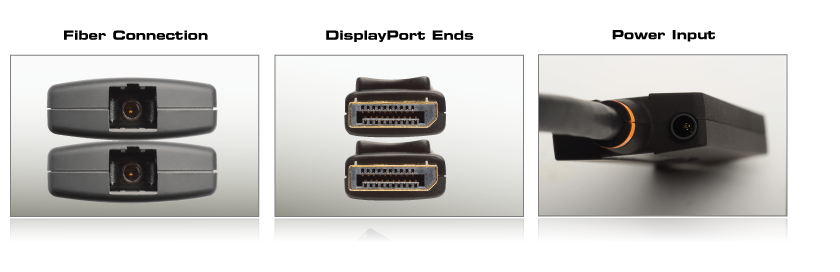

Gefen EXT-DP-CP-FM10 Layout
| Sender | Feature | Description |
|---|---|---|

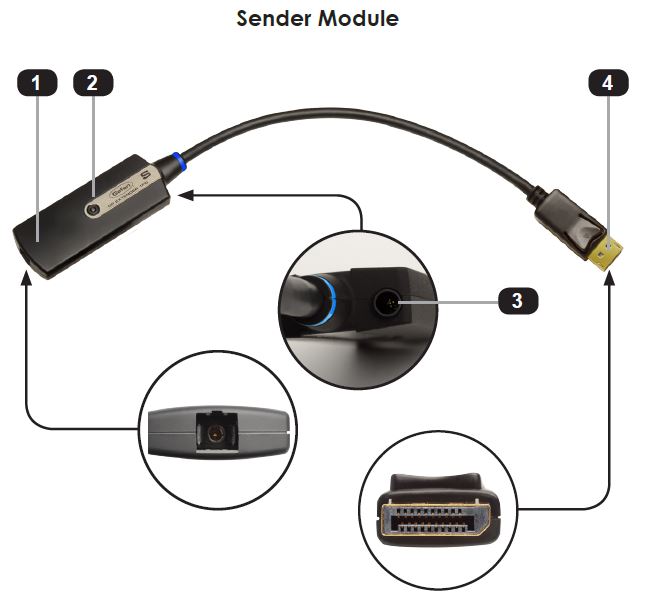

| 1 | Fiber optic connector | Connect an SC-terminated fiber optic cable from this connector to the fiber optic connector on the Receiver pigtail module. |
| 2 | Power Indicator | This LED will glow bright blue when one of the included 5V DC power supplies is connected to the power receptacle on the Sender module. |
| 3 | Power receptacle | Connect the included 5V DC power supply to this power receptacle on the Receiver pigtail module. Both the Sender and Receiver module have power receptacles and must be connected to the included power supplies for proper operation. |
| 4 | DisplayPort connector | Connect this end of the Sender pigtail module to the computer or other DisplayPort source. |
| Receiver | Feature | Description |
|---|---|---|

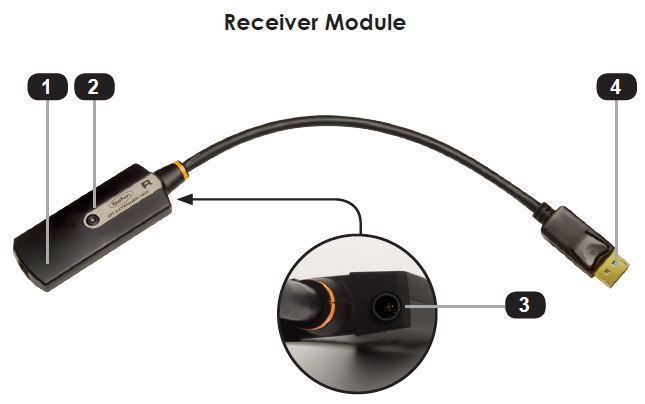

| 1 | Fiber optic connector | Connect an SC-terminated fiber optic cable from this connector to the fiber optic connector on the Sender pigtail module. |
| 2 | Power Indicator | This LED will glow bright blue when one of the included 5V DC power supplies is connected to the power receptacle on the Receiver module. |
| 3 | Power receptacle | Connect the included 5V DC power supply to this power receptacle on the Receiver pigtail module. Both the Sender and Receiver module have power receptacles and must be connected to the included power supplies for proper operation. |
| 4 | DisplayPort connector | Connect this end of the Receiver pigtail module to the display. |
EXT-DP-CP-FM10 Package Contents
- (1) Fiber Optic DisplayPort Pigtail Extender Sender Unit (EXT-DP-CP-FM10S)
- (1) Fiber Optic DisplayPort Pigtail Extender Receiver Unit (EXT-DP-CP-FM10R)
- (1) 5V DC Power Supply (EXT-PS52AIP-1.3)
- (1) Quick-Start Guide (QSG-HD-CP-FM10)
EXT-DP-CP-FM10 Resources

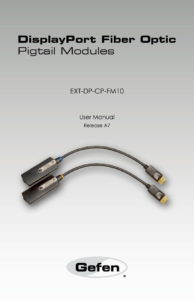

Gefen EXT-DP-CP-FM10 Manual (PDF)
Gefen EXT-DP-CP-FM10 Brochure (PDF)
Gefen EXT-DP-CP-FM10 Specifications
| Mechanical | |
| Width | 1.5 in. (38.1 mm.) |
| Height | 0.47 in. (11.93 mm.) |
| Depth | 3.51 in. (89.15 mm.) |
| Ship Weight | 1 lbs. (0.45 kg) |
| Power | |
| Power Supply | 5V/2A DC |
| Power Consumption | 1.5 W (max.) |
| Connectors | |
| Video Input | 1 x DisplayPort 20-pin, male |
| Video Output | 1 x DisplayPort 20-pin, male |
| Link Connectors | 1 x SC Type |
| Supported Formats | |
| Resolution (max.) | 2560 x 1600 |
| Electrical | |
| Video Bandwidth | 3.5 Gb/s (per channel) |
| Power Indicators | 1 x LED, blue |
| Environmental | |
| Operating Temperature | 32 - 122 °F (0 to + 50 °C) |
| Storage Temperature | -4 - 158 °F (-20 - 70 °C) |
| Relative Humidity | 10% to 80%, non-condensing |
UPC 845344038391
EAN 0845344038391
