Gefen Pigtail DVI Over Fiber Extender Up to 3300 feet
EXT-DVI-CP-FM10
Save $546.95
The Gefen EXT-DVI-CP-FM10 DVI fiber optic pigtail module extender with HDCP support extends DVI up to 3300 feet (1000 meters) using single-strand 50/125µm multimode (OM2/OM3) SC-terminated fiber optic cable to a supporting display at 1920 x1200 WUXGA resolution. Optical signal transmission provides galvanic isolation and immunity to electromagnetic interference compared to similar copper based extension modules.
The pigtail design of the Sender and Receiver modules relieves stress and clutter on the source and display connector panels. Their compact design makes them ideal for fitting neatly behind equipment for a clean installation, making it a great way to easily extend DVI.
How It Works:
The Sender pigtail end plugs into the DVI source. The Receiver pigtail end plugs into the display. Connect a single-strand 50/125µm multimode (OM2/OM3) SC-terminated fiber optic cable from the Sender module to the Receiver module and a vibrant Hi-Def picture will appear on your display.
Note: The Sender module does not need to be externally powered unless the source does not supply enough power through the DVI connector. 62.5/125µm (OM1) fiber may also be used at reduced maximum range of up to 1000 feet (300 meters).
DPCP is not available when using Apple MDP monitors.

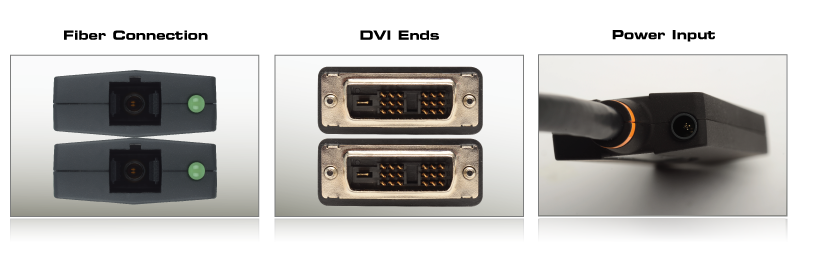

Gefen EXT-DVI-CP-FM10 Extender Layout Overview - See Detailed Layout
Gefen EXT-DVI-CP-FM10 Features and Benefits
- Extends DVI up to 3300 feet (1000 meters) using a single-strand 50/125µm multimode (OM2/OM3) SC-terminated fiber optic cable
- Supports resolutions up to 1920 x 1200 (WUXGA)
- Fiber optic transmission eliminates electromagnetic interference (EMI)
- Pigtail design relieves stress and clutter on the source and display connector panels
- DDC bidirectional support
- HDCP pass-through
- Compact Sender and Receiver modules provide a clean, easy installation
- FCC and CE compliant for EMI/RFI emission

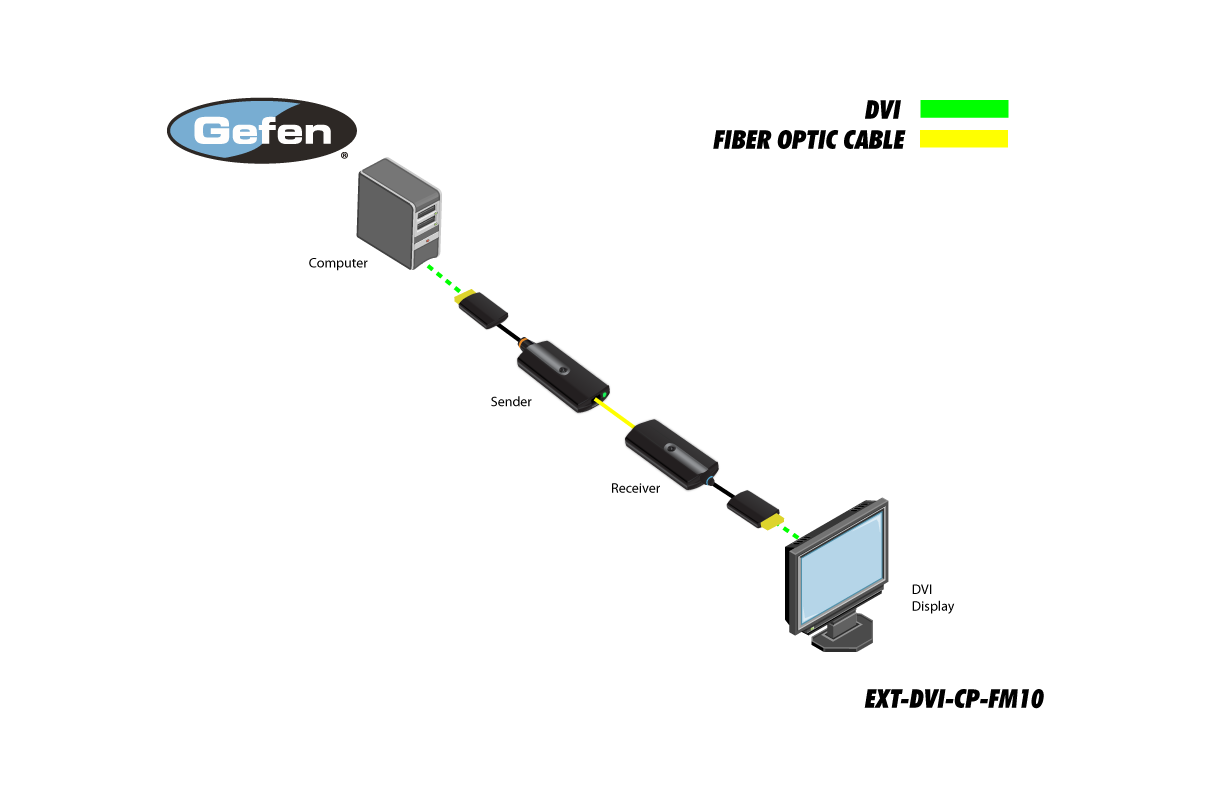

Gefen EXT-DVI-CP-FM10 DVI Extender Diagram

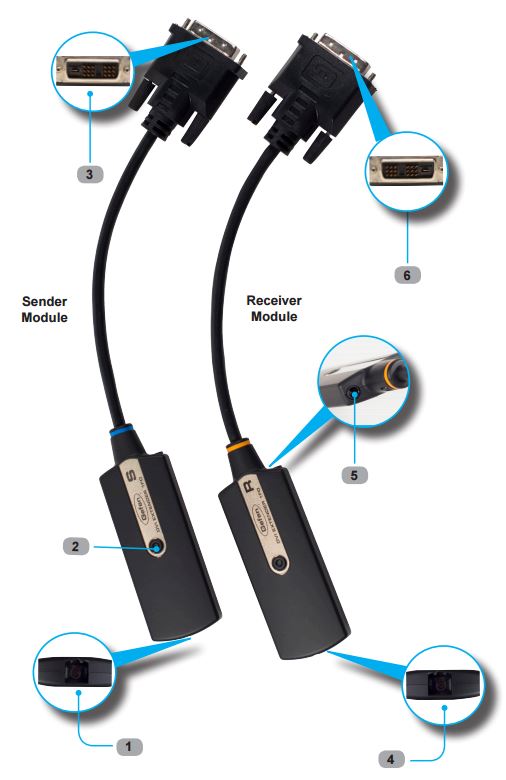

Gefen EXT-DVI-CP-FM10 Layout
| Reference Number | Feature | Description |
|---|---|---|
| 1 | Fiber Optic Connector (Sender module) | Connect an SC-terminated fiber optic cable from the Sender pigtail module to the SC fiber connector on the Receiver pigtail module. |
| 2 | Power Indicator (Sender module) | This LED will glow bright green when the DVI source is supplying sufficient power to the Sender module. If the LED flashes green, then the source is unable to power the Sender module. See page 7 of the manual for more information. |
| 3 | DVI Connector, male (Sender module) | Connect this end of the Sender pigtail module to the computer or other DVI source. |
| 4 | Fiber Optic Connector (Receiver module) | Connect the SC-terminated fiber optic cable from the Sender pigtail module to the SC fiber connector on the Receiver pigtail module. |
| 5 | Power Receptacle | Connect the included 5V DC power supply to this power receptacle on the Receiver pigtail module. Both the Sender and Receiver module have power receptacles. However, the Sender module does not need to be externally powered unless the source does not supply enough power through the DVI connector. |
| 6 | DVI Connector, male (Receiver module) | Connect this end of the Receiver pigtail module to the display. |
EXT-DVI-CP-FM10 Package Contents
- (1) EXT-DVI-CP-FM10 DVI Pigtail Extender Sender Unit (EXT-DVI-CP-FM10S)
- (1) EXT-DVI-CP-FM10 DVI Pigtail Extender Receiver Unit (EXT-DVI-CP-FM10R)
- (1) 5V DC Power Supply (EXT-PS52AIP-1.3)
- (1) Quick Start Guide (QSG-DVI-CP-FM10)
EXT-DVI-CP-FM10 Resources
Gefen EXT-DVI-CP-FM10 Manual (PDF)
Gefen EXT-DVI-CP-FM10 Brochure (PDF)
Gefen EXT-DVI-CP-FM10 Specifications
| Mechanical | |
| Width | 1.54 in. (39.11 mm.) |
| Height | 0.63 in. (16 mm.) |
| Depth | 11.49 in. (291.84 mm.) |
| Ship Weight | 1 lbs. (0.45 kg) |
| Power | |
| Power Supply | 5V DC |
| Power Consumption | 1.5 W (max.) |
| Connectors | |
| Video Input | 1 x DVI-D, 19-pin, male |
| Video Output | 1 x DVI-D, 19-pin, male |
| Link Connectors | 1 x SC Fiber Type |
| Electrical | |
| Maximum Pixel Clock | 165 MHz |
| Maximum Resolution | Up to 1920 x 1200 WUXGA |
| Environmental | |
| Operating Temperature | 32 - 122 °F (0 to + 50 °C) |
| Storage Temperature | -4 - 158 °F (-20 - 70 °C) |
| Relative Humidity | 10% to 80%, non-condensing |
UPC 845344090375
EAN 0845344090375
