Belkin 17'' LCD Rack Console with 8-Port KVM Switch, Single-Rail Technology
F1DC108B-SR
The Belkin F1DC108B-SR is a 17" LCD Rack Console with built-in 8-Port PRO3 KVM Switch which enables secure and compact centralized server control. The KVM Switch features dual-port cabling, with cross-platform support for PS/2 and USB servers. With its slim 1U design, the Rack Console fits a standard 19-inch rack and works with any server.
Note: One cable is required for every two servers attached to integrated KVM. KVM Cables are sold separately.
Belkin F1DC108B-SR Features:
- Integrated KVM - Available Belkin OmniView PRO3 KVM switches; 8-port KVM solution within the same 1U of space; scalable to manage up to 256 systems
- Saves space with 1U 19-inch, rack-mount drawer design
- Includes a key-locking mechanism to prevent unauthorized access to console
- Features grade-A, 17" LCD TFT active-matrix, color panel for high quality
- Integrates compact 106-key function keyboard, including numeric 10-key pad
- Designed especially for 4-post racks
- Features adjustable brackets for broadest rack compatibility and ease
- Single-rail design - easy to use, space saving design for maximizing efficiency at the server rack
- Dual-port cabling reduces cable bulk by 55 percent when compared to conventional KVM cabling by connecting two servers per cable
- Wide viewing angle - 115-degree monitor articulation provides superior viewing flexibility
- Universal mounting - adjustable mounting rails accommodate most 19" EIA rack/depth configuration
- USB and PS/2 compatibility gives expanded connectivity in a mixed server environment
- Dedicated daisy-chain ports let you expand your KVM configuration without sacrificing CPU ports
- Ensures consistent compatibility with flash-upgradeable firmware
Package Includes:
- 17" LCD Rack Console
- 12V DC, 6A External Power Supply
- Bracket Kit and Required Hardware
- Quick Installation Guide
- Keys
- User Manual
- DB9-to-RJ11 Serial Flash Cable

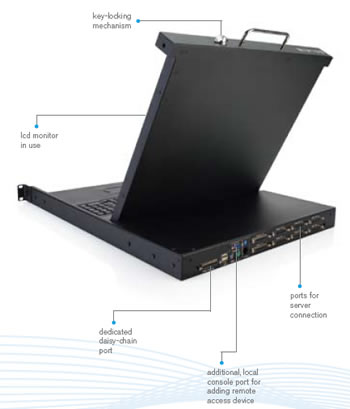

Belkin 17" LCD Rack Console Feature Diagram
Belkin F1DC108B-SR Specifications:
| Mechanical | |
| Height | 1.75 in. (44.5 mm.) |
| Width | 19 in. (482.6 mm.) |
| Depth | 23.5 in. (597 mm.) |
| Weight | 33.0 lbs. (15.0 kg.) |
| Environmental | |
| Operating Temperature | 32° to 104° F (0° to 40° C) |
| Storage Temperature | -4° to 140° F (-20° to 60° C) |
| Humidity | 0-80% RH, non-condensing |
| Power | 12V DC, 6A power adapter, center-pin-positive polarity |
| Keyboard/Mouse | |
| Keyboard Type | Laptop style |
| Keyboard/Mouse Connection | PS/2, USB |
| Operating Life of Keys | 8 million cycles |
| Mouse Type | Touchpad style |
| KVM Switch | 8-ports |
| Display | |
| Type | 17" LCD active-matrix color |
| Maximum Resolution | 1280 x 1024 |
| Users | 1 |
| Material/Enclosure | Heavy-duty steel |
| Rail Type | Single-rail technology |
Question: I added another server but purchased another cable to plug into additional local console port for adding remote devices. However it does not display.
Answer: Thank you for your inquiry. Due to the varied nature of user environments, detailed product support is beyond the scope of this simple FAQ.
Having said that, if you don't have space on an existing Dual-Port Micro-Cable Kit to attach an additional server, you will need another dual-port cable kit for USB or PS/2 such as the F1D9400-06 ( https://www.kvm-switches-online.com/f1d9400-06.html ) or the F1D9401-06 ( https://www.kvm-switches-online.com/f1d9401-06.html ). This cable will plug into the next available "Hosts XX & YY" (where XX and YY are sequential number pairs from 1 to 16). The additional local console ports would be to add another keyboard, mouse and monitor setup to access the attached servers.
For additional trouble shooting tips, please consult the F1DC108B-SR manual, which you can download here.
Question: Does this product support windows 2008 server environment?
Answer: Thank you for your inquiry. The short answer is, yes it should. The attached Belkin OmniView PRO3 KVM is a hardware based solution, and as such, should work with a Windows 2008 Server Environment.
The long answer, however, is a little more complicated. Some users are having issues with Windows 7 and certain KVMs due to the way in which Windows 7 continuously reads the EDID from attached monitors and constantly polls other devices such as keyboards and mice. While we have not heard of any issues with Server 2008, it is entirely possible that that OS displays the same issues since it is based on the same core.
The manual for the KVM monitor drawer, as well as the PRO3 KVM itself, do not explicitly state Windows Server 2008 as a compatible OS in the specifications. Nor have we tested either with Windows Server 2008. It is entirely possible that the switch doesn't support Server 2008. We have placed an inquiry with Belkin, if we receive new information regarding compatibility, we will update this post.
Question: Will the following cable work with the KVM switch; db15 male --db15female 25 ft 3-in1 universal PS/2 KVM Cable: SVP23N1_25. I tried putting it in theadditional local console port on the back of the switch.
Answer: Thank you for your inquiry. Unfortunately, no, that cable will not work. The integrated PRO3 KVM requires proprietary cables. Additionally, if you are attaching a server, the proprietary cable will need to be plugged into the SCSI-50 dual-host ports. The console ports are strictly for adding an additional keyboard, mouse and monitor.
Question: I have one of these KVMs and need a manual to describe what key strokes are to enter the OSD.
Answer: Thank you for your inquiry. You can download the manual for this device here: http://www.42u.com/pdf/man_f1dc1xxb-sr_pm00395-a.pdf.
Question: I need the cables for this switch. Where can I buy them?
Answer: Thank you for your inquiry. The switch on the back of this unit requires the Belkin Dual-Port Micro-Cable Kit. PS/2 style cables are part number F1D9400-XX, and USB cables are F1D9401-XX (-xx represents a specific length).
The 6 foot PS/2 version can be found here: https://www.kvm-switches-online.com/f1d9400-06.html and the 6 foot USB version here: https://www.kvm-switches-online.com/f1d9401-06.html.
Answer: Thank you for your inquiry. Due to the varied nature of user environments, detailed product support is beyond the scope of this simple FAQ.
Having said that, if you don't have space on an existing Dual-Port Micro-Cable Kit to attach an additional server, you will need another dual-port cable kit for USB or PS/2 such as the F1D9400-06 ( https://www.kvm-switches-online.com/f1d9400-06.html ) or the F1D9401-06 ( https://www.kvm-switches-online.com/f1d9401-06.html ). This cable will plug into the next available "Hosts XX & YY" (where XX and YY are sequential number pairs from 1 to 16). The additional local console ports would be to add another keyboard, mouse and monitor setup to access the attached servers.
For additional trouble shooting tips, please consult the F1DC108B-SR manual, which you can download here.
Question: Does this product support windows 2008 server environment?
Answer: Thank you for your inquiry. The short answer is, yes it should. The attached Belkin OmniView PRO3 KVM is a hardware based solution, and as such, should work with a Windows 2008 Server Environment.
The long answer, however, is a little more complicated. Some users are having issues with Windows 7 and certain KVMs due to the way in which Windows 7 continuously reads the EDID from attached monitors and constantly polls other devices such as keyboards and mice. While we have not heard of any issues with Server 2008, it is entirely possible that that OS displays the same issues since it is based on the same core.
The manual for the KVM monitor drawer, as well as the PRO3 KVM itself, do not explicitly state Windows Server 2008 as a compatible OS in the specifications. Nor have we tested either with Windows Server 2008. It is entirely possible that the switch doesn't support Server 2008. We have placed an inquiry with Belkin, if we receive new information regarding compatibility, we will update this post.
Question: Will the following cable work with the KVM switch; db15 male --db15female 25 ft 3-in1 universal PS/2 KVM Cable: SVP23N1_25. I tried putting it in theadditional local console port on the back of the switch.
Answer: Thank you for your inquiry. Unfortunately, no, that cable will not work. The integrated PRO3 KVM requires proprietary cables. Additionally, if you are attaching a server, the proprietary cable will need to be plugged into the SCSI-50 dual-host ports. The console ports are strictly for adding an additional keyboard, mouse and monitor.
Question: I have one of these KVMs and need a manual to describe what key strokes are to enter the OSD.
Answer: Thank you for your inquiry. You can download the manual for this device here: http://www.42u.com/pdf/man_f1dc1xxb-sr_pm00395-a.pdf.
Question: I need the cables for this switch. Where can I buy them?
Answer: Thank you for your inquiry. The switch on the back of this unit requires the Belkin Dual-Port Micro-Cable Kit. PS/2 style cables are part number F1D9400-XX, and USB cables are F1D9401-XX (-xx represents a specific length).
The 6 foot PS/2 version can be found here: https://www.kvm-switches-online.com/f1d9400-06.html and the 6 foot USB version here: https://www.kvm-switches-online.com/f1d9401-06.html.
