The SmartAVI FDX-2000S offers fiber extensions for any Keyboard, Mouse, Audio, DVI-D and RS-232 Signal up to 1,400 feet. The SmartAVI FDX-2000 consists of a transmitter and receiver that extend KVM, DVI-D, audio and RS-232 signals. It is a professional quality KVM capable of extending signals up to 1,400 feet over a single multimode fiber optic cable.
SmartAVI FDX-2000S Features:
- Top Signal Quality at Maximum Extension over Multimode Fiber (1,400 ft.)
- Superior Image Quality at all Resolutions
- Video Resolutions up to 1920 x 1200 at 60Hz (1280 x 1024 at 75Hz)
- Customizable/Programmable DDC Table
- Supports PS/2 Keyboard/Mouse
- Supports Stereo Audio
- Supports DVI-D
- Supports RS-232 Control from 3600bps to 115,000bps
- Supports all PC/AT and PS/2 keyboards Fully Transparent
- Fiber Plug Type LC
- Compatible With all Operating Systems
- Compatible With all Major KVM Switches
- Compact Metal Casing
SmartAVI FDX-2000S Applications:
- Corporate or Educational Presentations
- Financial (Remote Servers/User Control)
- Call Centers
- Industrial (Long-Range Workstation Isolation)
- Information Terminals/Kiosks
- Airport Installations (Air Traffic Control/Passenger Information)
- KVM Extension where Exceptional Quality of Signal is Crucial
- Medical (Remote Operation Away from Sensitive/Magnetic Equipment)
- Recording (for Large Studios where Editing/Mixing Stations are Compact and/or Require Complete Silence)

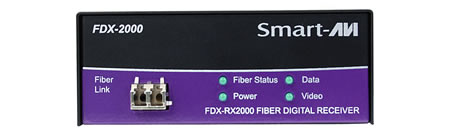

FDX-2000 Front

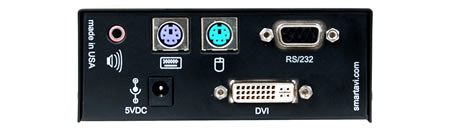

FDX-2000 Back

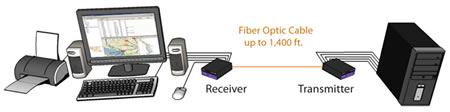

FDX-2000S Connection Diagram
SmartAVI FDX-2000S Specifications:
| Mechanical | |
| Height | 5.5 in. (13.9 cm.) |
| Width | 4.5 in. (11.4 cm.) |
| Depth | 1.7 in. (4.3 cm.) |
| Weight | 8 lbs. (3.6 kg.) |
| Video Data | |
| Input Interface | DVI-D Female (Single-Link) |
| Resolution | 1920 x 1200 at 60Hz |
| DDC | Internal Table can be Re-programmed |
| Audio | |
| Operating Voltage Signal Type | Stereo Audio |
| Bandwidth | 15 MHz, 0dB |
| Impedance | 10K Ohm |
| Connector | 3.5mm Stereo Mini Female |
| Other | |
| RS-232 | Data up to 115,000bps |
| DB-9 | Female for TX, Male for RX |
| Fiber Extender | 225m @ Multimode 62,5u 450m @ Multimode 50u Fiber-Plug type LC |
UPC 813280015608EAN 0813280015608Question: Is the KVM extender UL listed/certified (not just the wall wort)?
Answer: Thank you for your inquiry. According to SmartAVI the FDX-2000 has received approvals from UL, CE and is ROHS compliant.
Question: Hello. good to contact you. We are conHello. good to contact you. We are contractor for delivery of airfield lighting equipment to a domestic airport in Mongolia. We have installed the control system in the 1st floor and remote KVM in the 3rd floor. We are using extender over UTP cable and have a problem. The problem is interference from power source and aviation radio equipment. our vendor is recommending to use extender over fibre optic cable. Will your system assist in eliminating this problem.tractor for delivery of airfield lighting equipment to a domestic airport in Mongolia. We have installed the control system in the 1st floor and remote KVM in the 3rd floor. We are using extender over UTP cable and have a problem. The problem is interference from power source and aviation radio equipment. our vendor is recommending to use extender over fibre optic cable. Will your system assist in eliminating this problem. Sorry that I have misspelled my email address in the previous submission. This is correct one.
Answer: Thank you for your inquiry. In general, fiber-optic cables are immune to electromagnetic interference (EMI) and radio-frequency interference (RFI), making fiber-optic cables a good choice when experiencing heavy interference from these types of sources (in your case power cords and radio traffic). However, that is not to say that a particular fiber extension unit may or may not work in your particular environment. There may be other factors involved.
To find a local distributor of this SmartAVI fiber extension product, please contact SmartAVI directly:
http://www.smartavi.com/techpartners/asia.html.
Question: Please advise what procedure is necessary following loss of any peripheral device or the power supply to the FDX-2000S to re-establish the connection or device, is it necessary to re-boot the PC or does everything re-establish automatically?
Answer: Thank you for your inquiry. In most cases, the FDX-2000 extender should reconnect without any issues. Problems with extenders not reconnecting are typically caused by DDC information getting lost - DDC provides plug-and-play capability for displays. This SmartAVI fiber extender has the ability to "learn" and store the DDC information for the attached monitor, preventing this common reconnection issue (as long as the "learning" procedure has been followed). In rare cases, there may be other factors that prevent a proper handshake, depending on particular environments.
Question: We are currently using a fibre optic single video kvm extender. It was working fine until we upgraded the computers video driver because of another issue. The Signal has now been lost and was wondering if the Crystalview has compadiability issues with certain video drivers?
Answer: We do not typically see problems with drivers, please give us a call to help trouble shoot. Or give the engineers at Rose a quick call: Rose: 800-333-9343
Question: Hi, is this available with multi mode fiber?
Answer: Thank you for your inquiry,
This SmartAVI FDX-2000 features multi-mode fiber extension.
See below for some alternative options as well.
Single-mode (or multi-mode) + USB alternative:
Adder ALIF1002P
Multi-mode + USB alternative:
Adder XD150FX-MM
