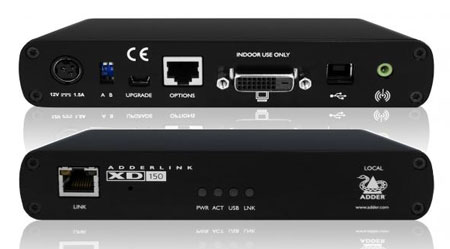

ADDERLink XD150FX-MM is a high performance multi-mode duplex fiber KVM (Keyboard, Video, Mouse) extender that enables you to locate your critical computing hardware in a secure and temperature controlled environment away from the user work station whilst maintaining the original user desktop experience.
Video, USB2.0 and audio all pass along a single duplex LC fiber cable. The choice of fiber used with the AdderLink XD150FX modules has a considerable effect on the distance over which operation can take place. Using multi-mode fiber you can achieve distances up to 400m (1,312 feet):
A REST (REpresentational State Transfer) API is available with all functionality to which authorized 3rd party control systems can interface.

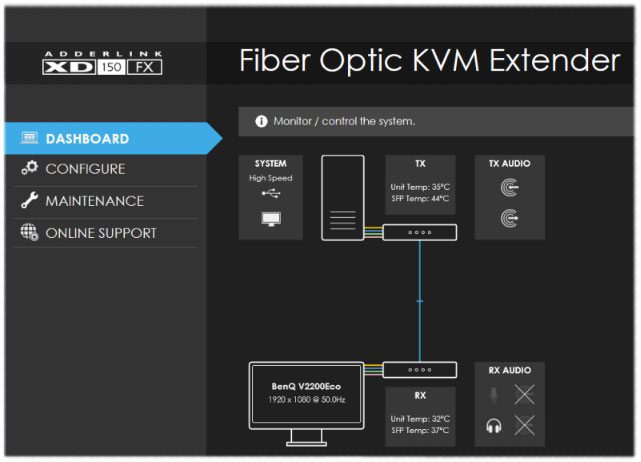

The XD150FX can be controlled and monitored via a web interface. Temperature and status are viewable and each function can be individually controlled. Web interface security is by HTTP digest authentication (RFC 2617) with username and password as requested information.
The XD150FX-MM video extension system is visually lossless with no visible artefacts or latency allowing you to be certain of quality and control whilst seperated from your computer.
The transparent USB 2.0 link supports enables connection of any USB human interface device from mice and keyboards through to touch screens, graphics tablets, jog shuttles, joysticks and 3D explorers. Mass storage devices and isochronous devices such as webcams and headsets can also be used.

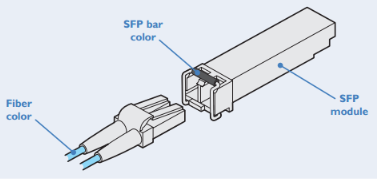

The XD150FX unit is fitted with SFP cages allowing different types of fiber to be utilised. Distance is dependent on the cable type and fiber module.
The XD150FX delivers CD-quality stereo audio (24-bit sampling at 96kHz) is available to transfer audio between local and remote. A microphone and headphones are also supported.
The remote unit has an in-built 4-port USB hub to enable several USB devices to be connected.
The AdderLink XD150FX extender is delivered in a zero config state so you can plug in the units and start working with them straight away. There is no need for drivers or software to be installed.
The XD150FX-MM extender has an intelligent EDID management to allow the true characteristics of the monitor to be passed back to the computer.
RS232 with RTS/CTS flow control can be passed between the units to a maximum baud rate 115K2 via the options port. Adder's RC4 remote key switch is also supported.
Locking 3 Pin DC jack with 2 power adaptors included.
Adder XD150FX-MM Datasheet (PDF)
Adder XD150FX-MM Manual (PDF)
Adder XD150FX-MM Quick Start (PDF)
Brochures
ADDER Product Focus (PDF)
| Hardware Compatibility | All computers with DVI, USB and audio. |
| DVI Interface | The system supports dual-link DVI resolutions to a maximum of 2560 x 1600 @ 60Hz. |
| USB 2.0 | Supports USB2.0 devices (low, full and high speed). Isochronous devices are supported. |

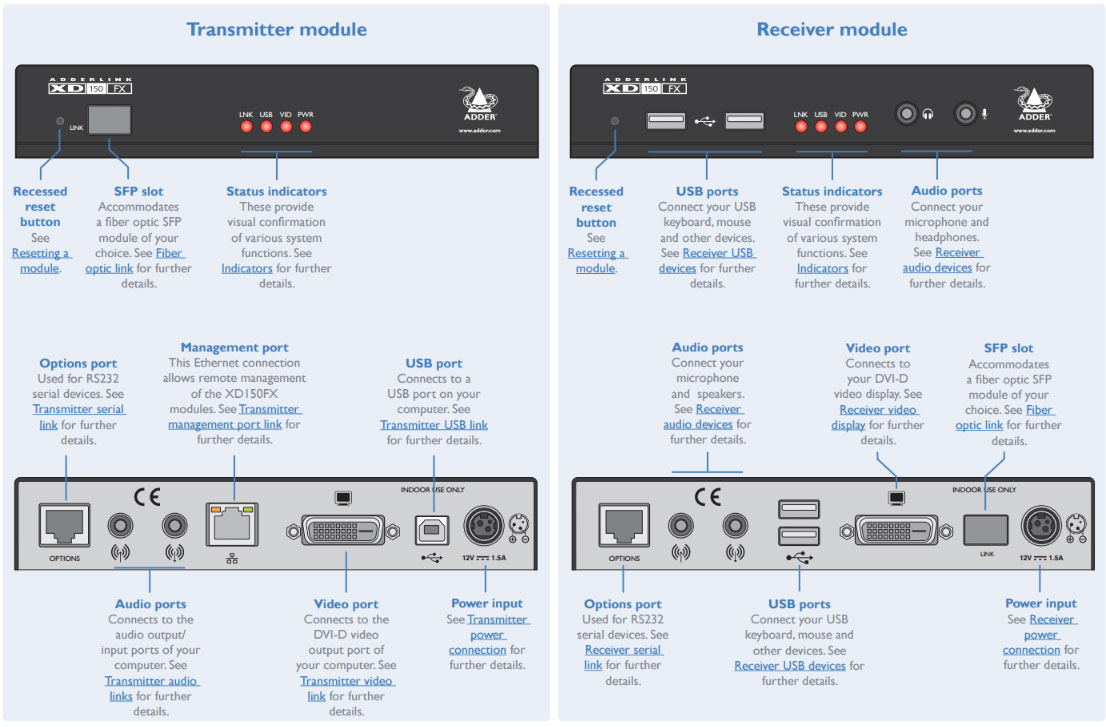

| Connections | Transmitter (TX) Receiver (RX) |
| Physical design | Compact case, robust metal construction. 169mm/6.65" (w), 31mm/1.22" (h), 120mm/4.8" (d) 0.6kg/1.3lbs. |
| Power | 3 Pin Locking DC jack (2 x power adapter included),100-240VAC 50/60Hz, 0.7A, input to power adapter, 12VDC 18W output from power adapter. |
| Operating temperature | 0 to 40°C / 32 to 104°F |
| Approvals | CE, FCC. |
XD150FX-MM is also known as the XD150FX-MM-US and XD150FX-MM-USA.
