SmartAVI Point to Point DVI-D USB Multimode Fiber Extender with RS232 and Audio (1400ft)
FDX-3000S
$1,999.00
Discontinued
Replaced by: SmartAVI FDX-3000-PRO
Recommended replacement: Adder XD150FX-MM
Alternative options: Contact Us
Model: Multi-Mode
The SmartAVI FDX-3000 is a DVI Fiber extender that is used for the extension of any USB Keyboard and Mouse, Stereo Audio, DVI-D and RS-232 Signal up to 1,400 Feet. The FDX-3000 consists of a transmitter and receiver that extend KVM, DVI-D, audio and RS-232 signals. It is a professional quality KVM capable of extending signals up to 1,400 feet over a single multimode fiber optic cable.

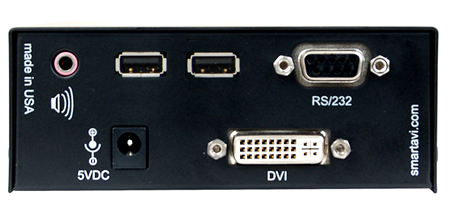

SmartAVI FDX-3000 DVI Fiber Extender Back View
SmartAVI FDX-3000 Features:
- Top Signal Quality at Maximum Extension over Multimode Fibe (1,400 ft.)
- Superior Image Quality at all Resolutions
- Video Resolutions up to 1920 x 1200 at 60Hz (1280 x 1024 at 75Hz)
- Customizable/Programmable DDC Table
- Supports USB Keyboard/Mouse
- Touch Screen Compatible
- Supports Stereo Audio
- Supports DVI-D
- Supports RS-232 Control from 3600bps to 115,000bps
- Supports all USB keyboards Fully Transparent
- Fiber Plug Type LC
- Compatible With all Operating Systems
- Compatible With all Major KVM Switches
- Compact Metal Casing
Package Includes:
- (1) FDX-3000 Multimode Transmitter
- (1) FDX-3000 Multimode Receiver
- (2) Power Supply (2) 5V 3A

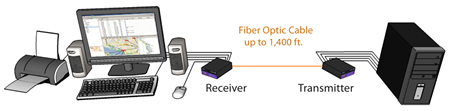

SmartAVI DVI Fiber Extender Application Diagram
SmartAVI FDX-3000 Specifications:
| Mechanical | |
| Dimensions | 4.5 x 5.5 x 1.70 in. |
| Weight | 8 lbs. (4 kg.) |
| Video Data | |
| Input Interface | DVI-D Female (Single-Link) |
| Resolution | 1920x1200 at 60Hz |
| DDC | Internal Table can be Re-programmed |
| Audio | |
| Signal Type | Stereo Audio |
| Bandwidth | 15MHz, 0dB |
| Impedance | 10K Ohm |
| Connector | 3.5mm Stereo Mini Female |
| RS-232 | Data up to 115,000bps |
| USB | USB Keyboard and Mouse Compliant |
| Fiber Extender | Fiber |
UPC 813280017596
EAN 0813280017596
Question: This product have UL certificate ?
Answer: Yes, the FDX-3000S has the following approvals: UL, CE, ROHS Compliant.
Question: I require a dual dvi screen extender. what do you suggest.
Answer: Thank you for your inquiry. Without knowing more about your particular project, it would be difficult to recommend an appropriate solution. Please call us at 1-877-586-6654 to discuss your project further.
Question: Does this support/refresh/pass through I2C/EDID or does it cache the information once?
Answer: Thank you for your inquiry,
I have confirmed with SmartAVI that the EDID/I2C emulation within the FDX-3000S pings the display on connect, and then caches that information - so it is not actively pinging the display.
If you would like a recommendation based on your setup, please feel free to contact your KVM Switches Online sales representative directly at 1-877-586-6654, at sales@kvm-switches-online.com, or via our online Chat functionality.
Question: Do these kvm extenders support CAC enabled keyboards for government usage?
Answer: Thank you for your inquiry,
The SmartAVI FDX-3000S features 'Fully Transparent' USB ports which will support any USB device, including CAC enabled keyboards for government usage.
Question: We have experienced an issue with the keyboard & mouse losing communications with the PC. The solution has been to cycle power on the remote KVM switch, rebooting the PC has resolved the issue as well. Can you provide additional support to help to resolve this issue?
Answer: Thank you for your inquiry,
We are sorry to hear of the troubles you are experiencing!
This sounds like it may be due to the remote KVM Switch you are using - Some older or cheaper KVM switches do not feature USB emulation, which ensures that Keyboard & Mouse devices don't get disconnected due to inactivity or switching sources. Please feel free to get in touch with your KVM Switches Online sales representative for an ideal KVM switch for your application.
For troubleshooting your extender step-by-step, please feel free to contact SmartAVI Technical support:
Email: info@smartavi.com or fill out this contact form
Call: (800) 284-2131
If this issue is due to the extender and SmartAVI is not able to resolve this issue for you, we would recommend looking into the Adder XD150FX-MM as an alternative.
