Gefen HDMI 33 ft. 60 GHz Wireless Extender - Uncompressed 1080p, Low Latency
GTV-WHD-60G
Discontinued
Recommended replacement: Gefen EXT-WHD-1080P-LR
Alternative options: Contact Us
The GefenTV GTV-WHD-60G Wireless for HDMI 60GHz extender system sends high definition audio and video to any HDTV display up to 33 feet (10 meters). It extends HDMI A/V content from computers, set-top boxes, and Blu-ray players to a remote HDCP-compliant Hi-Def display.
The GTV-WHD-60G is comprised of small table-top Sender and Receiver units. It supports resolutions up to 1080p Full HD, 3DTV, CEC, and 7.1-channels of High Bit Rate (HBR) lossless digital audio such as Dolby TrueHD, DTS-HD Master Audio. The Wireless for HDMI 60GHz transmits within a room and does not require line-of-sight placement of transceivers for good reception. Thanks to its small form-factor, high performance, and near-zero latency, this product is ideal for high-definition A/V extension within a conference room or home theater installation.
How It Works:
Connect the included HDMI cable from the Hi-Def to the Sender unit. Connect the included HDMI cable from the Receiver unit to the HDTV display. Connect the power supplies to both the Sender and Receiver units and to available electrical outlets. Power-up the source and the display. Press the power buttons on the Sender and Receiver units and make sure that they are on. A clear and vivid Hi-Def picture will appear on the screen and high resolution 7.1 channel audio will be played back through the audio system. CEC commands are also transferred seamlessly between connected HDMI components.
Gefen GTV-WHD-60G Highlights
Gefen GTV-WHD-60G Features
- Wireless extension of HDMI up to 33 feet (10 meters)
- Supports resolutions up to 1080p Full HD
- HDMI Features Supported:
- HDCP pass-through
- 3DTV pass-through
- CEC pass-through
- Dolby TrueHD, DTS-HD Master Audio, and LPCM digital audio streams up to 7.1 channels
- Lip Sync
- Uncompressed High Definition A/V from source to display
- Near zero latency (less than one frame)
- Operates in the uncluttered 60GHz frequency region, minimizing the chances of interference from household devices such as cordless phones chances of interference from household devices such as cordless phones or WiFi equipment
- Field upgradable via USB port
GTV-WHD-60G Package Contents
- (1) Wireless for HDMI 5 GHz SR Sender Unit
- (1) Wireless for HDMI 5 GHz SR Receiver Unit
- (1) 5 ft. HDMI Cable (M-M)
- (2) 5 ft. USB to "Straight" Mini USB Cables
- (1) 1.5 ft. USB to "Angled" Mini USB Cable
- (2) 5V DC Power Supplies with changeable AC plugs
- (1) IR Remote Control
- (1) IR Extender Module
- (2) Screws and Wall Anchors - for wall-mounting the Receiver
- (1) Quick-Start Guide

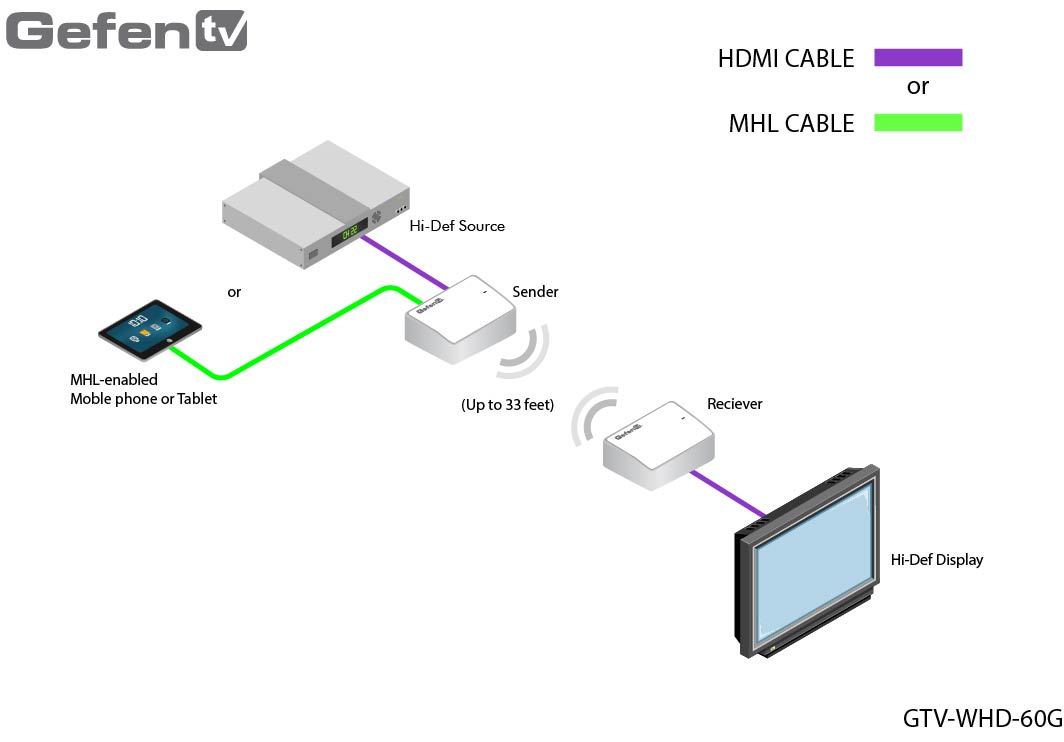

Gefen GTV-WHD-60G Diagram
Learn More - GTV-WHD-60G
Gefen GTV-WHD-60G Brochure (PDF)
Gefen GTV-WHD-60G Manual (PDF)
Gefen GTV-WHD-60G Specifications
| Mechanical | |
| Width | 3.4 in (85mm) |
| Height | 2.8 in (72mm) |
| Depth | 0.6 in. (31mm) |
| Unit Weight | 0.2 lb (0.1 kg) |
| Ship Weight | 2 lb (0.9 kg) |
| Operational | |
| Resolutions (max.) | 1080p Full HD |
| Audio | - Linear PCM - DTS-HD Master Audio - Dolby TrueHD |
| Frequency | 60 GHz |
| Maximum Pixel Clock | 165 MHz |
| Antenna Type | 24-Antenna Array |
| Connectors, Controls, and Indicators | |
| Video Input (Sender) | (1) HDMI Type A, 19-pin, male |
| Video Output (Receiver) | (1) HDMI Type A, 19-pin, female |
| USB Connector (Sender/Receiver) | 1 x Micro-B (firmware update only) |
| Power button (Sender/Receiver) | (1) Tact-type |
| Link / Pair Button (Sender/Receiver) | (1) Tact-type |
| Power Indicator (Sender/Receiver) | (1) LED, blue |
| Environmental (Sender/Receiver) | |
| Operating Temperature | +32 to +104 °F (0 to +40 °C) |
| Operating Humidity | 10 to 90%, Relative Humidity, non-condensing |
| Storage Temperature | -4 to +158 °F (-20 to +70 °C) |
| Storage Humidity | 5 to 90%, Relative Humidity, non-condensing |
| Power | |
| Power Supply (Sender/Receiver) | 5V / 2A DC |
| Power Consumption (Sender/Receiver) | 10W max. |
UPC 845344044040
EAN 0845344044040
