Aten KE6940A Dual-Monitor DVI KVM Over IP Extender Kit

KE6940AKIT01

$3,090.00$2,800.73
Save $289.27
Series: KE6940
  • KE6940
  • + Compare Family
Version: Kit including KE6940AT Transmitter + KE6940AR Receiver
Video Input: Dual Monitor DVI-I (VGA with adapter)
Power Method: Standard AC
FREE Shipping on orders over $100

Utilizing expertise in Over IP KVM solutions, the KE6940A series is an IP based DVI KVM Extender that allows access to a computer system from a remote USB console (USB keyboard, USB mouse, DVI monitor) anywhere over an intranet. The KE6940A Dual View Extender supports two DVI displays at each end, allowing the video output to display on two monitors.

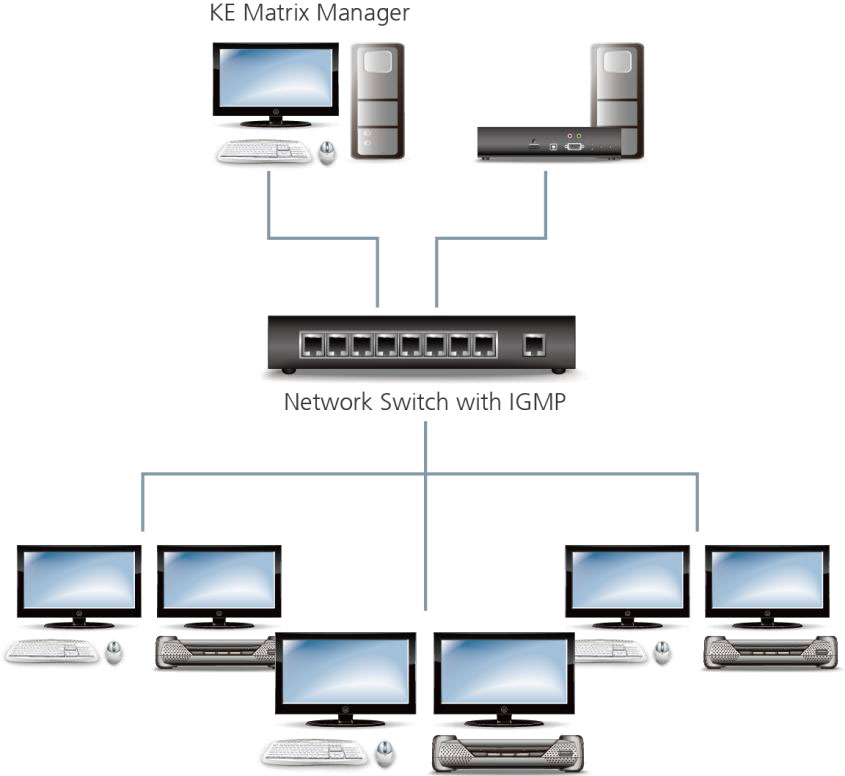

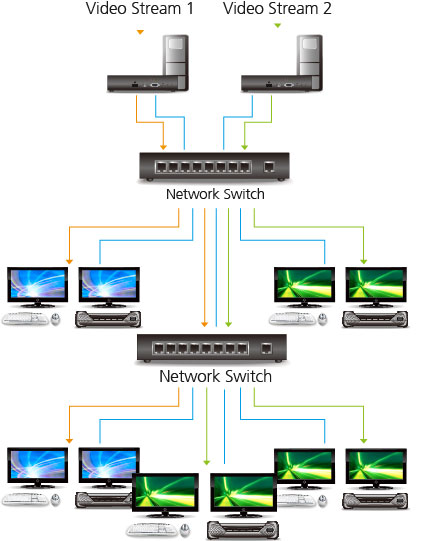

The DVI KVM Over IP Extender consists of a Transmitter unit that connects to the computer and a Receiver unit that provides console access from a separate location. The computer is accessed from the remote console over a standard TCP/IP network via Cat 5e cable that allows point-to-point, point-to-multipoint, and multipoint-to-multipoint administration. This is perfect for use in any type of installation where you need to place the console where it is convenient, but you want the computer to reside in a secure location - away from the keyboard, mouse and display in use. As a Matrix Extender it can connect single/multiple: computers-to-consoles in several ways: one-to-one (Extender mode), one-to-many (Splitter mode), many-to-one (Switch mode), or many-to-many (Matrix mode).

The Matrix Manager software provides advanced features for username/password authentication, autodetection of all KE6940A devices on the same subnet and define connections that can be switched and shared. New security features also provide extra protection, supporting AES-128bits encryption for secured data transmission, while RADIUS, LDAP, AD or remote user authentication provides added layer of connection security. With an OSD, RS-232 support, and Auto MDIX, the KE6940A is the most cost-effective and convenient way to get a full digital extension from anywhere on the intranet.

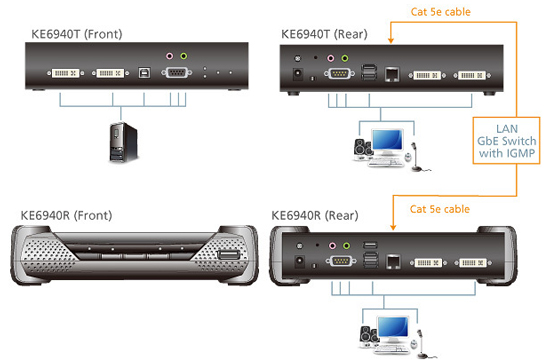

KE6940A Application

Aten KE6940A Features

  • Remotely access computers on your KVM installation via intranet
  • Dual console operation - control your system from both the transmitter and receiver USB keyboard, monitor, and mouse consoles
  • RS-232 serial ports - allows you to connect to a serial terminal for configuration, and serial devices such as touchscreens and barcode scanners
  • Superior video quality - up to 1920 x 1200 @ 60 Hz; 24-bit color depth
  • DVI digital and analog monitor support
  • Supports standard VGA resolutions from 640x480 to 1920x1200 at 60Hz
  • OSD (On Screen Display) on the Receiver configures both units
  • Supports AP GUI operation
  • Remote login security
  • Built-in 8KV/15KV ESD protection and 2KV surge protection
  • Supports stereo speakers and stereo microphone
  • Auto-MDIX - automatically detects cable type
  • Supports widescreen formats
  • Support High-Quality Video streaming
  • Virtual Media Support
  • Hot pluggable
  • Rack Mountable
  • Upgradeable firmware

Aten KE6940A Applications

Extender mode (One-to-One)

This is the simplest setup; using a single transmitter to receiver connection that extends a computer's distance from the keyboard, mouse and monitor. One-to-one setups can be directly connected by a Cat 5e/6 cable between two units - up to 100 meters (KE89xx & KE99xx models can also optionally be connected via optical fiber cables for distances up to 10 kilometers).

You can also manage point-to-point connections, set up over a LAN with no distance limitations, by assigning each device an IP address.

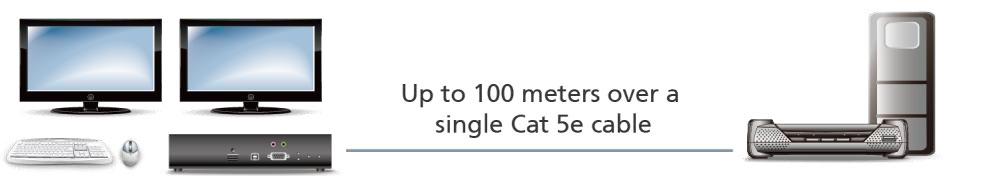

Aten KE6940A Point-To-Point Extension Application Diagram

* Supported via the KE Matrix Management Software (CCKM)


Aten KE6940AKIT01 Package Includes

Aten KE6940A Back Rear

  • (1) KE6940AT DVI KVM Over IP Extender Transmitter
  • (1) KE6940AR DVI KVM Over IP Extender Receiver
  • (2) Power Adapters
  • (1) USB KVM Cable
  • (1) DVI-D Cable 2m
  • (1) Mounting Kit for KE6940AT
  • (1) User Instructions
  • (1) 3-Year Warranty

Aten KE6940A Resources

Aten KE6940A Downloads & Resources Aten KE6940A Datasheet (PDF)
Aten KE6940A Manual (PDF)
Aten KE Matrix Implementation Guide (PDF)

Aten KE6940A Specifications

KE6940ARKE6940AT
Connectors
Virtual Media 2 x USB Type A Female (White)N/A
Console Ports2 x USB Type A Female (White)
2 x DVI-I Female (White)
1 x Mini Stereo Jack (Green)
1 x Mini Stereo Jack (Pink)
1 x DB-9 Male (Black)		2 x USB Type A Female (White)
2 x DVI-I Female (White)
1 x Mini Stereo Jack (Green)
1 x Mini Stereo Jack (Pink)
1 x DB-9 Male (Black)
KVM PortsN/A1 x USB Type B Female (White)
2 x DVI-I Female (White)
1 x Mini Stereo Jack (Green)
1 x Mini Stereo Jack (Pink)
1 x DB-9 Female (Black)
Power1 x DC Jack (Black)1 x DC Jack (Black)
LAN Ports1 x RJ-45 (Black)1 x RJ-45 (Black)
Switches
OSD1x PushbuttonN/A
Video1x PushbuttonN/A
Graphics1x PushbuttonN/A
Reset1 x Semi-recessed Pushbutton1 x Semi-recessed Pushbutton
LEDs
Link1 (Green / Orange)1 (Green / Orange)
Power1 (Blue)1 (Blue)
Local1 (Green)1 (Green)
Remote1 (Green)1 (Green)
Emulation
Keyboard & MouseUSBUSB
Power ConsumptionDC 5VDC 5V
Emulation
Video ResolutionUp to 1920 x 1200 @ 60HzUp to 1920 x 1200 @ 60Hz
Environmental
Operating Temperature0 - 50°C0 - 50°C
Storage Temperature-20 - 60°C-20 - 60°C
Humidity0-95% RH, Non-condensing0-95% RH, Non-condensing
Physical Properties
HousingMetalMetal
Weight1.25 kg1.15 kg
Dimensions (L x W x H)22.75 x 17.16 x 5.48 cm21.50 x 16.29 x 4.18 cm
UPC / EAN Barcode icon
UPC 881317512802
EAN 0881317512802
Question: What is the max distance for the IP Extender?
Answer: Thank you for your inquiry. I have found ATEN documentation located here that specifies on page 2, under the first 'Highlight': 'Extend a computer's KVM console up to 100 meters(328 ft) by directly connecting the TX and RX units with a single Cat 5e cable. '
