4K HDMI KVM Over IP Extender Kit

KE8950

Discontinued
Replaced by: Aten KE8950R, and Aten KE8950T
Alternative options: Contact Us

Series: KE8950
  • KE8950
  • + Compare Family
Version: Kit including KE8950T Transmitter + KE8950R Receiver
Video Input: HDMI up to 4K UHD (@30Hz)
Power Method: Standard AC

Please Note: the kit version of this item is no longer available. Please order separate transmitters and receivers

Utilizing expertise in over IP KVM solutions, KE8950 are IP-based HDMI KVM extenders that allow access to a computer system from a remote USB console to anywhere over an intranet. The KE8950 KVM over IP Extenders support one HDMI monitor at each end, providing a greatly improved video display image with 4K x 2K video resolution (up to 3840 x 2160). KE8950 also support 1Gbps SFP fiber module expansions, enabling connections via fiber optic network to extend distances in transmission.

The 4K HDMI KVM over IP Extender consists of a Transmitter unit that connects to the computer and a Receiver unit that provides console access from a separate location. The computer is accessed from the remote console over a standard TCP/IP network via Cat 5e/6 cable that allows point-to-point, point-to-multipoint, multipoint-topoint, and multipoint-to-multipoint administration. KE8950 can be connected either directly to each other or via a high-speed network, over a copper-based or fiber-based LAN.

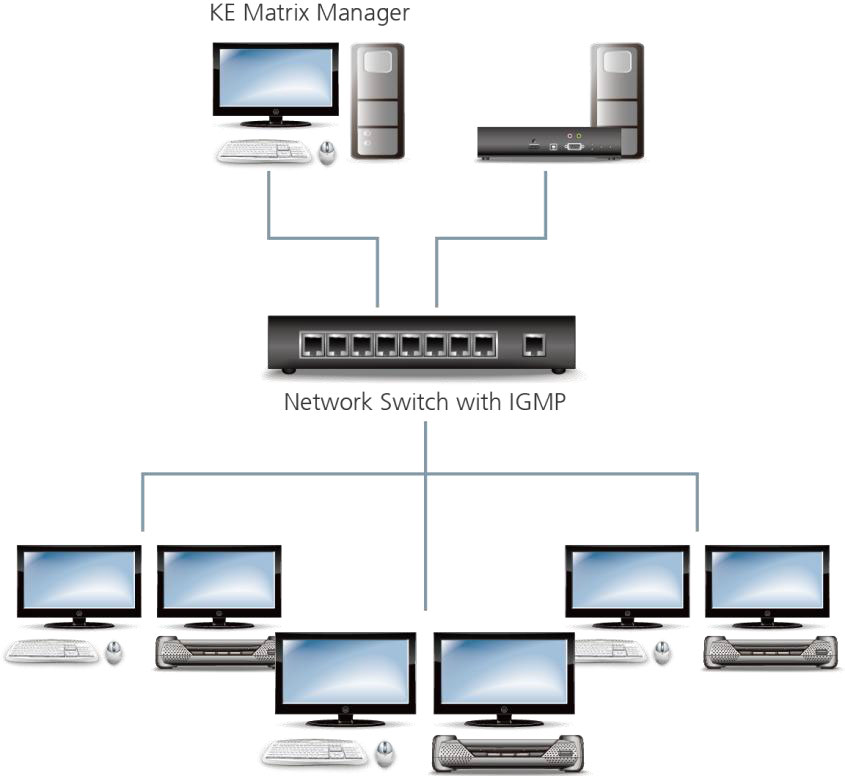

Implementing the KE Matrix Management Software (CCKM) with KE8950, IT administrators receive advanced features functioning as auto detection of all KE Series Extenders* on the same subnet for the sake of fast installation or configuration, username/password authentication and authorization, and the ability to define different types of connections that can be switched and shared. Security features also provide extra protection, supporting AES encryption for secured data transmissions, while RADIUS, LDAP, AD or remote user authentication provides an added layer of connection security; moreover, with an OSD, RS-232 support, and Auto MDIX, the KE series is the most cost-effective and convenient way to get a full digital extension from anywhere on the intranet.

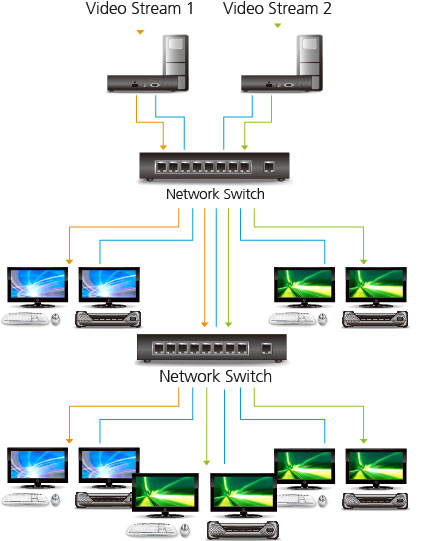

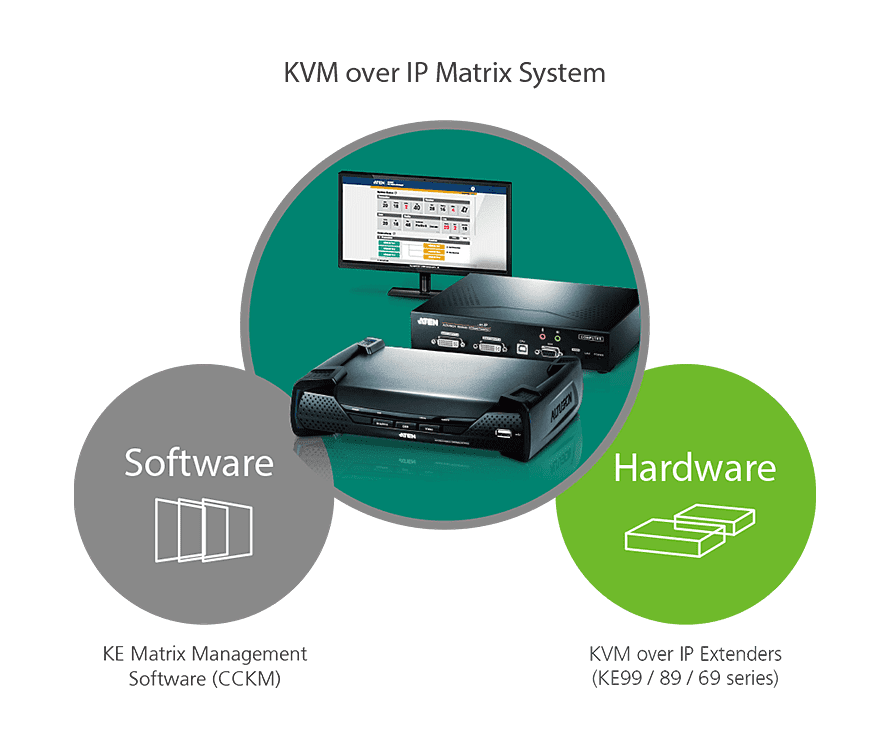

More flexible and efficient operations can be achieved in the KVM over IP Matrix System, which integrates KE Series Extenders with the CCKM management software, such as multi-display setups, video grouping, video profile scheduling and enhancements that give greater access to quick and easy control tools to configure KE devices over a network. Whether you're configuring, monitoring, administrating, controlling or extending computer access, the KVM over IP Matrix System is made adaptable, to fit an endless variety of working environments and workstation settings, as well as to provide solutions in broadcasting, control center, multimedia, manufacturing and many other industries where matrix extending is required.

Aten KE8950 Features

  • Remotely access computers on your KVM installation via intranet
  • Ultra High Definition (UHD) video quality - up to 3840 x 2160 @ 30Hz (4:4:4); 36-bit color depth
  • Compliant with HDMI 1.4a and HDCP 1.4
  • Dual console operation - control your system from both the transmitter and receiver USB keyboard, monitor, and mouse consoles
  • Support stereo speakers and stereo microphone
  • USB Virtual Media Support
  • RS-232 serial ports - allow you to connect to a serial terminal for configuration, and serial devices such as touchscreens and barcode scanners
  • OSD (On Screen Display) on the Receiver configures both units
  • Command Line Interface - administrators can control all KE devices via RS-232 or TCP/IP using a CLI or 3rd party application
  • Supports GUI operation
  • Remote login security
  • Built-in 8KV/15KV ESD protection and 1KV surge protection
  • Auto-MDIX - automatically detects cable type
  • Support direct connection via Gigabit Ethernet port or Fiber SFP module
  • Fanless design for silent operations that are energy efficient
  • Hot pluggable
  • Rack Mountable - Mounting options
  • Upgradeable firmware

Aten KE8950 Applications

Extender mode (One-to-One)

This is the simplest setup; using a single transmitter to receiver connection that extends a computer's distance from the keyboard, mouse and monitor. One-to-one setups can be directly connected by a Cat 5e/6 cable between two units - up to 100 meters (KE89xx models can also be connected via optical fiber cables for distances up to 10 kilometers).

You can also manage point-to-point connections, set up over a LAN with no distance limitations, by assigning each device an IP address.

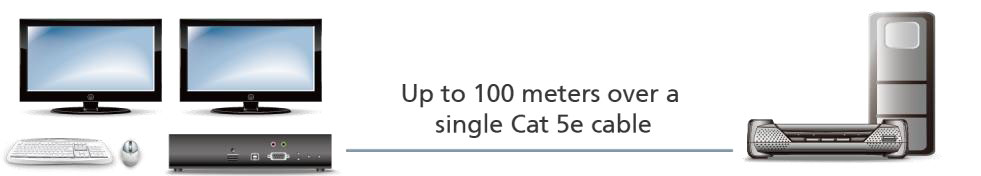

Aten KE8950 Point-To-Point Extension Application Diagram

* Supported via the KE Matrix Management Software (CCKM)


Aten KE8950 Package Includes

Aten KE8950 Back Rear

  • (1) KE8950T 4K HDMI Single Display KVM over IP Transmitter
  • (1) KE8950R 4K HDMI Single Display KVM over IP Receiver
  • (2) Power Adapter
  • (1) KVM Cable - HDMI, USB, Audio; 1.8m/6ft
  • (2) HDMI LockPro
  • (1) Mounting Kit for KE8950T
  • (1) Foot Pad Set
  • (1) User Instructions
  • (1) 3-Year Warranty

Aten KE8950 Resources

Aten KE8950 Downloads & Resources Aten KE8950 Datasheet (PDF)
Aten KE8950 Manual (PDF)
Aten KE8950 Quick Start (PDF)
Aten KE Matrix Implementation Guide (PDF)

Aten KE8950 Specifications

KE8950RKE8950T
Connectors
Virtual Media 2 x USB Type A Female (White)N/A
Console Ports2 x USB Type A Female (White)
1 x HDMI Female (Black)
1 x Mini Stereo Jack (Green)
1 x Mini Stereo Jack (Pink)
1 x DB-9 Male (Black)		2 x USB Type A Female (White)
1 x HDMI Female (Black)
1 x Mini Stereo Jack (Green)
1 x Mini Stereo Jack (Pink)
1 x DB-9 Male (Black)
KVM PortsN/A1 x USB Type B Female (White)
1 x HDMI Female (Black)
1 x Mini Stereo Jack (Green)
1 x Mini Stereo Jack (Pink)
1 x DB-9 Female (Black)
Power1 x DC Jack (Black)1 x DC Jack (Black)
LAN Ports1 x RJ-45 (Black)
1 x SFP Slot		1 x RJ-45 (Black)
1 x SFP Slot
Switches
OSD1x PushbuttonN/A
Video1x PushbuttonN/A
Graphics1x PushbuttonN/A
Reset1 x Semi-recessed Pushbutton1 x Semi-recessed Pushbutton
LEDs
10/100/1000 Mbps1 (10: Orange / 100: Orange & Green / 1000: Green)1 (10: Orange / 100: Orange & Green / 1000: Green)
Power1 (Blue)1 (Blue)
Local1 (Green)1 (Green)
Remote1 (Green)1 (Green)
Emulation
Keyboard & MouseUSBUSB
Power ConsumptionDC 5V, 5.65 WDC 5V, 7.22 W
Emulation
Video ResolutionUp to 3840 x 2160 @ 30HzUp to 3840 x 2160 @ 30Hz
Environmental
Operating Temperature0 - 50¡C0 - 50¡C
Storage Temperature-20 - 60¡C-20 - 60¡C
Humidity0-95% RH, Non-condensing0-95% RH, Non-condensing
Physical Properties
HousingMetalMetal
Weight2.71 lb (1.23 kg)2.42 lb (1.10 kg)
Dimensions (L x W x H)8.96 x 6.76 x 2.16 in.
(22.75 x 17.16 x 5.48 cm)		8.46 x 6.41 x 1.65 in.
(21.50 x 16.29 x 4.18 cm)
