Aten 16 Port Cat5 KVM Switch, 2 Users

KH2516

$725.00$636.13
Save $88.87

Discontinued
Replaced by: Aten KH2516a
Alternative options: Contact Us

The Aten KH2516 is an 16 port Cat 5 KVM Switch which is a dual channel device, allowing two operators to independently and simultaneous access up 16 directly connected computers, and up a maximum of 4096 servers through three level cascading.  Cascading is achieved via dedicated RJ-45 cascade ports and Cat 5e cabling. Both, first level consoles are able to access all 4096 computers in the installation, on the second tier, one console can access second and third level servers, and one console on the third level can access third level servers.  Security consists of two level access (Administrator and User) password / user name protected. The Administrator can set user access on a port-by-port basis, and as many as 96 user accounts can be created.  The KH2508 Cat5 KVM Switch supports mixed environments of Windows, MAC , Linux, Unix, Novell, and OS/2 and employs keyboard emulation for special Mac and Sun keys.

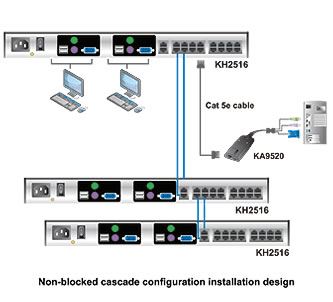

Aten KH2516 Cat5 KVM Switch Application Diagram
Aten KH2516 Cat5 KVM Switch Application Diagram

Aten KH2516 Features:

  • Two KVM consoles independently and simultaneously control up to 16 directly connected computers
  • Cascade up to 3 levels of switches to support up to 4096 computers
  • Superior video resolution - 1280 x 1024 @ 75 Hz up to 40 m; 1600 x 1200 @ 60 Hz up to 30 m
  • Multiplatform support: PC, Mac, Sun, and serial
  • Backup and restore configuration settings to an external flash drive to simplify installation for disaster recovery
  • No software to install - convenient computer selection via graphical on-screen display (OSD) menus
  • Supports two-level user access control (administrator and user)
  • Supports up to 96 user accounts
  • Configure port access rights for users on a port-by-port basis
  • Diversified port operation mode enables flexible computer management - Occupy, Exclusive and Share modes
  • OSD port list automatically expands when stations are added
  • Port names are automatically reconfigured when the station/computer sequence is changed
  • OSD screen automatically adjusts to resolution changes
  • Auto Scan mode enables continuous monitoring of user-selected computers
  • User activity log support
  • Console conversion - any type of KVM console can control any type of computer; mixed combinations
  • (PS/2 & USB) supported on both the KVM console and computer sides
  • USB / PS/2 keyboard and mouse emulation - computers boot even when the KVM console focus is elsewhere
  • Hot pluggable - add or remove components without having to power off the KVM switch
  • Free lifetime firmware upgrades
  • Effortlessly upgrade an entire installation - automatically upgrade all cascaded switches and adapter cables directly from the root station
  • Compact design - rack mounts in only 1U of rack space

Package Includes:

  • 1 KH2516 Cat 5 KVM Switch\
  • 1 Power Cord
  • 1 Grounding Wire
  • 1 Firmware Upgrade Cable
  • 1 Rack Mount Kit
  • 1 Foot Pad Set (4 pcs.)
  • 1 User Manual
  • 1 Quick Start Guide

Aten KH2516 Specification:

Mechanical
Height 1.7 in. (4.4 cm.)
Width 17 in. (43 cm.)
Depth 11.33 in. (28.78 cm.)
Weight 8.2 lbs. (3.7 kg.)
Environmental
Operating Temperature 32~122 F(0~50 C)
Storage Temperature -4~140F (-20~60C)
Humidity 0~80% RH, Noncondensing
Power
Per AC Power Inlet, 50/60Hz 100~240 VAC; 50/60 HZ; 1A
Number of Users 2
Computer Connections
Direct 16
Daisy Chain or Cascading 4096(via Cascade)
Port Selection OSD
Console Connectors
Keyboard 2 x 6-pin Mini-DIN Female(Purple); 2 x USB Type A Female
Monitor 2 x HDB-15 Female (Blue)
Mouse 2 x 6-pin Mini-DIN Female(Green); 2 x USB Type A Female
Flash ROM Upgrade 1 x RJ-11 Female (Black)
CPU Connectors
Keyboard, Mouse, and Monitor 16 x RJ-45 Female
Cascade 2 x RJ-45 Female
Connectors
Power 1 x 3-prong AC socket
Switches
Reset 1 x Semi-recessed pushbutton
F/W Upgrade 1 x Slide
Power 1 x Rocker
LEDs
On Line 16(Green)
Selected 16(Red)
Power On 1(Blue)
Emulation
Keyboard PS/2; USB(PC, Mac, Sun)
Mouse PS/2; USB(PC, Mac, Sun)
Video Resolution 1280x1024@75Hz(120 ft. Max.); 1600x1200@60Hz(100 ft. Max.) DDC2B
Scan Interval 1~255 Seconds
Question: Hi, what is maximum supported resoltion for short distances, i.e. does the switch manage full-hd or even up in distances of 10 to 20 ft?
Answer: Thank you for your inquiry. According to the manufacturer, the maximum resolution for this device is 1600x1200@60Hz; so unfortunately, it would not be able to support full-HD resolutions.

Question: Does KH2516a support cat6 capability?
Answer: Thank you for your inquiry,

It does; The Aten KH2516 has been designed to fully support both Cat 5e & Cat 6 cables.

Please let us know if there is anything else we can help you with!
