The Avocent MergePoint Unity MPU2032DAC-400 is a 32-port, 2 digital KVM path, with dual AC power supply.

The MergePoint Unity switch includes both KVM over IP and Serial Console Management technology in a single appliance. This combination provides IT administrators a complete and secure, remote management solution to access and control servers, networking equipment and other devices found in data centers and branch offices. Using both in-band and out-of-band tools together allows for a more fault-tolerant and complete, remote management solution. Remote, out-of-band connections complement traditional in-band/software tools to improve troubleshooting, shorten response times and help minimize unplanned downtime.

The MergePoint Unity appliances provide remote users the capabilities of a direct, physical connection to KVM, USB and serial ports of servers and other IT equipment from anywhere.

Avocent MergePoint MPU2032DAC Backview

Avocent MergePoint MPU2032DAC Backview

Avocent MergePoint MPU2032DAC Benefits

Avocent MPU2032DAC Features:

  • Advanced Remote Management - Provides secure and remote, out-of-band connections directly to the physical KVM, USB and serial ports to complement existing in-band software management tools
  • Meet Service Level Agreements and Minimize Downtime - Unified approach enables IT administrators a faster method to diagnose, reconfigure or restore equipment
  • Virtual Media - Enables USB media such as CD-ROMs, flash memory and external drives to be virtually attached to a remote server's USB port
  • CAC/Smart Card Support - Utilizing the virtual media capabilities remote or local users can map a USB-based smart card reader to the attached servers and authenticate using their smart cards
  • Enhanced Serial Adapters - Supports standard, remote SSH connections to the attached serial devices and includes electronic pin-out options for quick and easy connections to the console ports on Cisco network equipment
  • Power Device Port - Connect supported PDUs for integrated power control, measurement and reporting

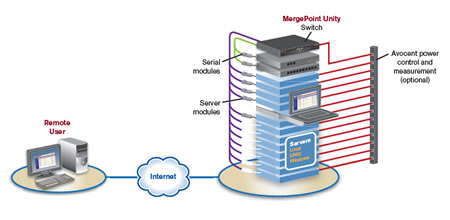

Avocent MergePoint Unity Application Diagram
Avocent MergePoint Unity Application Diagram


Avocent MPU2032DAC Specifications:

Mechanical
Height 1.72 in. (4.37 cm)
Width 17 in. (43.18 cm)
Depth13.38 in. (34 cm)
Weight8.6 lbs. (3.9 kg)
Environmental
Operating Temperature32° to 22°F (0° to 50°C)
Storage Temperature-4° to 158°F (-20° to 70°C
HumidityOperating: 20% to 80% relative humidity (non-condensing) Non-operating: 5% to 95% relative humidity, 38.7°C maximum wet bulb temperature
Power
Operating Voltage100 - 240 VAC
Power Frequency50-60 Hz auto-sensing
Input Power40W max
Power Consumption17W
BTU/hr57 BTU/hr
Supported Hardware
ComputersPS/2, Sun, USB and serial
Video640x480 @ 60 Hz; 800x600 @ 75 Hz; 960x700 @ 75 Hz;
1024x768 @ 75 Hz; 1280x1024 @ 75 Hz;

1600x1200 @ 75 Hz using the MPUIQ-VMC module
PeripheralsUSB keyboard and mouse; VGA video
Hardware Specifications
Number of Network Connections2
Type of Network Connections10/100/1000 Ethernet
Serial Port Type1 configuration port, 2 power control ports
Serial Port ConnectorRS-232, 8-pin modular
Standards
Approved AgencyUL, FCC, cUL, ICES-003, CE, VCCI, C-Tick

This product is the replacement for the MPU2032 and MPU2032DAC-001.

UPC / EAN Barcode icon
UPC 0636430089928
EAN 00636430089928
Question: How compatible are the dongles? For example, I have Dell OUF366 dongles now. I'm able to use these on both Dell & HP IP KVMs. Will they work with Avocent too? How industry standard are these? I would prefer not to purchase new dongles if I can reuse what I already have.
Answer: Thank you for your inquiry. Typically dongles are proprietary to the manufacturer and are not cross compatible; and while a number of Dell and HP KVM products are produced by Avocent, Avocent has several different series of dongle, depending on the switch.

Unfortunately, we do not know which (if any) specific Avocent model the Dell 0UF366 dongle maps to, so we could not recommend using the Dell dongle with the Avocent switch.

Question: Does the MPU2032DAC-001 come with rack mounting hardware ?
Answer: Thank you for your inquiry. The MPU2032DAC-001 will come with a rackmount bracket kit.

Question: Does the MPU2032DAC-001 come with power cords? If yes, what type of connector?
Answer: Thank you for your inquiry. The MergePoint Unity does come with power cords. The end that connects to the KVM Switch is a C13 type connection with a standard three prong 120V AC plug on the wall side.

Question: Is there a recommended Rack LCD Console for use with this KVM Switch?
Answer: Thank you for your inquiry,

I would recommend the Raloy RF117HD as a local Rack Console for the Avocent MPU2032DAC.

The RF117HD offers native VGA input, and supports the maximum local video resolution of 1920x1080. With enough depth, you can also rack mount the MPU2032DAC behind the Raloy unit (onto the rear rails) all into 1 RMU. The RF117HD offers a good balance between low price and high build quality.

Note, you can also optionally get a transparent USB port installed onto the unit - part number RF117HD-USB.

Question: I am looking for export classification (ECCN) for this part number MPU2032DAC-001
Answer: Thank you for reaching us to out for your inquiry,

The ECCN of MPU2032DAC-001 and MPU2032DAC-G01 is 5A992.

Question: Does AVRIQ-USB work on MPU2032DAC?
Answer: Thank you for your inquiry,

It does not. The AVRIQ-series was replaced by MPUIQ-series KVM dongles. With the added benefit of Virtual USB Media compatibility, the new MPUIQ-VMCHS would be the replacement model for the AVRIQ-USB*.

*Note, MPUIQ-VMCHS is not backwards compatible with all older AutoView range KVM switches that support the AVRIQ-USB. For reference on which Avocent KVM dongles work with which Avocent KVMs, you can find a Avocent KVM Dongle Compatibility table here.

Please let us know if there is anything else we can help you with!
