1U 17" Rack Mount Monitor Keyboard Drawer w/ 2-Console 8-Port IP KVM Switch

N117-IP802

$2,454.00$2,151.00
Save $303.00
FREE Shipping on orders over $100
The N117-IP802 is a 1U Rackmount Monitor Drawer with 17" LCD, keyboard with trackball or touch-pad mouse and integrated 2-console 8 port IP KVM Switch.

This model comes with either of the following keyboard options:

Keyboard Options

N117-IP802 Rackmount LCD Features:

  • 1U rackmount drawer with either 17" LCD
  • 104-key keyboard with either touchpad or trackball
  • Short depth design of 500mm (19.7") only
  • Enhanced aesthetics with molded front handle and two point lock
  • Slide rails with fixed positions to prevent drawer movement when typing
  • Multi lingual on screen display menu

Combo DB-15 IP KVM Switch Features & Benefits:

  • Combo DB-15 KVM with 8 ports in 1U
  • IP remote access across the world wide web
  • Cascade switches up to 8 levels & Mix switches between Cat6 & Combo DB-15 KVM
  • Mix PS/2, USB & SUN with Multi-Platform switch capability
  • Multi lingual on screen display menu
  • Advanced user profiles and configurable OSD hot key combinations
  • Dual power with failover

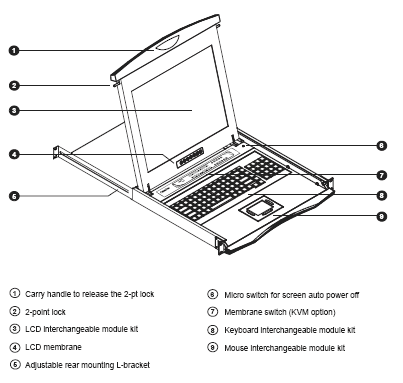

Structural Diagram

Specifications:

Mechanical
Height 1.73 in. (44 mm.)
Width 17.4 in. (442 mm.)
Depth 19.7 in. (500 mm.)
Package Dimensions 5.5 x 23.2 x 30.2 in.
(140 x 589 x 768 mm.)
Form Factor 1U rack mounting on slide-out rails
Net Weight 27.1 lbs. (12.3 kg.)
Gross Weight 36 lbs. (16.5 kg.)
Environmental
Operating Temperature 0° to 50°C Degree
Storage Temperature -5° to 65°C Degree
Relative Humidity 5~90%, non-condensing
Shock 10G acceleration (11ms duration)
Vibration 5~500Hz 1G RMS random vibration
Power
Input Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption Max. 40 Watt, Standby 5 Watt
LCD Display
Diagonal Size 17" TFT
Max. Resolution 1280 x 1024
Brightness (cd/m_) 250
Color Support 16.2 Mil.
Contrast Ratio (typ.) 1000:1
Viewing Angle (H/V) 160° x 165°
Display Area (mm) 338 x 270
Signal Input VGA
Plug & Play DDC EDID 1.3
Console Port (Combo) 4-in-1 DB-15 KVM connector for VGA / keyboard /mouse
Compatibility Mix PCs, SUN and Mac G3 / G4 Mac / iMac
Regulation Approval FCC, CE
