Cyberview 1U Rackmount Drawer w/ 19" Widescreen LCD & 2-User 16-Port KVM
N119-1602
Save $318.00
The N119-1602 is a 1U Rackmount Monitor Drawer with 19" LCD, keyboard with trackball or touch-pad mouse and integrated 2-console 16 port PS/2 KVM switch.
This model comes with either of the following keyboard options:
N119-1602 Rackmount LCD Features:
- 1U 19" LCD console drawer
- 104-key keyboard with either touchpad or trackball
- Short depth design of 500 mm (19.7") only
- Enhanced aesthetics with molded front handle and two point lock

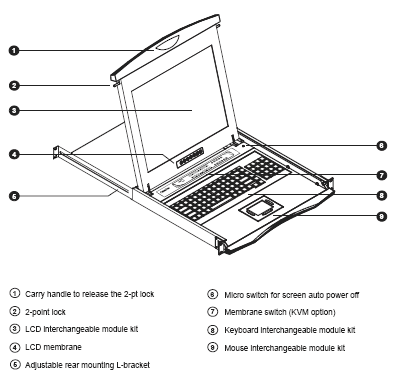

Structural Diagram
Specifications:
| Mechanical | |
| Height | 1.73 in. (44 mm.) |
| Width | 17.4 in. (442 mm.) |
| Depth | 19.7 in. (500 mm.) |
| Package Dimensions | 5.5 x 23.2 x 30.2 in. (140 x 589 x 768 mm.) |
| Form Factor | 1U rack mounting on slide-out rails |
| Net Weight | 27.5 lbs. (12.5 kg.) |
| Gross Weight | 37.4 lbs. (17 kg.) |
| Environmental | |
| Operating Temperature | 0° to 50°C Degree |
| Storage Temperature | -5° to 60°C Degree |
| Relative Humidity | 5~90%, non-condensing |
| Shock | 10G acceleration (11ms duration) |
| Vibration | 5~500Hz 1G RMS random vibration |
| Power | |
| Input | Auto-sensing 100 to 240VAC, 50 / 60Hz |
| Consumption | Max. 48 Watt, Standby 5 Watt |
| LCD Display | |
| Diagonal Size | 19" TFT |
| Max. Resolution | 1280 x 1024 |
| Brightness (cd/m_) | 250 |
| Color Support | 16.7 M |
| Contrast Ratio (typ.) | 1000:1 |
| Viewing Angle (H/V) | 170° x 160° |
| Display Area (mm) | 376 x 301 |
| Signal Input | VGA |
| Integrated KVM Switch | |
| KVM port | 8 |
| Connector | DB-15 combo connector |
| Connectivity | PS/2 3-in-1 KVM cable, up to 6,10 & 15 feet |
| Local Console | Nil for LCD console drawer version |
| Expansion | Up to 64 servers by 8-level cascade |
| Compatibility | Mix PCs, SUN and Mac G3 / G4 Mac / iMac |
