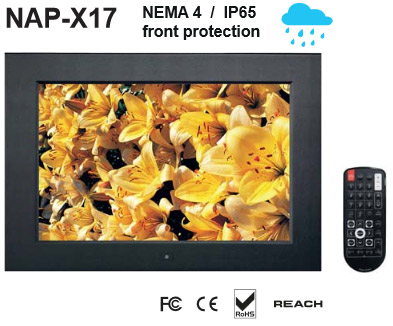

17" High Resolution LED LCD Display with NEMA 4 / IP65 Protection
NAP-X17
Save $177.00
Aspect Ratio: 16:10 (1920x1200)
Screen Size: 17 in
Model: NEMA4 / IP65 Protection
Display Features & Benefits
- 17" widescreen LCD with 1920 x 1200 native WUXGA Ultra high resolution
- Green LED-backlit panel technology
- Wall-mount, VESA mount
- PIP & Picture by Picture viewing efficiency
- 6mm (.24 in) aluminum front bezel with protective glass & water proof sealed gasket
- Rugged construction against external impact

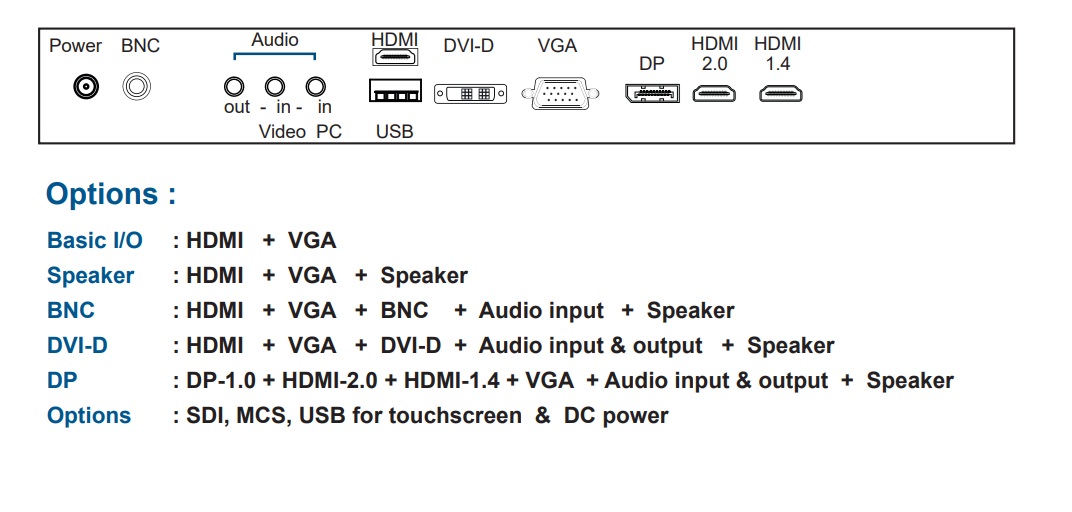

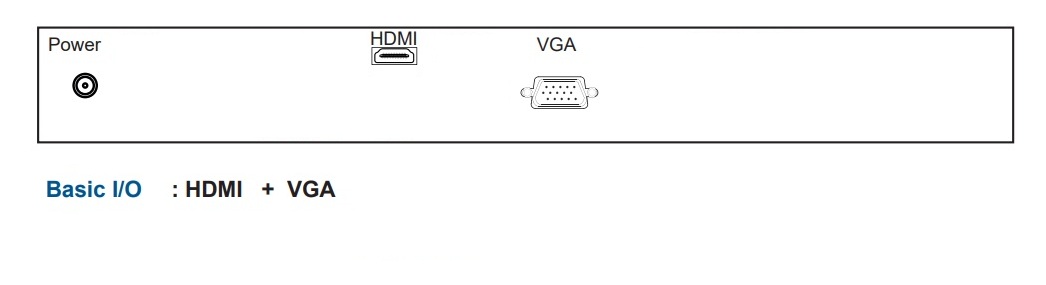

- Standard with HDMI, DVI-D, VGA, S-Video, BNC, Audio & remote controller
| Mechanical | |
| Height | 13 in. (33.1 cm.) |
| Width | 18.4 in. (46.9 cm.) |
| Depth | 2.2 in. (5.7 cm.) |
| Weight | 10.8 lbs. (4.9 kg.) |
| Package Dimensions (HxDxW) | 24.2 x 4.4 x 20.6 inch (615 x 113 x 523 mm) |
| Package Weight | 16.9 lbs. (7.7 kg.) |
| Environmental | |
| Operating Temperature | 0 to 55°C Degree |
| Storage Temperature | -5 to 60°C Degree |
| Relative Humidity | 5~90%, non-condensing |
| Shock | 10G acceleration (11ms duration) |
| Vibration | 5~500Hz 1G RMS random vibration |
| Power | Auto-sensing 100 to 240VAC, 50 / 60Hz |
| LCD Panel | |
| Display Size | 16.2" |
| Resolution | 1920 x 1200 |
| Brightness (cd/m2) | 300 |
| Colors | 16.7 M, 8-bit |
| Contrast Ratio (typ) | 800:1 |
| Viewing angle ( L/R/U/D ) | 89 / 89 / 89 / 89 |
| Active area (mm) | 343.8H x 214.9V |
| Signal Input | HDMI, DVI-D, VGA, S-Video, BNC Built-in Dual Stereo Speakers(2W x 2) |
